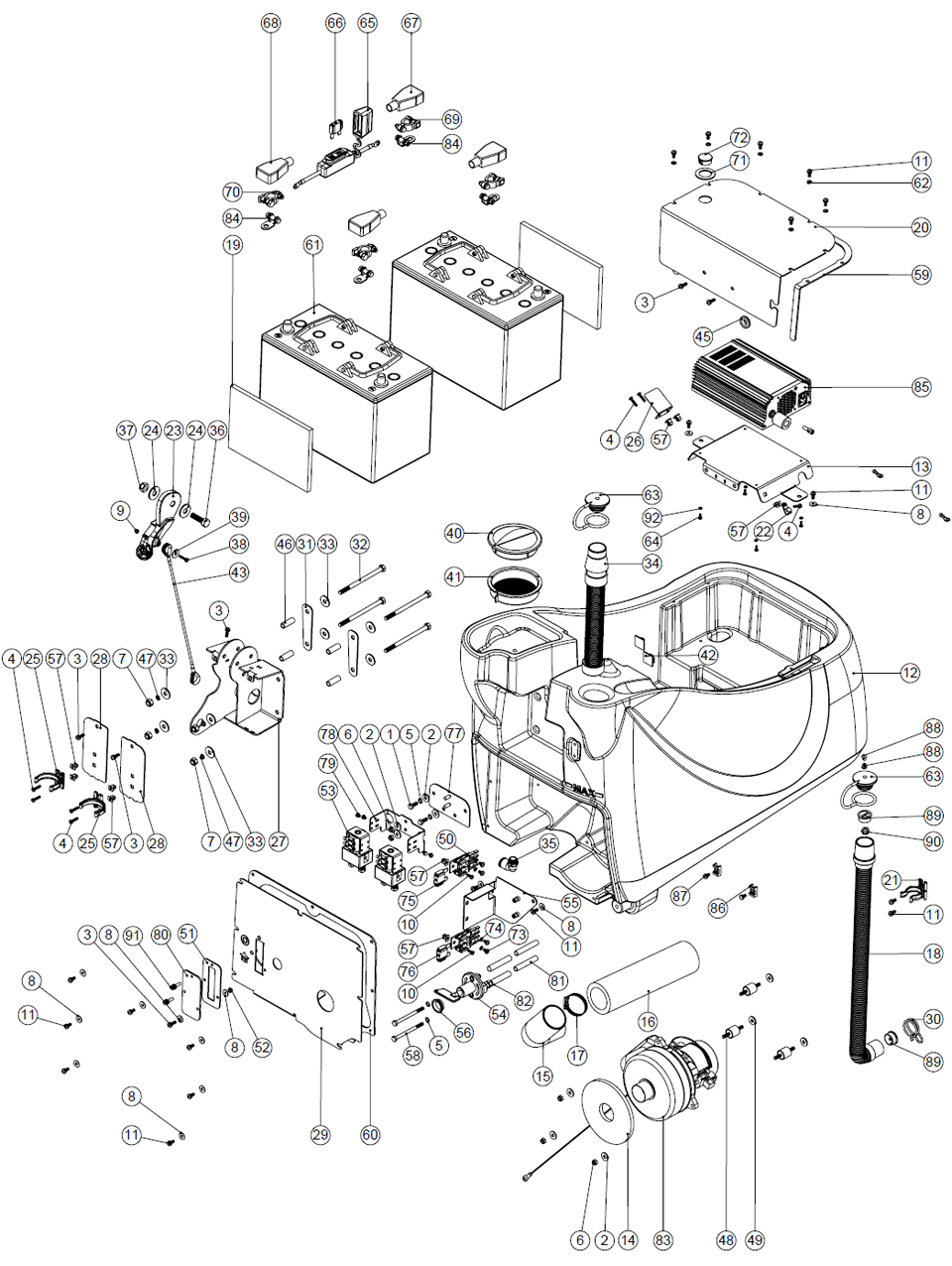

| Image | SKU# | Étiquette schéma | Description | Demander un prix |
|---|---|---|---|---|
|
NA219719000 | 1 | M6 x 16mm long hexagonal stainless steel head bolt | Demander un prix |
|
NA219647000 | 2 | M6 form g stainless steel washer | Demander un prix |
|
NA291132000 | 3 | M5 x 16mm long stainless steel pozi pan sems screw | Demander un prix |
|
NA219568000 | 4 | No8 x 3/4 inch long pozi pan stainless steel screw | Demander un prix |
|
NA902353000 | 5 | M6 external shakeproof washer stainless steel | Demander un prix |
|
NA219642000 | 6 | M6 stainless steel nylon insert nut | Demander un prix |
|
NA219639000 | 7 | M8 stainless steel nylon insert nut | Demander un prix |
|
NA219644000 | 8 | M5 form g stainless steel washer | Demander un prix |
|
NA219687000 | 9 | M4 stainless steel nylon insert nut | Demander un prix |
|
NA219569000 | 10 | No8.1/2 inch. Lg.pozi-pan.screw.stainless steel.plastite | Demander un prix |
|
NA291131000 | 11 | M5 x 12mm long stainless steel pozi pan sems screw | Demander un prix |
|
NA237741000 | 12 | Ttb.4055 bottom tank moulding hd (graphite) with logo | Demander un prix |
|
NA237742000 | 12 | Ttb.4055 bottom tank moulding hd (graphite) ep without logo | Demander un prix |
|
NA903537000 | 13 | Charger plate - painted silver | Demander un prix |
|
NA208477000 | 14 | Motor pad | Demander un prix |
|
NA208571000 | 15 | Dip moulded elbow | Demander un prix |
|
NA208306000 | 16 | Silencer foam tube | Demander un prix |
|
NA219529000 | 17 | Stainless steel hose clamp (45mm - 60mm) | Demander un prix |
|
NA213025000 | 18 | Dump hose | Demander un prix |
|
NA208645000 | 19 | Foam battery spacer | Demander un prix |
|
NA903536000 | 20 | Charger cover plate painted silver | Demander un prix |
|
NA901916000 | 21 | 28mm HOSE CLIP | Demander un prix |
|
NA219393000 | 22 | P clip | Demander un prix |
|
NA902324000 | 23 | Red squeegee lift handle | Demander un prix |
|
NA291124000 | 24 | M10 penny washer stainless steel | Demander un prix |
|
NA237754000 | 25 | 35-38mm hose clip | Demander un prix |
|
NA392356000 | 26 | Ttb nord charger mirror plate | Demander un prix |
|
NA903612000 | 27 | Tgb 3045 handle mount weld assembly z/pl | Demander un prix |
|
NA903539000 | 28 | Handle mount cover painted silver | Demander un prix |
|
NA903538000 | 29 | Tgb4045/55 back plate painted silver | Demander un prix |
|
NA902133000 | 30 | Spring wire clamp (ydnac-y8010356) | Demander un prix |
|
NA392449000 | 31 | Handle mount link plate paint silver | Demander un prix |
|
NA291126000 | 32 | M8 x 120 long hex bolt stainless steel | Demander un prix |
|
NA219716000 | 33 | M8 form g stainless steel washer | Demander un prix |
|
NA208960000 | 34 | Ttb/tt filling hose | Demander un prix |
|
NA901539000 | 35 | Elbow angle connector 3/8 parallel thread c/w o-ring to 12mm push in | Demander un prix |
|
NA219895000 | 36 | M10 x 35mm long hexagonal stainless steel screw | Demander un prix |
|
NA219897000 | 37 | M10 stainless steel nylon insert nut | Demander un prix |
|
NA219686000 | 38 | M4 x 20mm long stainless steel pozi pan machine screw | Demander un prix |
|
NA291118000 | 39 | M5 stainless steel washer 19mm od | Demander un prix |
|
NA903544000 | 40 | Filler cap lid (red) | Demander un prix |
|
NA903543000 | 41 | Clean tank inlet filter (red) | Demander un prix |
|
NA220403000 | 42 | Cable clip | Demander un prix |
|
NA208961000 | 43 | Ttb lifting wire | Demander un prix |
|
NA219558000 | 44 | M5 stainless steel nutsert | Demander un prix |
|
NA219735000 | 45 | Grommet | Demander un prix |
|
NA305046000 | 46 | 30mm pvc hose id 8.0mm x 11.0mm | Demander un prix |
|
NA219898000 | 47 | M8 single coil stainless steel washer | Demander un prix |
|
NA902006000 | 48 | Av mount male to male m6 x 18 (body ø20x20 - ref.p2004.020-020) | Demander un prix |
|
NA219008000 | 49 | M6 form g washer | Demander un prix |
|
NA230102000 | 50 | Fuse holder rated at 60 amps | Demander un prix |
|
NA903601000 | 51 | Fuse plate gasket | Demander un prix |
|
NA219633000 | 52 | M5 stainless steel nylon insert nut | Demander un prix |
|
NA230111000 | 53 | Contactor | Demander un prix |
|
NA903568000 | 55 | Isolator support bracket painted silver | Demander un prix |
|
NA902331000 | 56 | Qf pvc grommet (26mm x 22mm x 2mm) | Demander un prix |
|
NA900986000 | 57 | Nylon grommet nut (plastic insert to suit no 8 plastite screw) | Demander un prix |
|
NA219915000 | 58 | M6 x 80mm long stainless steel hexagonal head bolt | Demander un prix |
|
NA903541000 | 59 | Charger cover gasket | Demander un prix |
|
NA903540000 | 60 | Back plate gasket | Demander un prix |
|
NA220867000 | 61 | 12v traction block battery 80ah version | Demander un prix |
|
NA205112000 | 61 | 100 amp/hour replacement battery (c/w packaging for 230138 battery) 100ah version | Demander un prix |
|
NA219355000 | 62 | M5 form a stainless steel washer | Demander un prix |
|
NA903341000 | 63 | 32mm hose cap red (c/w 8mm hole) | Demander un prix |
|
NA902533000 | 64 | No6 x 3/8 inch long pozi pan self tap screw stainless steel | Demander un prix |
|
NA221047000 | 66 | 40 amp maxi fuse | Demander un prix |
|
NA208936000 | 67 | Black battery terminal cover (415n8v14) | Demander un prix |
|
NA208935000 | 68 | Red battery terminal cover (415n8v02) | Demander un prix |
|
NA220455000 | 69 | Battery terminal convertor 80ah version | Demander un prix |
|
NA220454000 | 70 | Positive battery terminal converter 80ah version | Demander un prix |
|
NA902328000 | 71 | Window plug gasket | Demander un prix |
|
NA206314000 | 72 | Window plug | Demander un prix |
|
NA219864000 | 73 | M5 x 8mm long pozi-pan screw z/pl | Demander un prix |
|
NA219861000 | 74 | M5 single coil stainless steel washer | Demander un prix |
|
NA230104000 | 75 | 30 amp maxi fuse | Demander un prix |
|
NA221091000 | 76 | 20 amp maxi fuse | Demander un prix |
|
NA903571000 | 77 | Contactor adapter bracket assy painted silver | Demander un prix |
|
NA903572000 | 78 | Contactor bracket (tgb) painted silver | Demander un prix |
|
NA219566000 | 79 | M4 x 6mm long pozi pan screw | Demander un prix |
|
NA903602000 | 80 | Fuse cover plate | Demander un prix |
|
NA903663000 | 81 | 10mm o/d x 1mm wall thickness s/steel tube cut to length (0.060) | Demander un prix |
|
NA903664000 | 82 | 60mm long x 10mm i/d black pvc sleeving | Demander un prix |
|
NA903473000 | 83 | 24v tangential discharge 2-stage vac motor assembly | Demander un prix |
|
NA902666000 | 84 | Battery connector (m6 - m10) 100ah version | Demander un prix |
|
NA903933000 | 85 | Charger assembly nord 230v 10a | Demander un prix |
|
NA903934000 | 85 | Charger assembly nord 120v 10a | Demander un prix |
|
NA220904000 | 86 | Cable clip platform | Demander un prix |
|
NA291135000 | 87 | M5 x 10mm long stainless steel pozi pan sems screw | Demander un prix |
|
NA904403000 | 88 | Barbed rivet black | Demander un prix |
|
NA904108000 | 89 | Float stop moulding | Demander un prix |
|
NA904109000 | 90 | Float moulding | Demander un prix |
|
NA904491000 | 91 | M5 x16mm SLOT KNURLED THUMB SCREW NYLON (WHITE) | Demander un prix |
|
NA904219000 | 92 | M3 stainless steel external shakeproof washer | Demander un prix |
