Autoscrubber 20" TTB 1120 #NA900690000

Spare Parts for:

Autoscrubber 20" TTB 1120
#NA900690000


Autoscrubber 20" with 100% long lasting gel battery system, adjustable handle, retractable brush deck and stainless steel frame

Parts Schemas List

Parts Schema
Schema Version
Serial Numbers 1605 and higher
Serial Numbers 1244 and higher
Serial Numbers between 1244 to 1541
Serial Numbers 1542 and higher
Serial Numbers between 1211 to 1440
Serial Numbers between 1441 to 1642
Serial Numbers 1312 and higher
Serial Numbers 1311 and higher

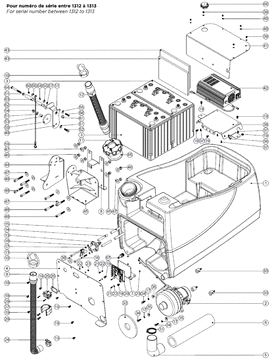

Bottom Tank / Batteries / Vac Motor & Charger Assembly Exploded (1312) (67)
Serial Numbers between 1312 to 1313
See theses spare parts

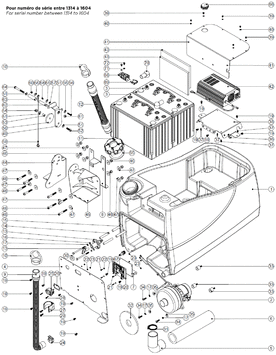

Bottom Tank / Batteries / Vac Motor & Charger Assembly Exploded (Blue Tank) (1314) (72)
Serial Numbers between 1313 to 1604
See theses spare parts

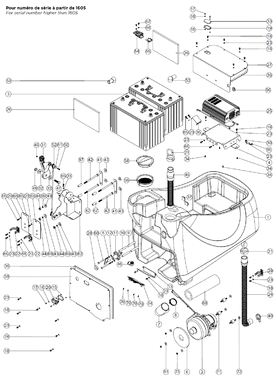

Bottom Tank Assembly (1605) (75)
Serial Numbers 1605 and higher
See theses spare parts

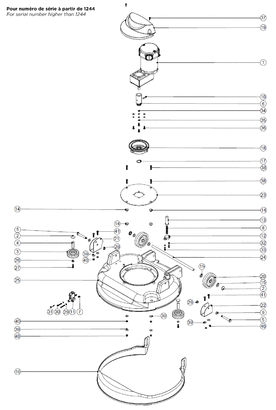

500mm Battery Deck Assembly Exploded Drawing (41)
Serial Numbers 1244 and higher
See theses spare parts

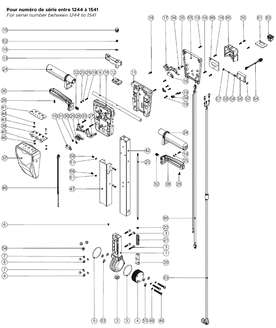

Handle Assembly (1244) (67)
Serial Numbers between 1244 to 1541
See theses spare parts

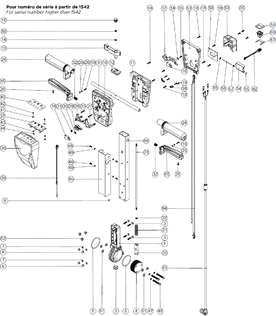

Handle Assembly (1542) (68)
Serial Numbers 1542 and higher
See theses spare parts

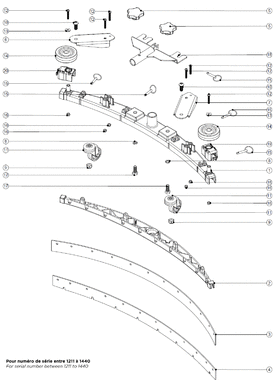

650mm & 750mm Aluminium Floor Tool (31)
Serial Numbers between 1211 to 1440
See theses spare parts

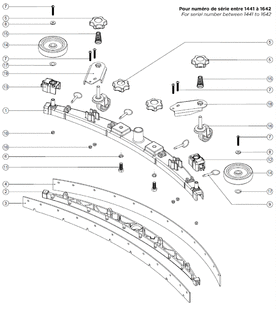

650 Twintec Aluminium Floor Tool (38mm Hose) (1441) (28)
Serial Numbers between 1441 to 1642
See theses spare parts

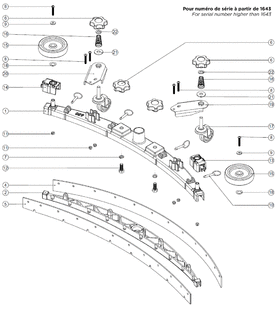

650 Twintec Aluminium Floor Tool (38mm hose, red trim, serilor blades) (1643) (23)
Serial Numbers 1643 and higher
See theses spare parts

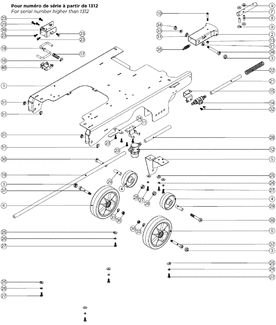

Chassis Assembly Exploded Drawing (42)
Serial Numbers 1312 and higher
See theses spare parts

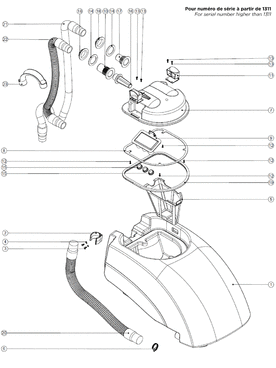

Machines Top Tank/Separator & Hoses Assy (29)
Serial Numbers 1311 and higher
See theses spare parts
