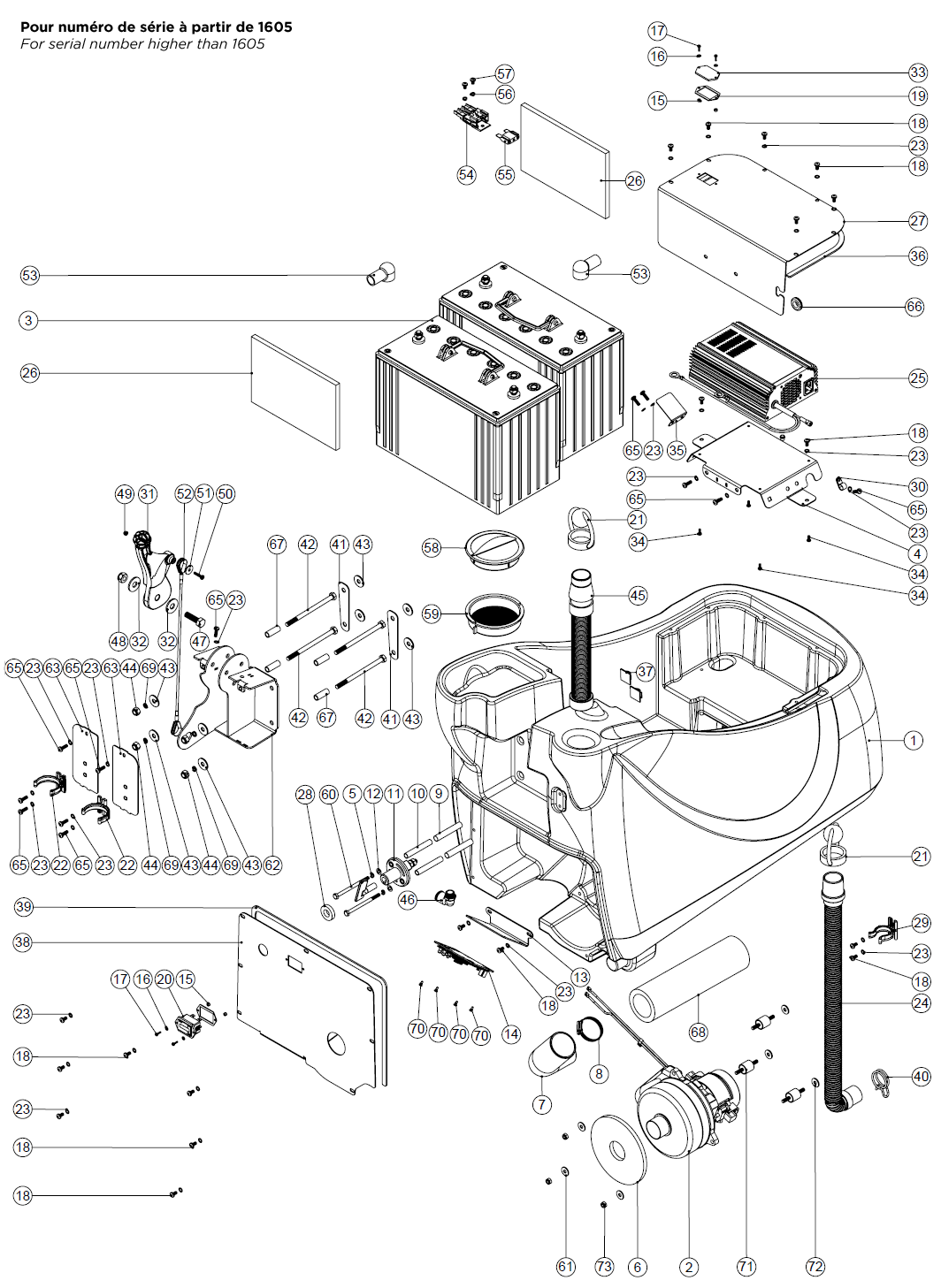

| Image | SKU# | Label on drawing | Description | Ask for a price |
|---|---|---|---|---|
|
NA237741000 | 1 | Ttb.4055 bottom tank moulding hd (graphite) with logo | Ask for a price |
|
NA237742000 | 1 | Ttb.4055 bottom tank moulding hd (graphite) ep without logo | Ask for a price |
|
NA321686000 | 2 | 24v tangential discharge 2-stage vac motor c/w 320mm & 415mm long wires | Ask for a price |
|
NA205112000 | 3 | 100 amp/hour replacement battery (c/w packaging for 230138 battery) 100ah version | Ask for a price |
|
NA304422000 | 4 | nutserted charger plate - painted grey | Ask for a price |
|
NA219718000 | 5 | Washer.m6.spring.stainless steel | Ask for a price |
|
NA208477000 | 6 | Motor pad | Ask for a price |
|
NA208571000 | 7 | Dip moulded elbow | Ask for a price |
|
NA219529000 | 8 | Stainless steel hose clamp (45mm - 60mm) | Ask for a price |
|
NA321633000 | 9 | 70mm long x 10mm i/d black pvc sleeving | Ask for a price |
|
NA391442000 | 10 | isolator key spacer | Ask for a price |
|
NA219560000 | 12 | M6 form b stainless steel washer | Ask for a price |
|
NA404113000 | 13 | power electronics mount bracket painted grey | Ask for a price |
|
NA310067000 | 14 | PCB Replacement Kit | Ask for a price |
|
NA219070000 | 15 | M3 nylon insert nut | Ask for a price |
|
NA219237000 | 16 | M3 form a washer | Ask for a price |
|
NA219031000 | 17 | m3 x 10mm long pozi pan screw | Ask for a price |
|
NA219668000 | 18 | M5 x 10mm long pozi pan stainless steel screw | Ask for a price |
|
NA208577000 | 19 | Hours meter gasket models with nord charger | Ask for a price |
|
NA208178000 | 20 | hours meter | Ask for a price |
|
NA206111000 | 21 | Hose closure | Ask for a price |
|
NA237754000 | 22 | 35-38mm hose clip | Ask for a price |
|
NA291084000 | 23 | Washer.m5.shakeproof.stainless steel | Ask for a price |
|
NA213025000 | 24 | Dump hose | Ask for a price |
|
NA321904000 | 25 | 230v/24v/10 amp hf nord charger (shorter sleeving & longer wires) | Ask for a price |
|
NA321903000 | 25 | 110-120v/24v/10 amp hf nord charger (shorter sleeving & longer wires) | Ask for a price |
|
NA208645000 | 26 | Foam battery spacer | Ask for a price |
|
NA404117000 | 27 | charger cover plate painted grey | Ask for a price |
|
NA202116000 | 28 | isolator washer gasket | Ask for a price |
|
NA901916000 | 29 | 28mm HOSE CLIP | Ask for a price |
|
NA219393000 | 30 | P clip | Ask for a price |
|
NA237691000 | 31 | Squeegee lift handle | Ask for a price |
|
NA291124000 | 32 | M10 penny washer stainless steel | Ask for a price |
|
NA392357000 | 33 | Ttb charger viewing glass models with nord charger | Ask for a price |
|
NA219301000 | 34 | No6 X 3/8 INCH LONG POZI PAN SELF TAP SCREW MODELS WITH NORD CHARGER | Ask for a price |
|
NA392356000 | 35 | Ttb nord charger mirror plate | Ask for a price |
|
NA212052000 | 36 | 3mm thick x 9mm wide inseal | Ask for a price |
|
NA220403000 | 37 | Cable clip | Ask for a price |
|
NA392448000 | 38 | Ttb back plate paint grey | Ask for a price |
|
|
NA212052000 | 39 | 3mm thick x 9mm wide inseal | Ask for a price |
|
NA902133000 | 40 | Spring wire clamp (ydnac-y8010356) | Ask for a price |
|
NA392449000 | 41 | Handle mount link plate paint silver | Ask for a price |
|
NA291126000 | 42 | M8 x 120 long hex bolt stainless steel | Ask for a price |
|
NA219716000 | 43 | M8 form g stainless steel washer | Ask for a price |
|
NA219639000 | 44 | M8 stainless steel nylon insert nut | Ask for a price |
|
NA208960000 | 45 | Ttb/tt filling hose | Ask for a price |
|
NA901539000 | 46 | Elbow angle connector 3/8 parallel thread c/w o-ring to 12mm push in | Ask for a price |
|
NA219895000 | 47 | M10 x 35mm long hexagonal stainless steel screw | Ask for a price |
|
NA219897000 | 48 | M10 stainless steel nylon insert nut | Ask for a price |
|
NA219687000 | 49 | M4 stainless steel nylon insert nut | Ask for a price |
|
NA219686000 | 50 | M4 x 20mm long stainless steel pozi pan machine screw | Ask for a price |
|
NA291118000 | 51 | M5 stainless steel washer 19mm od | Ask for a price |
|
NA208961000 | 52 | Ttb lifting wire | Ask for a price |
|
NA206861000 | 53 | Red pvc terminal cap | Ask for a price |
|
NA230102000 | 54 | Fuse holder rated at 60 amps | Ask for a price |
|
NA221107000 | 55 | 50 amp maxi fuse (red) | Ask for a price |
|
NA219648000 | 56 | Washer.m5.single coil.z/pl | Ask for a price |
|
NA219864000 | 57 | M5 x 8mm long pozi-pan screw z/pl | Ask for a price |
|
NA237268000 | 58 | Filler cap lid | Ask for a price |
|
NA207128000 | 59 | Clean tank inlet filter | Ask for a price |
|
NA291134000 | 60 | M6 x 85mm long stainless steel hexagonal head bolt | Ask for a price |
|
NA219647000 | 61 | M6 form g stainless steel washer | Ask for a price |
|
NA404216000 | 62 | Handle mount weld assembly - z/pl | Ask for a price |
|
NA392445000 | 63 | Handle mount cover paint grey | Ask for a price |
|
NA219558000 | 64 | M5 stainless steel nutsert | Ask for a price |
|
NA219547000 | 65 | M5 x 16mm long pozi pan stainless steel screw | Ask for a price |
|
NA219735000 | 66 | Grommet | Ask for a price |
|
NA305046000 | 67 | 30mm pvc hose id 8.0mm x 11.0mm | Ask for a price |
|
NA208306000 | 68 | Silencer foam tube | Ask for a price |
|
NA219898000 | 69 | M8 single coil stainless steel washer | Ask for a price |
|
NA208963000 | 70 | Snap black rivet (ref sr-3055b) | Ask for a price |
|
NA902006000 | 71 | Av mount male to male m6 x 18 (body ø20x20 - ref.p2004.020-020) | Ask for a price |
|
NA219008000 | 72 | M6 form g washer | Ask for a price |
|
NA219642000 | 73 | M6 stainless steel nylon insert nut | Ask for a price |
