Autoscrubber 20" TTB 1120 #NA900690000

Spare Parts for:

Autoscrubber 20" TTB 1120
#NA900690000


Autoscrubber 20" with 100% long lasting gel battery system, adjustable handle, retractable brush deck and stainless steel frame
Parts Schema

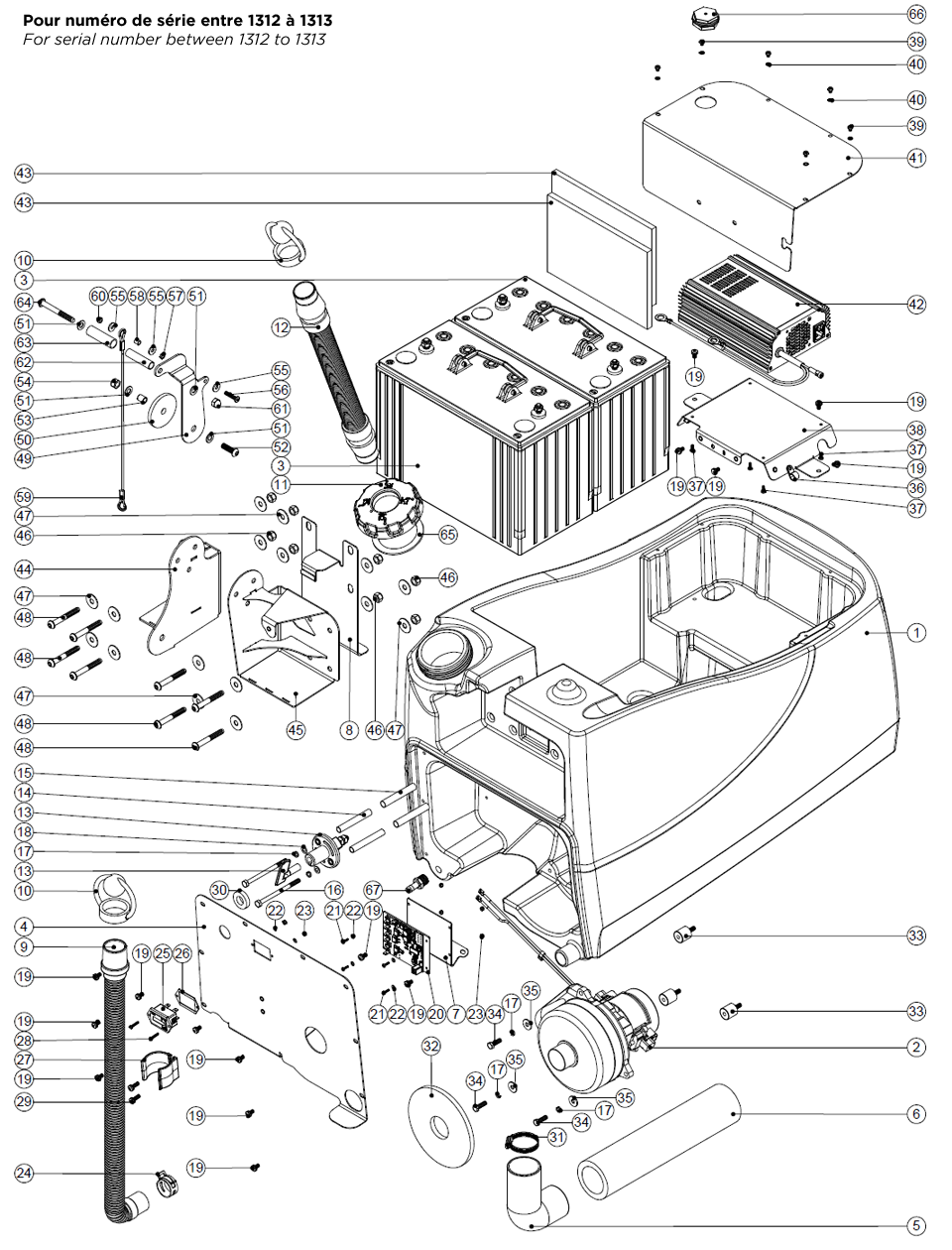

Bottom Tank / Batteries / Vac Motor & Charger Assembly Exploded (1312) Serial Numbers between 1312 to 1313
Image SKU# Label on drawing Description Ask for a price
NA237398000 1 ttb/4045/4055 blue bottom tank moulding Ask for a price
NA321686000 2 24v tangential discharge 2-stage vac motor c/w 320mm & 415mm long wires Ask for a price
NA304423000 4 nutserted rear bay cover plate - painted grey Ask for a price
NA208571000 5 Dip moulded elbow Ask for a price
NA208306000 6 Silencer foam tube Ask for a price
NA404113000 7 power electronics mount bracket painted grey Ask for a price
NA404167000 8 wire cover plate painted grey Ask for a price
NA213025000 9 Dump hose Ask for a price
NA206111000 10 Hose closure Ask for a price
NA237174000 11 Filler cap with filler hose hole Ask for a price
NA206842000 12 420mm long black stretch hose c/w cuffs Ask for a price
NA391442000 14 isolator key spacer Ask for a price
NA321633000 15 70mm long x 10mm i/d black pvc sleeving Ask for a price
NA219534000 16 m6 x 90mm long hex bolt Ask for a price
NA219718000 17 Washer.m6.spring.stainless steel Ask for a price
NA219007000 18 M6 form b washer Ask for a price
NA219047000 19 M5 x 10mm long pozi pan sems screw Ask for a price
NA310067000 20 PCB Replacement Kit Ask for a price
NA219031000 21 m3 x 10mm long pozi pan screw Ask for a price
NA219237000 22 M3 form a washer Ask for a price
NA219070000 23 M3 nylon insert nut Ask for a price
NA208471000 24 Constant tension clip Ask for a price
NA208178000 25 hours meter Ask for a price
NA208577000 26 Hours meter gasket models with nord charger Ask for a price
NA237382000 27 Acetal hose clip moulding Ask for a price
NA219500000 28 m3 x 16mm long stainless steel slot screw Ask for a price
NA219045000 29 M5 x 16mm long pozi pan sems screw Ask for a price
NA202116000 30 isolator washer gasket Ask for a price
NA219529000 31 Stainless steel hose clamp (45mm - 60mm) Ask for a price
NA208477000 32 Motor pad Ask for a price
NA208576000 33 av mount male to female m6 Ask for a price
NA219455000 34 m6 x 20mm long hex head screw Ask for a price
NA219008000 35 M6 form g washer Ask for a price
NA219393000 36 P clip Ask for a price
NA219301000 37 No6 X 3/8 INCH LONG POZI PAN SELF TAP SCREW MODELS WITH NORD CHARGER Ask for a price
NA304422000 38 nutserted charger plate - painted grey Ask for a price
NA219697000 39 m4 x 8mm long pozi pan stainless steel screw Ask for a price
NA219015000 40 M4 shakeproof washer traction machines only Ask for a price
NA404117000 41 charger cover plate painted grey Ask for a price
NA321904000 42 230v/24v/10 amp hf nord charger (shorter sleeving & longer wires) Ask for a price
NA208645000 43 Foam battery spacer Ask for a price
NA304425000 44 Nutserted handle mount (lh) weld assembly z/pl Ask for a price
NA304424000 45 Nutserted handle mount (rh) weld assembly z/pl Ask for a price
NA219078000 46 M8 nylon insert nut Ask for a price
NA221154000 47 M8 form c washer Ask for a price
NA219917000 48 M8 x 60mm lg z/pl socket button head bolt Ask for a price
NA392160000 50 Squeegee lift washer Ask for a price
NA219578000 51 M8 form a stainless steel washer Ask for a price
NA219555000 52 M8 x 25mm long socket bolt Ask for a price
NA208650000 53 Floor tool lift bush Ask for a price
NA219639000 54 M8 stainless steel nylon insert nut Ask for a price
NA219005000 55 M5 form g washer Ask for a price
NA219057000 56 m5 x 25mm long pozi pan screw Ask for a price
NA219721000 57 M5 stainless steel full nut Ask for a price
NA219508000 58 Spirol spacer Ask for a price
NA208573000 59 360mm long lifting link wire Ask for a price
NA219633000 60 M5 stainless steel nylon insert nut Ask for a price
NA219077000 61 M8 domenut Ask for a price
NA391093000 62 52mm long vac motor spacer Ask for a price
NA391131000 63 53mm long black nylon tube Ask for a price
NA219806000 64 M8 x 70mm long socket button head bolt Ask for a price
NA208564000 65 Filler cap sealing ring Ask for a price
NA208659000 66 viewing glass c/w nut & washer Ask for a price
NA219389000 67 3/8 bspp male c/w undercut & o ring to 10.5mm hosetail Ask for a price
