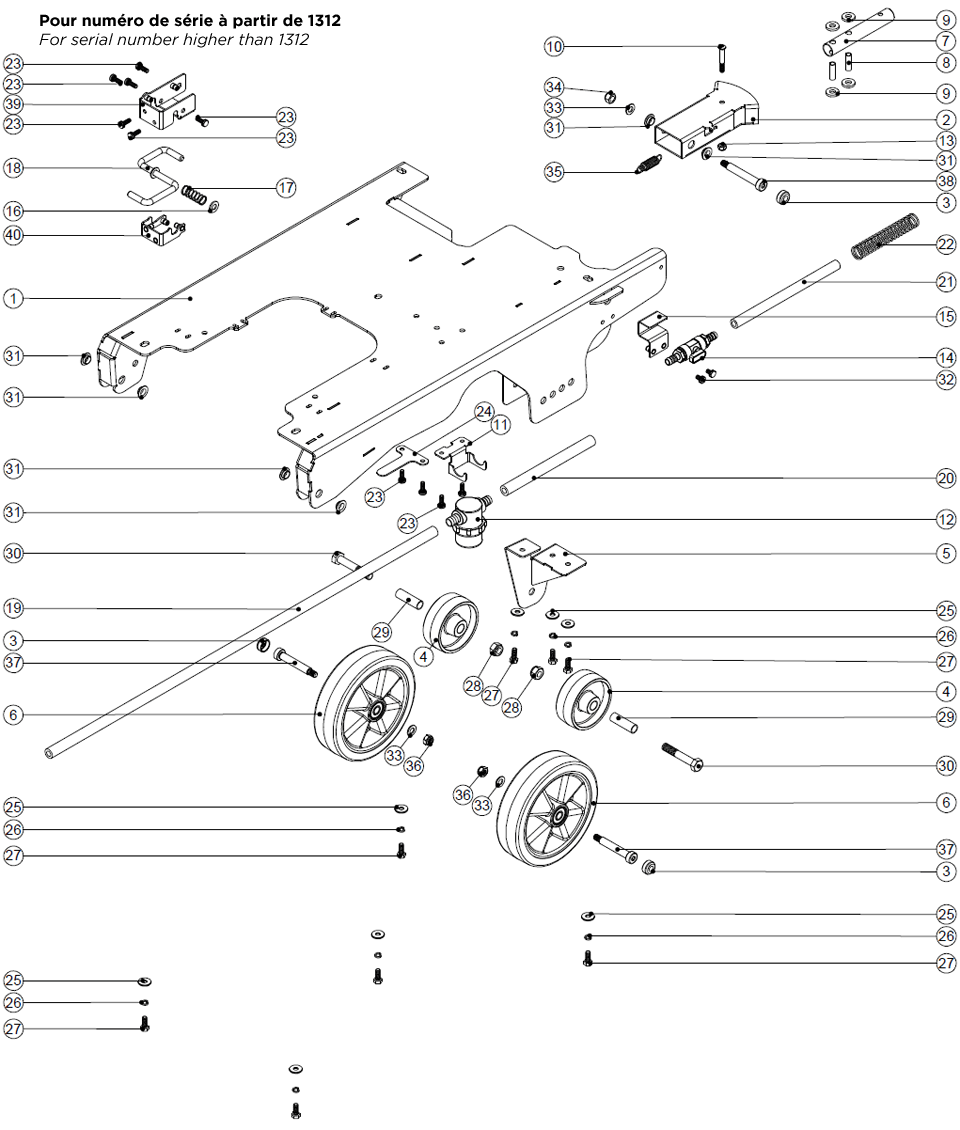

| Image | SKU# | Label on drawing | Description | Ask for a price |
|---|---|---|---|---|
|
NA304328000 | 1 | Ttb4045 / ttb4455 stainless steel chassis welded assembly ttb machines | Ask for a price |
|
NA304383000 | 1 | Etb mild steel chassis welded assemblypainted grey etb machines | Ask for a price |
|
NA304359000 | 2 | Tt/ttb/4045/4055 squeegee mount weld assembly | Ask for a price |
|
NA237632000 | 3 | Shoulder bolt cover | Ask for a price |
|
NA206713000 | 4 | 80mm diameter black wheel | Ask for a price |
|
NA304360000 | 5 | Transport wheel bracket weld assembly ttb machines | Ask for a price |
|
NA404152000 | 5 | Mild steel painted grey transport wheel bracket weld assembly etb machines | Ask for a price |
|
NA208638000 | 6 | 160mm WHEEL WITH POLYURETHENE TIRE | Ask for a price |
|
NA304356000 | 7 | Floor tool pivot tube | Ask for a price |
|
NA206954000 | 8 | Spiro spacer | Ask for a price |
|
NA206964000 | 9 | Slide nylon spacer | Ask for a price |
|
NA219807000 | 10 | M6 x 40mm long socket button head bolt | Ask for a price |
|
NA392199000 | 11 | Filter bracket | Ask for a price |
|
NA208761000 | 14 | 10mm hose tail to 10mm hose tail ball valve assembly | Ask for a price |
|
NA304453000 | 15 | Nutserted 10mm tap bracket | Ask for a price |
|
NA219010000 | 16 | M8 form a washer | Ask for a price |
|
NA208578000 | 17 | Deck lock spring | Ask for a price |
|
NA304358000 | 18 | Deck lock bar weld assembly | Ask for a price |
|
NA391453000 | 19 | Silicon tube 750mm long x 8mm i/d x 3.2mm wall section | Ask for a price |
|
NA391452000 | 20 | Silicon tube 8mm i/d x 3.2mm wall section (cut 190mm) | Ask for a price |
|
NA391481000 | 21 | 200mm long braided pvc hose | Ask for a price |
|
NA219333000 | 22 | Compression spring | Ask for a price |
|
NA219045000 | 23 | M5 x 16mm long pozi pan sems screw | Ask for a price |
|
NA321902000 | 24 | Silencer clamp | Ask for a price |
|
NA219647000 | 25 | M6 form g stainless steel washer | Ask for a price |
|
NA219718000 | 26 | Washer.m6.spring.stainless steel | Ask for a price |
|
NA219719000 | 27 | M6 x 16mm long hexagonal stainless steel head bolt | Ask for a price |
|
NA219649000 | 28 | M10 nylon insert nut | Ask for a price |
|
NA391440000 | 29 | 1/2 inch x 18g x 41mm long stainless steel spacer tube | Ask for a price |
|
NA219894000 | 30 | M10 x 60mm long hexagonal stainless steel bolt | Ask for a price |
|
NA208312000 | 31 | Igus bearing (gfm 101205) | Ask for a price |
|
NA219047000 | 32 | M5 x 10mm long pozi pan sems screw | Ask for a price |
|
NA219578000 | 33 | M8 form a stainless steel washer | Ask for a price |
|
NA219639000 | 34 | M8 stainless steel nylon insert nut | Ask for a price |
|
NA208619000 | 35 | Floor tool spring | Ask for a price |
|
NA219857000 | 36 | M8 nylon insert half nut | Ask for a price |
|
NA291057000 | 37 | M8 x 10 x 55mm long hex socket shoulder bolt | Ask for a price |
|
NA208574000 | 38 | M8 x 10 x 60mm long hex socket shoulder bolt | Ask for a price |
|
NA304409000 | 39 | Nutserted deck lock bar guide | Ask for a price |
|
NA304411000 | 40 | Nutserted lock bar clamp | Ask for a price |
