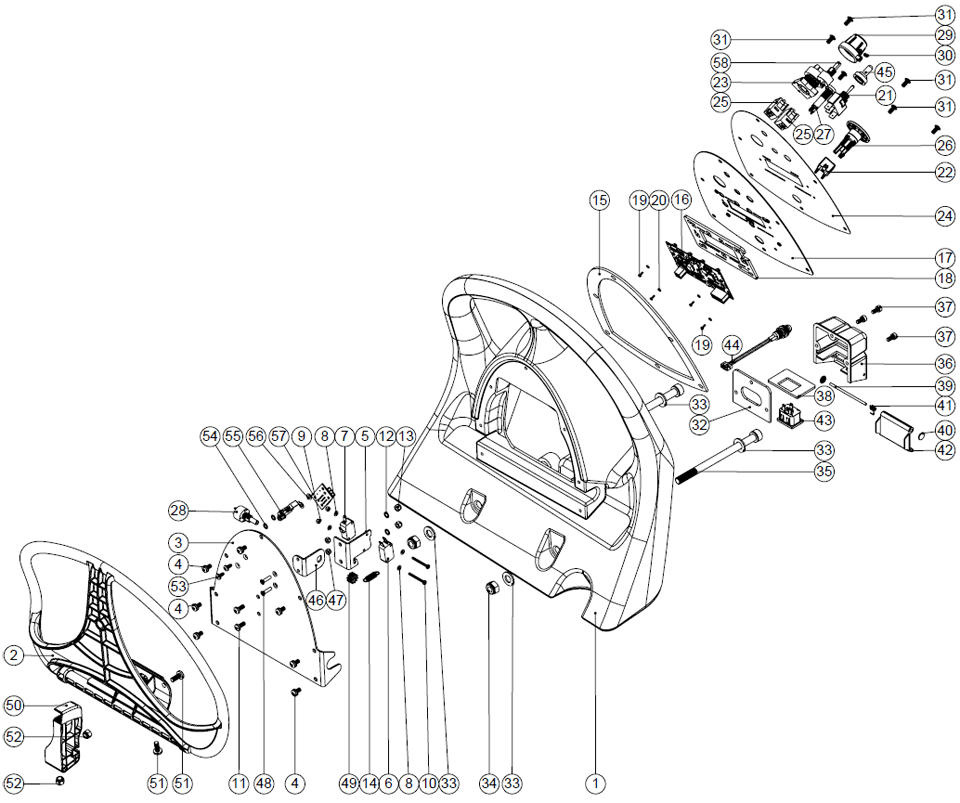

| Image | SKU# | Label on drawing | Description | Ask for a price |
|---|---|---|---|---|
|
NA237113000 | 1 | Handle moulding | Ask for a price |
|
NA237295000 | 2 | Blue handle trigger moulding ttb 6055/100 & ttb1620 | Ask for a price |
|
NA404095000 | 3 | Handle back plate (painted grey) | Ask for a price |
|
NA219047000 | 4 | M5 x 10mm long pozi pan sems screw | Ask for a price |
|
NA392055000 | 5 | Handle micro switch bracket | Ask for a price |
|
NA229483000 | 6 | Snap action switch | Ask for a price |
|
NA208391000 | 7 | Snap action switch | Ask for a price |
|
NA219237000 | 8 | M3 form a washer | Ask for a price |
|
NA219070000 | 9 | M3 nylon insert nut | Ask for a price |
|
NA219939000 | 10 | M3.20mm lg.slot.screw.stainless steel ttb 6055/100 & ttb1620 | Ask for a price |
|
NA219049000 | 11 | M5 x 12mm long pozi pan screw | Ask for a price |
|
NA219016000 | 12 | M5 shakeproof washer | Ask for a price |
|
NA219076000 | 13 | M5 nylon insert nut | Ask for a price |
|
NA208356000 | 14 | Trigger spring | Ask for a price |
|
NA208336000 | 15 | Control panel punched gasket | Ask for a price |
|
NA208705000 | 16 | Ttv lcd display without detergent ttb 6055/100t & ttb 6055/100 & ttb1620 | Ask for a price |
|
NA304431000 | 17 | Ttb6055 control panel c/w clinch nuts ttb 6055/100 & ttb1620 | Ask for a price |
|
NA392044000 | 18 | Display pcb plastic cover plate | Ask for a price |
|
NA219978000 | 19 | M2 x 6mm long pozi pan screw | Ask for a price |
|
NA219977000 | 20 | M2 nylon washer | Ask for a price |
|
NA206786000 | 21 | Switch traction machines only | Ask for a price |
|
NA208458000 | 22 | Switch block (double pole / 2 position) (a0152b) traction machines only | Ask for a price |
|
NA208138000 | 23 | Key switch (2 position) | Ask for a price |
|
NA208712000 | 24 | Ttb6055 non traction handle display overlay ttb 6055/100 & ttb1620 | Ask for a price |
|
NA208137000 | 25 | Key switch actuator block | Ask for a price |
|
NA208357000 | 26 | Emergency stop 40mm diameter button traction machines only | Ask for a price |
|
NA270291000 | 27 | Green led indicator 2v c/w 2.2k resistor traction machines only | Ask for a price |
|
NA270294000 | 28 | POTENTIOMETER TYPE Pe30 22k OHMS 20% 3W (C/W SLOT ON SHAFT END) TRACTION MACHINES ONLY | Ask for a price |
|
NA329363000 | 29 | Speed adjustment knob c/w insert traction machines only | Ask for a price |
|
NA219744000 | 30 | M4 x 6mm long blackodised grub screw traction machines only | Ask for a price |
|
NA291004000 | 31 | M5 x 10mm long stainless steel button head screw | Ask for a price |
|
NA202105000 | 32 | Socket cover sealing gasket | Ask for a price |
|
NA219012000 | 33 | M10 form e washer | Ask for a price |
|
NA219649000 | 34 | M10 nylon insert nut | Ask for a price |
|
NA291001000 | 35 | M10 x 150mm long socket cap screw blackodised | Ask for a price |
|
NA329355000 | 36 | Processed socket cover moulding with large hole standard machine | Ask for a price |
|
NA303629000 | 36 | Socket cover moulding c/w large moulded hole (with processed holes) flame retardent csa spec | Ask for a price |
|
NA291013000 | 37 | M5 x 10mm long socket cap screw | Ask for a price |
|
NA329297000 | 38 | Socket mounting plate | Ask for a price |
|
NA390979000 | 39 | 72mm long x 3mm diameter stainless steel bar | Ask for a price |
|
NA219832000 | 40 | 3mm diameter starlock | Ask for a price |
|
NA219819000 | 41 | Torsion spring | Ask for a price |
|
NA227781000 | 42 | Flap moulding | Ask for a price |
|
NA220391000 | 43 | 3 pin appliance socket | Ask for a price |
|
NA270193000 | 44 | Neon indicator red lens 230v c/w link wires traction machines only | Ask for a price |
|
NA270195000 | 44 | Neon indicator red lens 120v c/w link wires traction machines only | Ask for a price |
|
NA206785000 | 45 | Switch cover c/w nut traction machines only | Ask for a price |
|
NA392201000 | 46 | Potentiometer bracket traction machines only | Ask for a price |
|
NA219083000 | 47 | M4 nylon insert nut | Ask for a price |
|
NA219407000 | 48 | M4 x 16mm long pozi pan countersunk screw | Ask for a price |
|
NA237383000 | 49 | Potentiometer gear traction machines only | Ask for a price |
|
NA237384000 | 50 | Trigger rack moulding traction machines only | Ask for a price |
|
NA219646000 | 51 | M6 x 16mm long pozi pan stainless steel screw traction machines only | Ask for a price |
|
NA219088000 | 52 | M6 nylon insert nut | Ask for a price |
|
NA219840000 | 53 | No.6 x 3/8 inch long pozi pan countersunk s/tap screw(stainless steel) traction machines only | Ask for a price |
|
NA219015000 | 54 | M4 shakeproof washer traction machines only | Ask for a price |
|
NA220595000 | 55 | Pcb quick release stand off traction machines only | Ask for a price |
|
NA219206000 | 56 | M4 form a washer | Ask for a price |
|
NA208822000 | 57 | Interconnect pcb (speed control) traction machines only | Ask for a price |
|
NA270316000 | 58 | Potentiometer type pe30 22k ohms 20% 3w (no slot in shaft end) traction machines only | Ask for a price |
