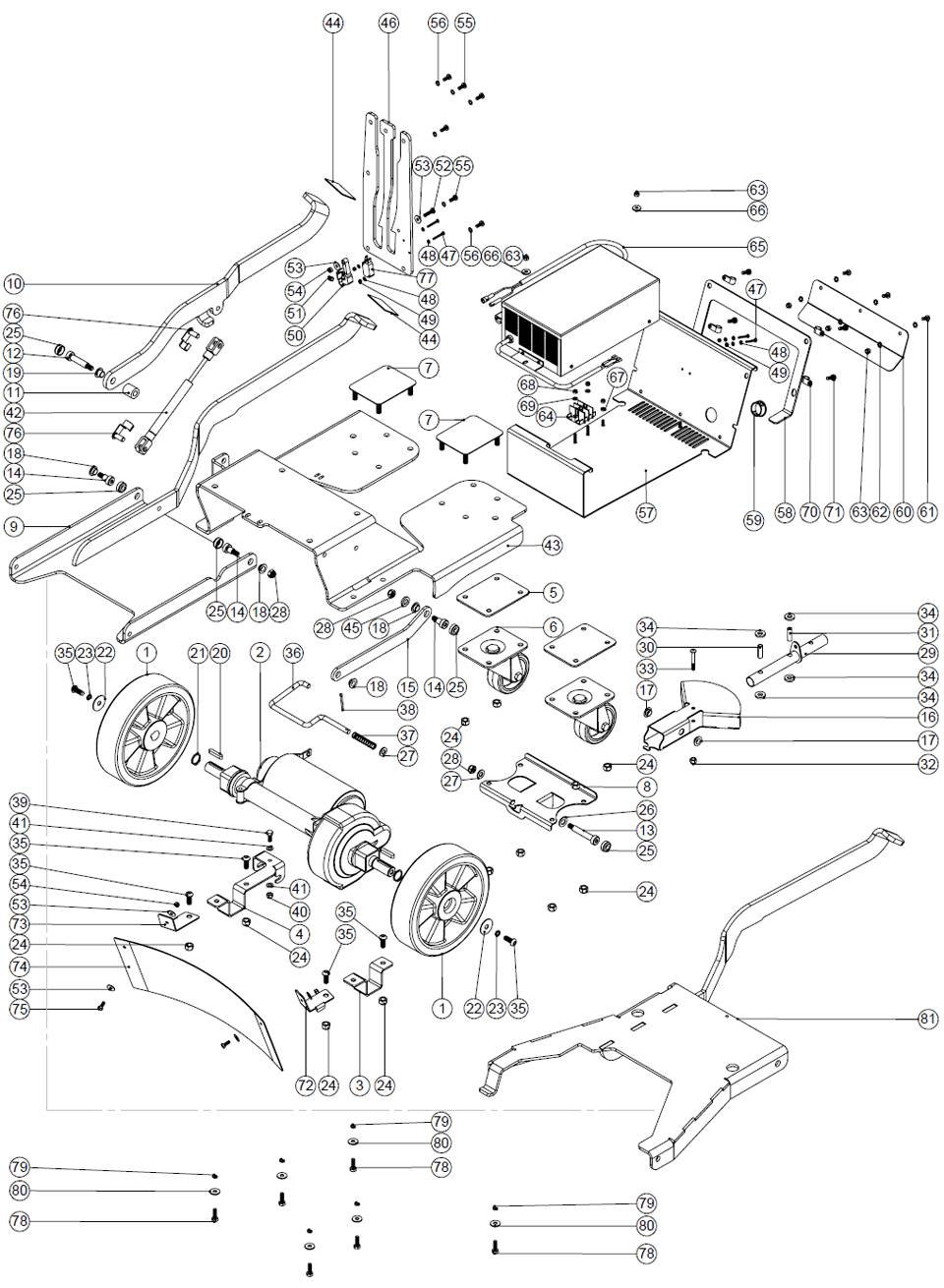

| Image | SKU# | Label on drawing | Description | Ask for a price |
|---|---|---|---|---|
|
NA204115000 | 1 | 200mm x 50mm traction wheel - grey pu tread combed profile | Ask for a price |
|
NA329497000 | 3 | Transaxle mounting bracket | Ask for a price |
|
NA392217000 | 4 | Ttv4555 brake lever and axle clamp | Ask for a price |
|
NA329581000 | 5 | Castor adaptor spacer | Ask for a price |
|
NA304367000 | 7 | Ttv4555 castor fixing plate c/w weld studs | Ask for a price |
|
NA404130000 | 8 | Ttv4555 floor tool lifting pivot bracket painted grey | Ask for a price |
|
NA404132000 | 9 | Ttv4555 deck lifting plate weld assembly - z/pl ttv4555/100t only | Ask for a price |
|
NA404131000 | 10 | Ttv4555 extra load pedal z/pl | Ask for a price |
|
|
NA404131000 | 10 | Ttv4555 extra load pedal z/pl | Ask for a price |
|
NA208350000 | 11 | Nylon spacer i/d 10.2mm x o/d 20.0mm x length 21.0mm | Ask for a price |
|
|
NA208350000 | 11 | Nylon spacer i/d 10.2mm x o/d 20.0mm x length 21.0mm | Ask for a price |
|
NA208355000 | 12 | M8 x 10 x 40mm long hex socket shoulder bolt | Ask for a price |
|
|
NA208355000 | 12 | M8 x 10 x 40mm long hex socket shoulder bolt | Ask for a price |
|
NA208333000 | 13 | M8 x 10 x 50mm long hex socket shoulder bolt | Ask for a price |
|
|
NA208333000 | 13 | M8 x 10 x 50mm long hex socket shoulder bolt | Ask for a price |
|
NA208313000 | 14 | M8 x 10 x 12mm long hex socket shoulder bolt | Ask for a price |
|
|
NA208313000 | 14 | M8 x 10 x 12mm long hex socket shoulder bolt | Ask for a price |
|
NA404175000 | 15 | Ttv4555 parallel link zinc plated ttv4555/100t only | Ask for a price |
|
NA304361000 | 16 | Ttv4555 floor tool lifting plate weld assembly | Ask for a price |
|
NA208312000 | 17 | Igus bearing (gfm 101205) | Ask for a price |
|
|
NA208312000 | 17 | Igus bearing (gfm 101205) | Ask for a price |
|
NA208330000 | 18 | Igus bearing (gfm 101206) | Ask for a price |
|
|
NA208330000 | 18 | Igus bearing (gfm 101206) | Ask for a price |
|
NA208331000 | 19 | Igus bearing (gfm 101209) | Ask for a price |
|
|
NA208331000 | 19 | Igus bearing (gfm 101209) | Ask for a price |
|
NA206744000 | 20 | 6mm x 6mm x 32mm feather key | Ask for a price |
|
NA219889000 | 21 | 19mm heavy duty circlip | Ask for a price |
|
NA219877000 | 22 | M8 x 30 stainless steel washer | Ask for a price |
|
|
NA219877000 | 22 | M8 x 30 stainless steel washer | Ask for a price |
|
NA219898000 | 23 | M8 single coil stainless steel washer | Ask for a price |
|
|
NA219898000 | 23 | M8 single coil stainless steel washer | Ask for a price |
|
NA219078000 | 24 | M8 nylon insert nut | Ask for a price |
|
NA237632000 | 25 | Shoulder bolt cover | Ask for a price |
|
|
NA237632000 | 25 | Shoulder bolt cover | Ask for a price |
|
NA219903000 | 26 | M10 form a stainless steel washer | Ask for a price |
|
|
NA219903000 | 26 | M10 form a stainless steel washer | Ask for a price |
|
NA219010000 | 27 | M8 form a washer | Ask for a price |
|
|
NA219010000 | 27 | M8 form a washer | Ask for a price |
|
NA219857000 | 28 | M8 nylon insert half nut | Ask for a price |
|
|
NA219857000 | 28 | M8 nylon insert half nut | Ask for a price |
|
NA304364000 | 29 | Ttv4555 floor tool pivot tube assembly | Ask for a price |
|
NA206954000 | 30 | Spiro spacer | Ask for a price |
|
|
NA206954000 | 30 | Spiro spacer | Ask for a price |
|
NA206963000 | 31 | Vertical nylon spacer | Ask for a price |
|
|
NA206963000 | 31 | Vertical nylon spacer | Ask for a price |
|
NA219088000 | 32 | M6 nylon insert nut | Ask for a price |
|
|
NA219088000 | 32 | M6 nylon insert nut | Ask for a price |
|
NA219807000 | 33 | M6 x 40mm long socket button head bolt | Ask for a price |
|
|
NA219807000 | 33 | M6 x 40mm long socket button head bolt | Ask for a price |
|
NA206964000 | 34 | Slide nylon spacer | Ask for a price |
|
|
NA206964000 | 34 | Slide nylon spacer | Ask for a price |
|
NA219823000 | 35 | M8 x 20mm long stainless steel socket button head bolt | Ask for a price |
|
NA304370000 | 36 | Ttv4555 brake lever | Ask for a price |
|
NA219326000 | 37 | 50mm long compression spring | Ask for a price |
|
NA219171000 | 38 | 3.2mm x 28mm split cotter pin | Ask for a price |
|
NA219719000 | 39 | M6 x 16mm long hexagonal stainless steel head bolt | Ask for a price |
|
|
NA219719000 | 39 | M6 x 16mm long hexagonal stainless steel head bolt | Ask for a price |
|
NA219642000 | 40 | M6 stainless steel nylon insert nut | Ask for a price |
|
|
NA219642000 | 40 | M6 stainless steel nylon insert nut | Ask for a price |
|
NA219560000 | 41 | M6 form b stainless steel washer | Ask for a price |
|
|
NA219560000 | 41 | M6 form b stainless steel washer | Ask for a price |
|
NA208325000 | 42 | Gas strut | Ask for a price |
|
NA404133000 | 43 | Ttv4555 chassis weld assembly - paint grey | Ask for a price |
|
NA391372000 | 44 | Foot pedal pad | Ask for a price |
|
NA219964000 | 45 | Nylon washer (18mm o/d x 10.4mm i/d x 3mm thick) | Ask for a price |
|
NA404142000 | 46 | Ttv4555 foot pedal guide plate - z/pl | Ask for a price |
|
|
NA404142000 | 46 | Ttv4555 foot pedal guide plate - z/pl | Ask for a price |
|
NA219519000 | 47 | M3 x 25mm long pozi pan screw | Ask for a price |
|
NA219237000 | 48 | M3 form a washer | Ask for a price |
|
|
NA219237000 | 48 | M3 form a washer | Ask for a price |
|
NA219070000 | 49 | M3 nylon insert nut | Ask for a price |
|
|
NA219070000 | 49 | M3 nylon insert nut | Ask for a price |
|
NA227587000 | 50 | Centre switch operating lever moulding | Ask for a price |
|
|
NA227587000 | 50 | Centre switch operating lever moulding | Ask for a price |
|
NA219804000 | 51 | Switch compression spring | Ask for a price |
|
|
NA219804000 | 51 | Switch compression spring | Ask for a price |
|
NA219571000 | 52 | M5 x 20mm long pozi pan stainless steel screw | Ask for a price |
|
NA219644000 | 53 | M5 form g stainless steel washer | Ask for a price |
|
|
NA219644000 | 53 | M5 form g stainless steel washer | Ask for a price |
|
NA219633000 | 54 | M5 stainless steel nylon insert nut | Ask for a price |
|
|
NA219633000 | 54 | M5 stainless steel nylon insert nut | Ask for a price |
|
NA219049000 | 55 | M5 x 12mm long pozi pan screw | Ask for a price |
|
|
NA219049000 | 55 | M5 x 12mm long pozi pan screw | Ask for a price |
|
NA219016000 | 56 | M5 shakeproof washer | Ask for a price |
|
|
NA219016000 | 56 | M5 shakeproof washer | Ask for a price |
|
NA404062000 | 57 | Charger plate welded assembly (painted grey) models with on-board charger | Ask for a price |
|
NA208337000 | 58 | Charger plate punched gasket | Ask for a price |
|
|
NA208337000 | 58 | Charger plate punched gasket | Ask for a price |
|
NA206314000 | 59 | Window plug | Ask for a price |
|
|
NA206314000 | 59 | Window plug | Ask for a price |
|
NA404140000 | 60 | Ttv4555 charger splash skirt paint grey models with on-board charger | Ask for a price |
|
NA219740000 | 61 | M5 x 12mm long stainless steel pozi pan screw | Ask for a price |
|
|
NA219740000 | 61 | M5 x 12mm long stainless steel pozi pan screw | Ask for a price |
|
NA291020000 | 62 | M5 stainless steel external shakeproof lock washer | Ask for a price |
|
|
NA291020000 | 62 | M5 stainless steel external shakeproof lock washer | Ask for a price |
|
NA219076000 | 63 | M5 nylon insert nut | Ask for a price |
|
|
NA219076000 | 63 | M5 nylon insert nut | Ask for a price |
|
NA220114000 | 64 | 2 way terminal block models with on-board charger | Ask for a price |
|
NA230186000 | 65 | 220-240v mentzer 35 amp charger (190mm wire version) models with on-board charger | Ask for a price |
|
NA219005000 | 66 | M5 form g washer | Ask for a price |
|
|
NA219005000 | 66 | M5 form g washer | Ask for a price |
|
NA219075000 | 67 | M4 full nut | Ask for a price |
|
NA219083000 | 68 | M4 nylon insert nut | Ask for a price |
|
|
NA219083000 | 68 | M4 nylon insert nut | Ask for a price |
|
NA219206000 | 69 | M4 form a washer | Ask for a price |
|
|
NA219206000 | 69 | M4 form a washer | Ask for a price |
|
NA219393000 | 70 | P clip | Ask for a price |
|
|
NA219393000 | 70 | P clip | Ask for a price |
|
NA219045000 | 71 | M5 x 16mm long pozi pan sems screw | Ask for a price |
|
|
NA219045000 | 71 | M5 x 16mm long pozi pan sems screw | Ask for a price |
|
NA304492000 | 72 | Ttv4555 left hand splash guard bracket painted graphite ttv4555/100t only | Ask for a price |
|
NA304493000 | 73 | Ttv4555 right hand splash guard bracket painted graphite ttv4555/100t only | Ask for a price |
|
NA392363000 | 74 | Ttv4555 splash guard ttv4555/100t only | Ask for a price |
|
NA219498000 | 75 | M5 x 12mm long stainless steel hex screw | Ask for a price |
|
NA208634000 | 76 | Gas ram clevis clip | Ask for a price |
|
|
NA208634000 | 76 | Gas ram clevis clip | Ask for a price |
|
NA229483000 | 77 | Snap action switch | Ask for a price |
|
|
NA229483000 | 77 | Snap action switch | Ask for a price |
|
NA219976000 | 78 | M6 x 20mm long hexangonal head set screw | Ask for a price |
|
|
NA219976000 | 78 | M6 x 20mm long hexangonal head set screw | Ask for a price |
|
NA219718000 | 79 | Washer.m6.spring.stainless steel | Ask for a price |
|
|
NA219718000 | 79 | Washer.m6.spring.stainless steel | Ask for a price |
|
NA219647000 | 80 | M6 form g stainless steel washer | Ask for a price |
|
|
NA219647000 | 80 | M6 form g stainless steel washer | Ask for a price |
|
NA404170000 | 81 | Ttb6055 deck lifting link z/pl ttb6055/100t & ttb1620/100tonly | Ask for a price |
