Catalog
Autoscrubber 20" TTB 1620 #NA777312000

Spare Parts for:

Autoscrubber 20" TTB 1620
#NA777312000


TTB 1620 autoscrubber 20" of working width with battery having a run time of 2.5 to 3.5 hours, integrated charger and safe low voltage shut off

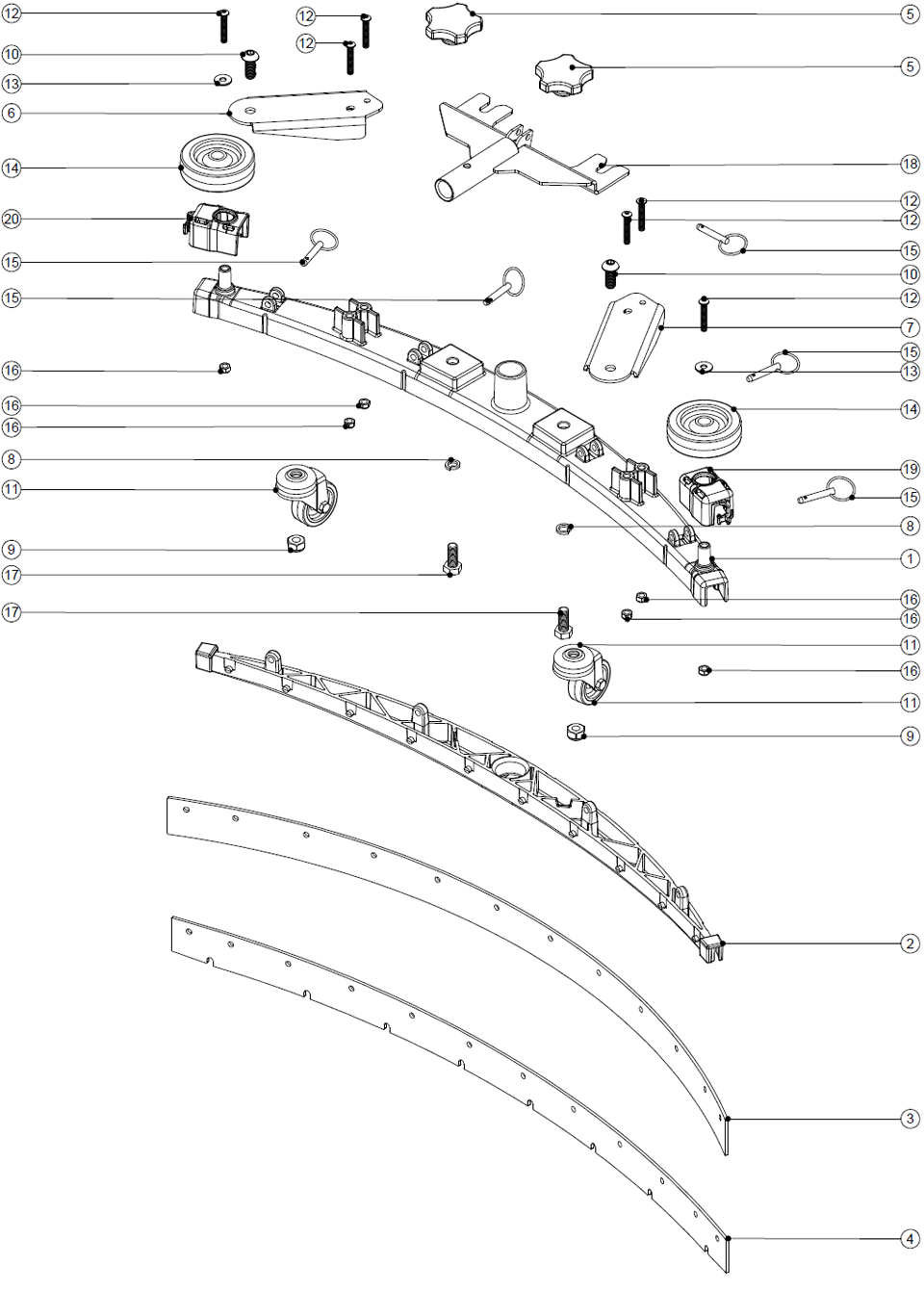

Parts Schema
650mm & 750mm Aluminium Floor Tool Serial numbers 1211 and higher
Image SKU# Label on drawing Description Ask for a price
NA208198000 1 (650mm scrub width) aluminium squeegee casting (38mm hose fitting) Ask for a price
NA208198000 1 (650mm scrub width) aluminium squeegee casting (38mm hose fitting) Ask for a price
NA208637000 1 (750mm scrub width) aluminium squeegee casting (38mm hose fitting) Ask for a price
NA229987000 2 (650mm scrub width) blade holder moulding (sloping profile) (32mm & 38mm hose fitting) Ask for a price
NA237624000 2 (750mm scrub width) blade holder moulding (sloping profile) (32mm & 38mm hose fitting) Ask for a price
NA900518000 3 Squeege Blade Kit for Autoscrubber TTB, TGB and TTV, 32" Ask for a price
NA208203000 3 (650mm scrub width) replacement (4.0mm / 40 shore a) rear red linatex premium natural rubber /blade (847mm long) Ask for a price
NA900518000 4 Squeege Blade Kit for Autoscrubber TTB, TGB and TTV, 32" Ask for a price
NA208201000 4 (650mm scrub width) replacement (3.2mm / 40 shore a) front red linatex premium natural rubber /blade (819mm long) Ask for a price
NA208354000 5 M10 lobe knob Ask for a price
NA392286000 6 Wide angle floor tool castor plate rhs Ask for a price
NA392285000 7 Wide angle floor tool castor plate lhs Ask for a price
NA219899000 8 M10 single coil stainless steel washer Ask for a price
NA219899000 8 M10 single coil stainless steel washer Ask for a price
NA219897000 9 M10 stainless steel nylon insert nut Ask for a price
NA219897000 9 M10 stainless steel nylon insert nut Ask for a price
NA219910000 10 M10 x 25mm long socket button head stainless steel screw Ask for a price
NA204018000 11 50mm castor/grey rubber tyre Ask for a price
NA219933000 12 M6 x 35mm socket button head bolt stainless steel Ask for a price
NA219933000 12 M6 x 35mm socket button head bolt stainless steel Ask for a price
NA219647000 13 M6 form g stainless steel washer Ask for a price
NA219647000 13 M6 form g stainless steel washer Ask for a price
NA204068000 14 3 inch grey wheel Ask for a price
NA204068000 14 3 inch grey wheel Ask for a price
NA206953000 15 Detent pins Ask for a price
NA206953000 15 Detent pins Ask for a price
NA219909000 17 M10 x 25mm long hexagonal stainless steel screw Ask for a price
NA219909000 17 M10 x 25mm long hexagonal stainless steel screw Ask for a price
NA304466000 18 Floor tool bracket assembly (tt/ttb4045/4055) Ask for a price
NA237322000 19 Right hand floor tool clip moulding Ask for a price
NA237322000 19 Right hand floor tool clip moulding Ask for a price
NA237323000 20 Left hand floor tool clip moulding Ask for a price
NA237323000 20 Left hand floor tool clip moulding Ask for a price

Parts Schemas List

Parts Schema
Schema Version
Serial numbers 1211 and higher
Serial numbers 1211 and higher
Serial numbers 1211 and higher
Serial numbers between 1211 to 1439
Serial numbers 1440 and higher
Serial numbers 1211 and higher
Serial numbers 1211 and higher
