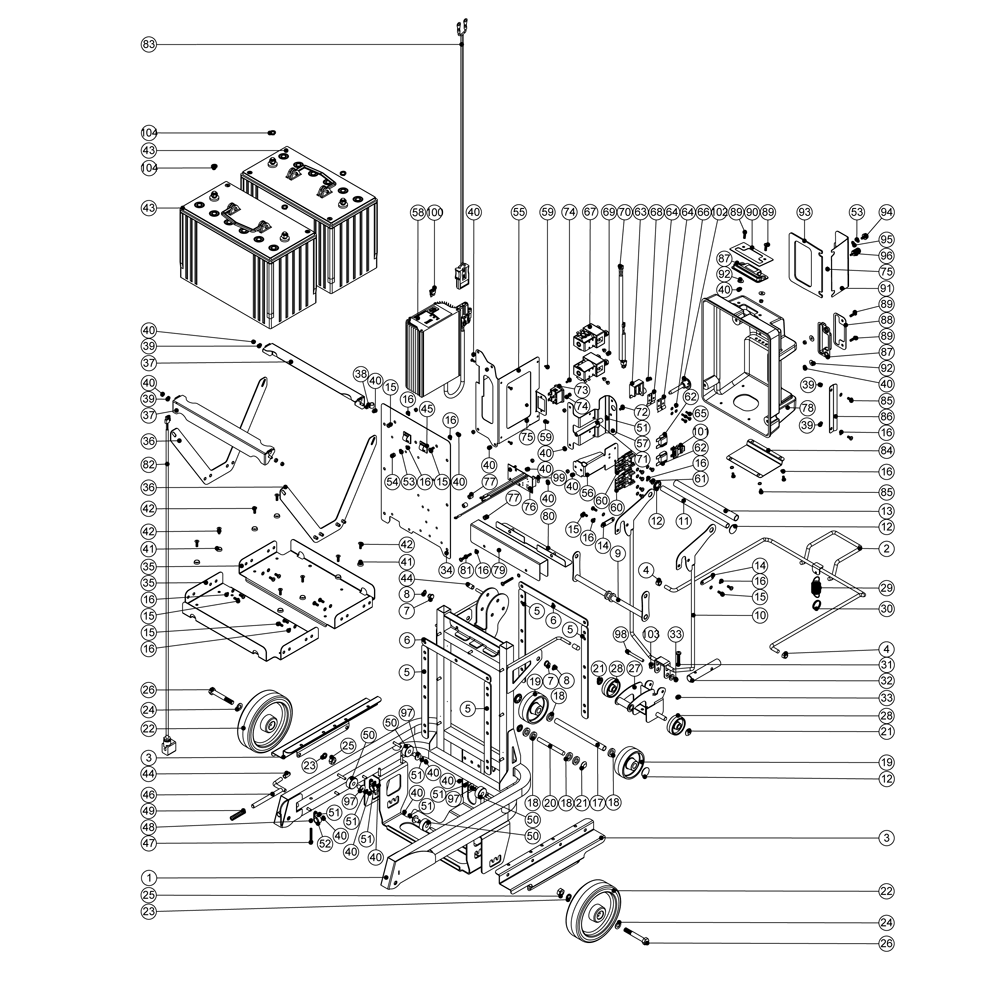

| Image | SKU# | Label on drawing | Description | Ask for a price |
|---|---|---|---|---|
|
NA329476000 | 1 | Nutserted welded chassis assembly | Ask for a price |
|
NA303620000 | 2 | Battery adjustment handle w/a | Ask for a price |
|
NA329416000 | 3 | Battery slider bracket | Ask for a price |
|
NA219639000 | 4 | M8 stainless steel nylon insert nut | Ask for a price |
|
NA202112000 | 5 | Chassis gasket - vertical | Ask for a price |
|
NA202113000 | 6 | Chassis gasket - horizontal | Ask for a price |
|
NA206647000 | 7 | Pivot bush | Ask for a price |
|
NA219586000 | 8 | 10mm external circlip | Ask for a price |
|
NA303594000 | 9 | Floor tool pivot link assembly | Ask for a price |
|
NA303595000 | 10 | Floor tool lifting frame | Ask for a price |
|
NA391037000 | 11 | 235mm long x 1/2 inch diameter x 18g stainless steel tube | Ask for a price |
|
NA204021000 | 12 | 12.7mm stainless steel hub cap | Ask for a price |
|
NA391038000 | 13 | 218mm long black nylon tube | Ask for a price |
|
NA329395000 | 14 | Fixing bracket | Ask for a price |
|
NA219740000 | 15 | M5 x 12mm long stainless steel pozi pan screw | Ask for a price |
|
NA219016000 | 16 | M5 shakeproof washer | Ask for a price |
|
NA391076000 | 17 | 173mm long x 1/2 inch diameter x 18g stainless steel tube | Ask for a price |
|
NA229346000 | 18 | Spacer | Ask for a price |
|
NA206713000 | 19 | 80mm diameter black wheel | Ask for a price |
|
NA391056000 | 20 | 90mm long x 3/8 inch diameter stainless steel bar | Ask for a price |
|
NA229290000 | 21 | 3/8 inch stainless cap | Ask for a price |
|
NA219349000 | 23 | M10 single coil washer | Ask for a price |
|
NA219449000 | 24 | M10 form a washer | Ask for a price |
|
NA219074000 | 25 | M10 full nut | Ask for a price |
|
NA219570000 | 26 | M10 x 70mm long hex bolt | Ask for a price |
|
NA303696000 | 27 | Floor tool connector weld assembly (no pin) | Ask for a price |
|
NA206712000 | 28 | 50mm diameter black wheel | Ask for a price |
|
NA226023000 | 29 | Extension spring | Ask for a price |
|
NA229293000 | 30 | 1 inch (stainless steel) split ring | Ask for a price |
|
NA219643000 | 31 | M6 x 35mm long stainless steel pozi pan screw | Ask for a price |
|
NA329163000 | 32 | Pivot boss | Ask for a price |
|
NA219642000 | 33 | M6 stainless steel nylon insert nut | Ask for a price |
|
NA303626000 | 34 | Backplate c/w studs | Ask for a price |
|
NA403043000 | 35 | Battery tray (painted grey) | Ask for a price |
|
NA303636000 | 36 | Nutserted stainless steel battery strap | Ask for a price |
|
NA303603000 | 37 | Battery angle bracket welded assembly | Ask for a price |
|
NA219393000 | 38 | P clip | Ask for a price |
|
NA219867000 | 39 | Nylon spacer | Ask for a price |
|
NA219633000 | 40 | M5 stainless steel nylon insert nut | Ask for a price |
|
NA219573000 | 41 | Screw insulator | Ask for a price |
|
NA219572000 | 42 | M5 x 16mm long pozi pan countersunk stainless steel screw | Ask for a price |
|
NA230138000 | 43 | 98 A/H STUD TERMINAL GEL TYPE BATTERY 100Ah SPARE PART 205112 | Ask for a price |
|
NA229240000 | 44 | End tip | Ask for a price |
|
NA220403000 | 45 | Cable clip | Ask for a price |
|
NA303483000 | 46 | Locking bar welded assembly | Ask for a price |
|
NA21932V000 | 47 | M5 x 40mm long pozi pan screw | Ask for a price |
|
NA219861000 | 48 | M5 single coil stainless steel washer | Ask for a price |
|
NA219873000 | 49 | Compression spring (stainless steel) | Ask for a price |
|
NA206648000 | 50 | Roller | Ask for a price |
|
NA219355000 | 51 | M5 form a stainless steel washer | Ask for a price |
|
NA219514000 | 52 | P-CLIP | Ask for a price |
|
NA219721000 | 53 | M5 stainless steel full nut | Ask for a price |
|
NA219398000 | 54 | M5 domenut | Ask for a price |
|
NA329432000 | 55 | Charger mounting bracket | Ask for a price |
|
NA329430000 | 56 | Fuse holder bracket | Ask for a price |
|
NA329398000 | 57 | Contact mounting plate | Ask for a price |
|
NA230107000 | 58 | 230v/24v/10 amp hf charger | Ask for a price |
|
NA219301000 | 59 | No6 X 3/8 INCH LONG POZI PAN SELF TAP SCREW MODELS WITH NORD CHARGER | Ask for a price |
|
NA230102000 | 60 | Fuse holder rated at 60 amps | Ask for a price |
|
NA219864000 | 61 | M5 x 8mm long pozi-pan screw z/pl | Ask for a price |
|
NA230104000 | 62 | 30 amp maxi fuse | Ask for a price |
|
NA321156000 | 63 | Isolator block & inserts assembly | Ask for a price |
|
NA219466000 | 64 | Isolator contact | Ask for a price |
|
NA221151000 | 65 | M4 x 12mm long pozi pan screw | Ask for a price |
|
NA219015000 | 66 | M4 shakeproof washer traction machines only | Ask for a price |
|
NA230111000 | 67 | Contactor | Ask for a price |
|
NA219569000 | 68 | No8.1/2 inch. Lg.pozi-pan.screw.stainless steel.plastite | Ask for a price |
|
NA219566000 | 69 | M4 x 6mm long pozi pan screw | Ask for a price |
|
NA236097000 | 70 | Contactor lead assembly | Ask for a price |
|
NA208000000 | 71 | 92mm long aluminium spacer | Ask for a price |
|
NA219047000 | 72 | M5 x 10mm long pozi pan sems screw | Ask for a price |
|
NA221035000 | 73 | Hours meter | Ask for a price |
|
NA219471000 | 74 | M4 x 12mm long pozi pan sems screw | Ask for a price |
|
NA219687000 | 75 | M4 stainless steel nylon insert nut | Ask for a price |
|
NA221029000 | 76 | Current shunt / connection pcb | Ask for a price |
|
NA219574000 | 77 | Nylon spacer | Ask for a price |
|
NA229550000 | 78 | Processed enclosure box | Ask for a price |
|
NA329447000 | 79 | Cover plate | Ask for a price |
|
NA303631000 | 80 | Nutserted splash gaurd | Ask for a price |
|
NA219661000 | 81 | M5 x 35mm long pozi pan stainless steel screw | Ask for a price |
|
NA236096000 | 82 | Solenoid lead assembly | Ask for a price |
|
NA321119000 | 83 | Dc charging lead assembly | Ask for a price |
|
NA329440000 | 84 | Exhaust cover plate | Ask for a price |
|
NA219668000 | 85 | M5 x 10mm long pozi pan stainless steel screw | Ask for a price |
|
NA329452000 | 86 | Fuse cover retaining plate | Ask for a price |
|
NA206664000 | 87 | Lens moulding (no print) | Ask for a price |
|
NA329445000 | 88 | Lens cover plate | Ask for a price |
|
NA219547000 | 89 | M5 x 16mm long pozi pan stainless steel screw | Ask for a price |
|
|
NA329445000 | 90 | Lens cover plate | Ask for a price |
|
NA329435000 | 91 | Fuse cover plate | Ask for a price |
|
NA219644000 | 92 | M5 form g stainless steel washer | Ask for a price |
|
NA202117000 | 93 | Fuse cover gasket | Ask for a price |
|
NA206666000 | 94 | M5 knurled knob | Ask for a price |
|
NA206667000 | 95 | M5 retaining washer | Ask for a price |
|
NA219738000 | 96 | M4 knob | Ask for a price |
|
NA206677000 | 97 | Roller spacer | Ask for a price |
|
NA219748000 | 98 | M6 x 50mm stainless steel cap head bolt | Ask for a price |
|
NA221038000 | 99 | 2 amp 20mm quick blow fuse | Ask for a price |
|
NA221037000 | 100 | 20 amp fuse | Ask for a price |
|
NA230112000 | 101 | Maxi fuse puller | Ask for a price |
|
NA220681000 | 102 | Isolator knob | Ask for a price |
|
NA219417000 | 103 | Insulator bush | Ask for a price |
|
NA219899000 | 104 | M10 single coil stainless steel washer | Ask for a price |
