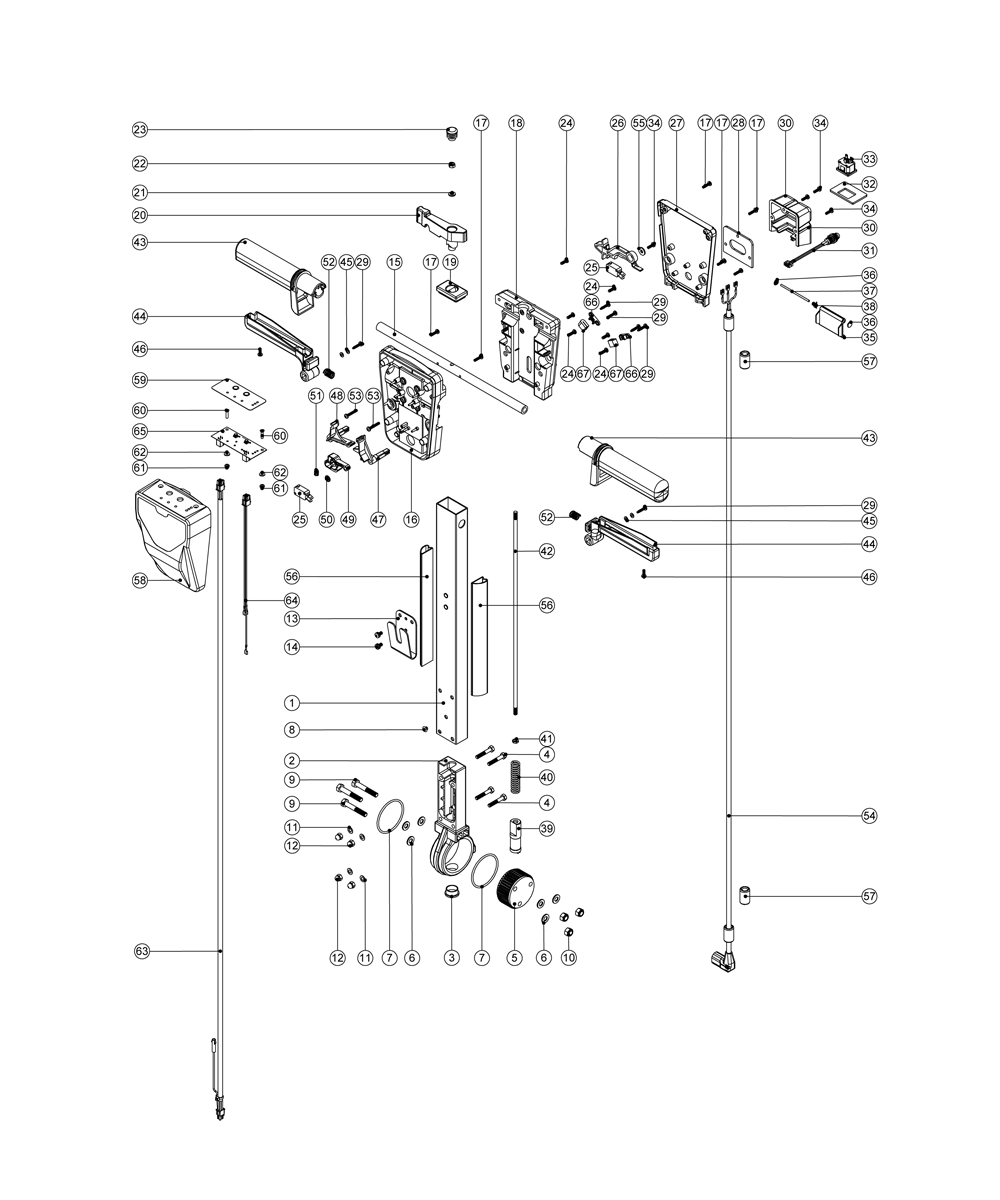

| Image | SKU# | Label on drawing | Description | Ask for a price |
|---|---|---|---|---|
|
NA429074000 | 1 | 430mm painted processed aliminium handle | Ask for a price |
|
NA229081000 | 2 | Handle casting machined | Ask for a price |
|
NA229099000 | 3 | 25mm dia hole plug | Ask for a price |
|
NA219064000 | 4 | M6 x 35mm long hex bolt | Ask for a price |
|
NA229074000 | 5 | Adjustment gear | Ask for a price |
|
NA219010000 | 6 | M8 form a washer | Ask for a price |
|
NA219254000 | 7 | O ring 3mm dia x 60mm i/d | Ask for a price |
|
NA229009000 | 8 | Blanking plug | Ask for a price |
|
NA219091000 | 9 | M8 x 50mm long hex bolt | Ask for a price |
|
NA219078000 | 10 | M8 nylon insert nut | Ask for a price |
|
NA219007000 | 11 | M6 form b washer | Ask for a price |
|
NA219080000 | 12 | M6 domenut | Ask for a price |
|
NA329397000 | 13 | Separator hanging bracket | Ask for a price |
|
NA219047000 | 14 | M5 x 10mm long pozi pan sems screw | Ask for a price |
|
NA338269000 | 15 | Cross tube | Ask for a price |
|
NA227576000 | 16 | Front inner half moulding | Ask for a price |
|
NA229508000 | 16 | Flame retardant front inner half moulding | Ask for a price |
|
NA219105000 | 17 | No8 X 5/8 INCH LONG POZI PAN PLASTITE SCREW | Ask for a price |
|
NA227577000 | 18 | Rear inner half moulding | Ask for a price |
|
NA229509000 | 18 | Flame retardant rear inner half moulding | Ask for a price |
|
NA227582000 | 19 | Handle plug moulding | Ask for a price |
|
NA227583000 | 20 | Adjustment lever moulding | Ask for a price |
|
NA219493000 | 21 | M6 nylon washer | Ask for a price |
|
NA219642000 | 22 | M6 stainless steel nylon insert nut | Ask for a price |
|
NA20638V000 | 23 | 19mm black tube end stop | Ask for a price |
|
NA219101000 | 24 | No8 X 1/2 INCH LONG POZI PAN PLASTIITE SCREW | Ask for a price |
|
NA229483000 | 25 | Snap action switch | Ask for a price |
|
NA227584000 | 26 | Interlock lever moulding | Ask for a price |
|
NA303509000 | 27 | Modified rear cover | Ask for a price |
|
NA303628000 | 27 | Flame retardent modified rear cover moulding | Ask for a price |
|
NA202105000 | 28 | Socket cover sealing gasket | Ask for a price |
|
NA219107000 | 29 | No6 x 5/8 inch long pozi pan plastite screw | Ask for a price |
|
NA329355000 | 30 | Processed socket cover moulding with large hole standard machine | Ask for a price |
|
NA303629000 | 30 | Socket cover moulding c/w large moulded hole (with processed holes) flame retardent csa spec | Ask for a price |
|
NA270193000 | 31 | Neon indicator red lens 230v c/w link wires traction machines only | Ask for a price |
|
NA270195000 | 31 | Neon indicator red lens 120v c/w link wires traction machines only | Ask for a price |
|
NA329297000 | 32 | Socket mounting plate | Ask for a price |
|
NA220391000 | 33 | 3 pin appliance socket | Ask for a price |
|
NA219601000 | 34 | No8 X 3/8 INCH LONG POZI PAN PLASTITE SCREW | Ask for a price |
|
NA227781000 | 35 | Flap moulding | Ask for a price |
|
NA219832000 | 36 | 3mm diameter starlock | Ask for a price |
|
NA390979000 | 37 | 72mm long x 3mm diameter stainless steel bar | Ask for a price |
|
NA219819000 | 38 | Torsion spring | Ask for a price |
|
NA229073000 | 39 | Gear locking pin | Ask for a price |
|
NA229138000 | 40 | Spring | Ask for a price |
|
NA219099000 | 41 | M6 half nut | Ask for a price |
|
NA229461000 | 42 | 440mm handle locking rod | Ask for a price |
|
NA227580000 | 43 | Hand grip moulding | Ask for a price |
|
NA219206000 | 45 | M4 form a washer | Ask for a price |
|
NA219270000 | 46 | No8 X 1/2 INCH LONG POZI PAN SELF TAP SCREW | Ask for a price |
|
NA227585000 | 47 | Left hand switch operating lever moulding | Ask for a price |
|
NA227586000 | 48 | Right hand switch operating lever moulding | Ask for a price |
|
NA227587000 | 49 | Centre switch operating lever moulding | Ask for a price |
|
NA219805000 | 50 | 4mm spirefix | Ask for a price |
|
NA219804000 | 51 | Switch compression spring | Ask for a price |
|
NA219803000 | 52 | Trigger compression spring | Ask for a price |
|
NA219811000 | 53 | No8 x 1 inch long pozi-pan self tap screw | Ask for a price |
|
NA321132000 | 54 | Ac charging lead assembly | Ask for a price |
|
NA219005000 | 55 | M5 form g washer | Ask for a price |
|
NA391074000 | 56 | 244mm long cut self adhesive cable ducting | Ask for a price |
|
NA230097000 | 57 | Axial ferrite bead | Ask for a price |
|
NA237272000 | 58 | Ttb 1840 front cover moulding | Ask for a price |
|
NA208483000 | 59 | Control board overlay | Ask for a price |
|
NA219407000 | 60 | M4 x 16mm long pozi pan countersunk screw | Ask for a price |
|
NA219083000 | 61 | M4 nylon insert nut | Ask for a price |
|
NA208521000 | 62 | Nylon washer 10.0 od x 4.1 id x 1.0mm | Ask for a price |
|
NA208548000 | 63 | 4 core loom assembly c/w 120mm long brown wire | Ask for a price |
|
NA208486000 | 64 | 3 core handle loom | Ask for a price |
|
NA208549000 | 65 | Ttb3450 / ttb4500 / ttb4552 power electronics control pcb | Ask for a price |
|
NA229669000 | 66 | Loline handle cable clamp | Ask for a price |
|
NA212262000 | 67 | 50mm long -12mm x 4mm x 1500mm v6 open cell natural sponge | Ask for a price |
