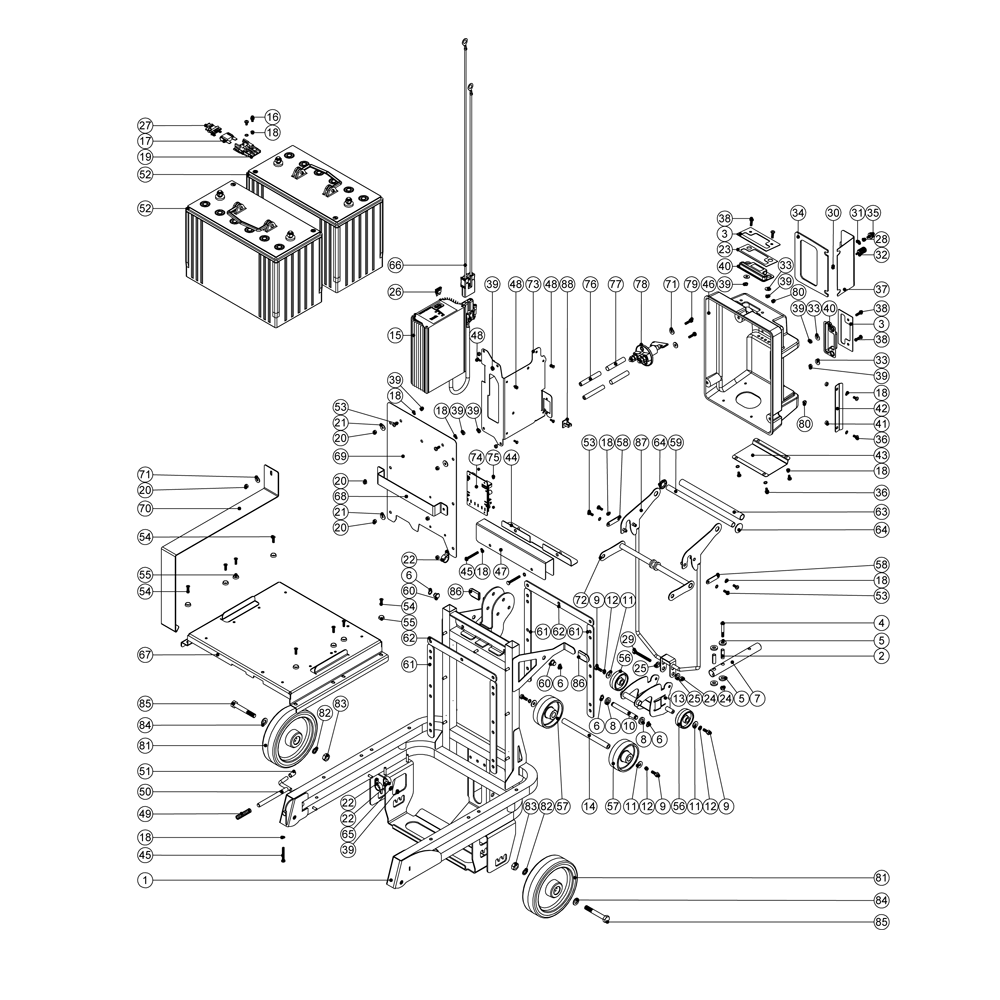

| Image | SKU# | Label on drawing | Description | Ask for a price |
|---|---|---|---|---|
|
NA330048000 | 1 | Nutserted stainless steel chassis assembly | Ask for a price |
|
NA206954000 | 2 | Spiro spacer | Ask for a price |
|
NA329445000 | 3 | Lens cover plate | Ask for a price |
|
NA219807000 | 4 | M6 x 40mm long socket button head bolt | Ask for a price |
|
NA206964000 | 5 | Slide nylon spacer | Ask for a price |
|
NA219586000 | 6 | 10mm external circlip | Ask for a price |
|
NA303902000 | 7 | Floor tool pivot tube | Ask for a price |
|
NA219964000 | 8 | Nylon washer (18mm o/d x 10.4mm i/d x 3mm thick) | Ask for a price |
|
NA219719000 | 9 | M6 x 16mm long hexagonal stainless steel head bolt | Ask for a price |
|
NA208180000 | 10 | Chariot pivot tube | Ask for a price |
|
NA219647000 | 11 | M6 form g stainless steel washer | Ask for a price |
|
NA219718000 | 12 | Washer.m6.spring.stainless steel | Ask for a price |
|
NA303901000 | 13 | Floor tool connector welded assembly | Ask for a price |
|
NA208181000 | 14 | Tapped rear axle | Ask for a price |
|
NA230140000 | 15 | 230v/24v/10 amp hf nord charger (d11 removed & replced with link wire) | Ask for a price |
|
NA230141000 | 115v/24v/10 amp hf nord charger (d11 removed & replced with link wire) models with nord charger | Ask for a price | |
|
NA219864000 | 16 | M5 x 8mm long pozi-pan screw z/pl | Ask for a price |
|
NA221047000 | 17 | 40 amp maxi fuse | Ask for a price |
|
NA219016000 | 18 | M5 shakeproof washer | Ask for a price |
|
NA230102000 | 19 | Fuse holder rated at 60 amps | Ask for a price |
|
NA219076000 | 20 | M5 nylon insert nut | Ask for a price |
|
NA219497000 | 21 | M5 nylon washer | Ask for a price |
|
NA219514000 | 22 | P-CLIP | Ask for a price |
|
NA220725000 | 23 | Self adhesive lens gasket | Ask for a price |
|
NA219642000 | 24 | M6 stainless steel nylon insert nut | Ask for a price |
|
NA219417000 | 25 | Insulator bush | Ask for a price |
|
NA221037000 | 26 | 20 amp fuse | Ask for a price |
|
NA230112000 | 27 | Maxi fuse puller | Ask for a price |
|
NA219721000 | 28 | M5 stainless steel full nut | Ask for a price |
|
NA219224000 | 29 | M6 x 55mm long hex head bolt | Ask for a price |
|
NA219687000 | 30 | M4 stainless steel nylon insert nut | Ask for a price |
|
NA206667000 | 31 | M5 retaining washer | Ask for a price |
|
NA219738000 | 32 | M4 knob | Ask for a price |
|
NA219644000 | 33 | M5 form g stainless steel washer | Ask for a price |
|
NA202117000 | 34 | Fuse cover gasket | Ask for a price |
|
NA206666000 | 35 | M5 knurled knob | Ask for a price |
|
NA219668000 | 36 | M5 x 10mm long pozi pan stainless steel screw | Ask for a price |
|
NA329435000 | 37 | Fuse cover plate | Ask for a price |
|
NA219547000 | 38 | M5 x 16mm long pozi pan stainless steel screw | Ask for a price |
|
NA219633000 | 39 | M5 stainless steel nylon insert nut | Ask for a price |
|
NA206664000 | 40 | Lens moulding (no print) | Ask for a price |
|
NA219867000 | 41 | Nylon spacer | Ask for a price |
|
NA329452000 | 42 | Fuse cover retaining plate | Ask for a price |
|
NA329440000 | 43 | Exhaust cover plate | Ask for a price |
|
NA303631000 | 44 | Nutserted splash gaurd | Ask for a price |
|
NA21932V000 | 45 | M5 x 40mm long pozi pan screw | Ask for a price |
|
NA325820000 | 46 | Processed enclosure box | Ask for a price |
|
NA329447000 | 47 | Cover plate | Ask for a price |
|
NA219301000 | 48 | No6 X 3/8 INCH LONG POZI PAN SELF TAP SCREW MODELS WITH NORD CHARGER | Ask for a price |
|
NA219873000 | 49 | Compression spring (stainless steel) | Ask for a price |
|
NA303483000 | 50 | Locking bar welded assembly | Ask for a price |
|
NA229240000 | 51 | End tip | Ask for a price |
|
NA205112000 | 52 | 100 amp/hour replacement battery (c/w packaging for 230138 battery) 100ah version | Ask for a price |
|
NA219740000 | 53 | M5 x 12mm long stainless steel pozi pan screw | Ask for a price |
|
NA219572000 | 54 | M5 x 16mm long pozi pan countersunk stainless steel screw | Ask for a price |
|
NA219573000 | 55 | Screw insulator | Ask for a price |
|
NA206712000 | 56 | 50mm diameter black wheel | Ask for a price |
|
NA206713000 | 57 | 80mm diameter black wheel | Ask for a price |
|
NA329395000 | 58 | Fixing bracket | Ask for a price |
|
NA391037000 | 59 | 235mm long x 1/2 inch diameter x 18g stainless steel tube | Ask for a price |
|
NA206647000 | 60 | Pivot bush | Ask for a price |
|
NA202112000 | 61 | Chassis gasket - vertical | Ask for a price |
|
NA202113000 | 62 | Chassis gasket - horizontal | Ask for a price |
|
NA391038000 | 63 | 218mm long black nylon tube | Ask for a price |
|
NA204021000 | 64 | 12.7mm stainless steel hub cap | Ask for a price |
|
NA219355000 | 65 | M5 form a stainless steel washer | Ask for a price |
|
NA321547000 | 66 | Dc charging lead (power electronics) | Ask for a price |
|
NA404096000 | 67 | Twintec battery tray (non traction version) - paint silver grey | Ask for a price |
|
NA404094000 | 68 | Battery support bracket painted | Ask for a price |
|
NA304275000 | 69 | Power electronics back plate welded assembly (painted silver grey) c/w pems studs | Ask for a price |
|
NA404023000 | 70 | Battery strap (painted silver) | Ask for a price |
|
NA219005000 | 71 | M5 form g washer | Ask for a price |
|
NA303594000 | 72 | Floor tool pivot link assembly | Ask for a price |
|
NA404057000 | 73 | Nordelectronica mild steel charger mounting bracket (painted silver grey) | Ask for a price |
|
NA310067000 | 74 | PCB Replacement Kit | Ask for a price |
|
NA208248000 | Dc drive pcb 24v assembly | Ask for a price | |
|
NA219070000 | 75 | M3 nylon insert nut | Ask for a price |
|
NA208507000 | 76 | 70mm long aluminium spacer | Ask for a price |
|
NA321633000 | 77 | 70mm long x 10mm i/d black pvc sleeving | Ask for a price |
|
NA219546000 | 79 | M5 x 20mm long pozi pan sems screw | Ask for a price |
|
NA219645000 | 80 | M5 stainless steel dome nut | Ask for a price |
|
NA219349000 | 82 | M10 single coil washer | Ask for a price |
|
NA219074000 | 83 | M10 full nut | Ask for a price |
|
NA219449000 | 84 | M10 form a washer | Ask for a price |
|
NA219570000 | 85 | M10 x 70mm long hex bolt | Ask for a price |
|
NA391146000 | 86 | 35mm long foot latch cover | Ask for a price |
|
NA303729000 | 87 | Nutserted floor tool lifting frame | Ask for a price |
|
NA219463000 | 88 | Clip (16mm high) | Ask for a price |
