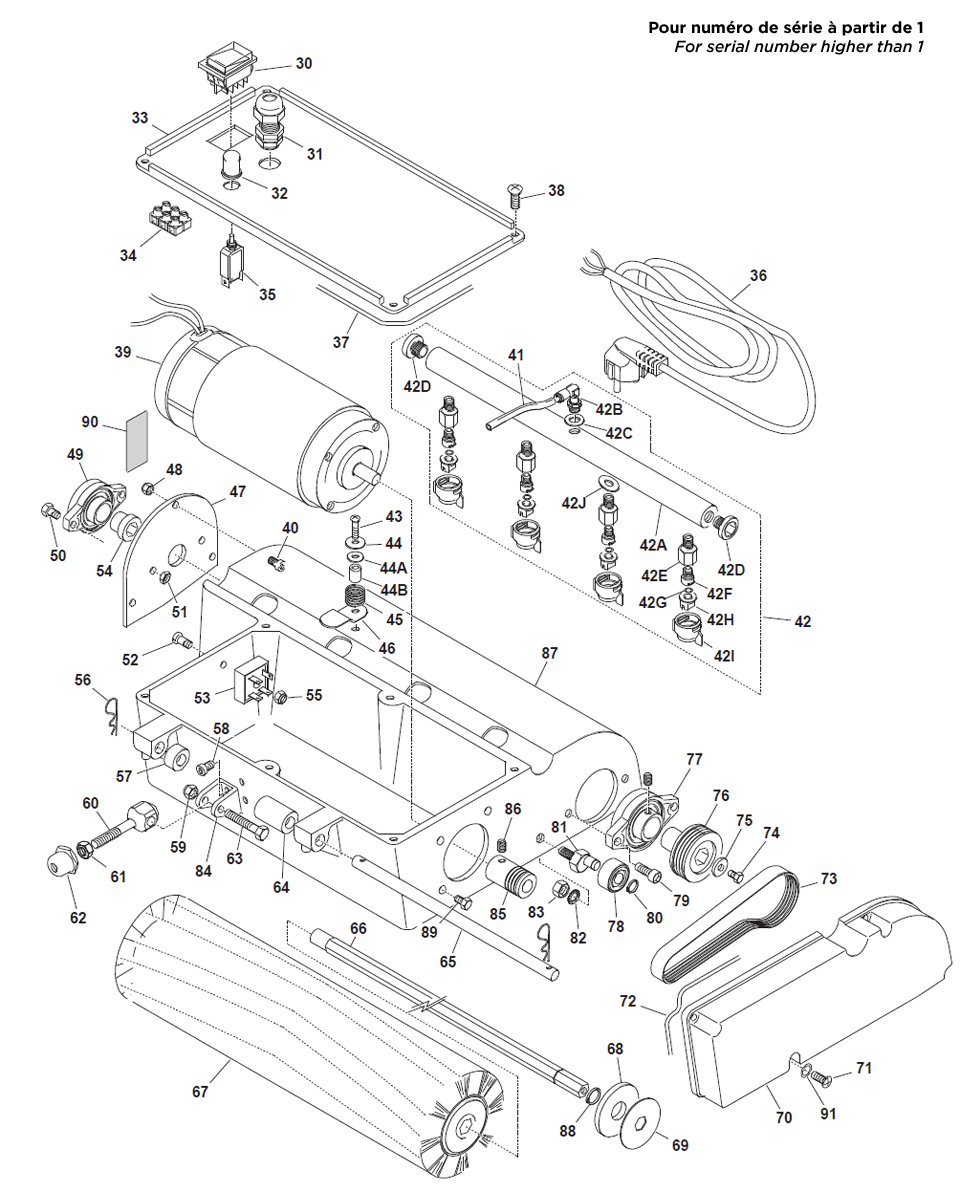

| Image | SKU# | Label on drawing | Description | Ask for a price |
|---|---|---|---|---|
|
NA154254000 | 33 | Cover for brush motor | Ask for a price |
|
NA151864000 | 37 | Gasket for cover 425 | Ask for a price |
|
NA015536000 | 38 | Screw | Ask for a price |
|
NA154352000 | 39 | Brush motor 220-240v | Ask for a price |
|
NA154352120 | 39 | Brush motor 100-120v | Ask for a price |
|
NA155741000 | 40 | Screw tc brugola 6x16 zn | Ask for a price |
|
NA157403000 | 41 | Rilsan pipe 6/8 l=128cm | Ask for a price |
|
NA157577C00 | 42 | Complete manifold for ns400brush/ch.one | Ask for a price |
|
NA157577000 | 42A | Manifold for ns400brush/ch.one nozzles | Ask for a price |
|
NA156053A00 | 42B | Elbow automatic coupling r31 m.1/8 6/8 | Ask for a price |
|
NA155400000 | 42C | Metal washer | Ask for a price |
|
NA157580000 | 42D | Cap a7 3/8 with o-ring | Ask for a price |
|
NA153286000 | 42F | Quick disconnect nozzle support | Ask for a price |
|
NA153209000 | 42G | O-ring | Ask for a price |
|
NA157301100 | 42H | Nozzle tip 0.15/110 | Ask for a price |
|
NA157180000 | 42I | Nut for nozzle | Ask for a price |
|
NA155652000 | 42J | Centre plate for manifold | Ask for a price |
|
NA15546I000 | 43 | Screw tc+5x25 inox | Ask for a price |
|
NA155172000 | 44 | Washer 5x20 inox | Ask for a price |
|
NA155171000 | 44A | WASHER 5x15x1,5 UNI 6593 INOX | Ask for a price |
|
NA155651000 | 44B | Thimble for manifold locking plate | Ask for a price |
|
NA154600000 | 45 | Spring for powerful zn | Ask for a price |
|
NA155650000 | 46 | Locking plate | Ask for a price |
|
NA154324000 | 47 | Bearing support plate | Ask for a price |
|
NA15562A000 | 48 | Locking nut – diam. 6 | Ask for a price |
|
NA155740000 | 50 | SCREW – 6x14 | Ask for a price |
|
NA155230600 | 51 | Nut d.6 (3mm) | Ask for a price |
|
NA154381000 | 54 | Counter pulley d.17 | Ask for a price |
|
NA155690000 | 56 | Copper pin d.2 | Ask for a price |
|
NA154280000 | 65 | Shaft d.10 | Ask for a price |
|
NA154372100 | 66 | Brush shaft | Ask for a price |
|
NA153692000 | 67 | Brush ns400br/charis | Ask for a price |
|
NA154322000 | 68 | Silicon gasket d.45x10 | Ask for a price |
|
NA154323100 | 69 | Mailar disc d48 es12 sp.0.5 | Ask for a price |
|
NA15429N000 | 70 | Carpet for powerful | Ask for a price |
|
NA155510000 | 71 | SCREW TC+ 4x16 INOX | Ask for a price |
|
NA151863000 | 72 | Gasket for carter | Ask for a price |
|
NA154300000 | 73 | Brush belt | Ask for a price |
|
NA15575I000 | 74 | Screw te 5x12 inox | Ask for a price |
|
|
NA155172000 | 75 | Washer 5x20 inox | Ask for a price |
|
NA15433N000 | 76 | Pulley for brush | Ask for a price |
|
|
NA155740000 | 79 | SCREW – 6x14 | Ask for a price |
