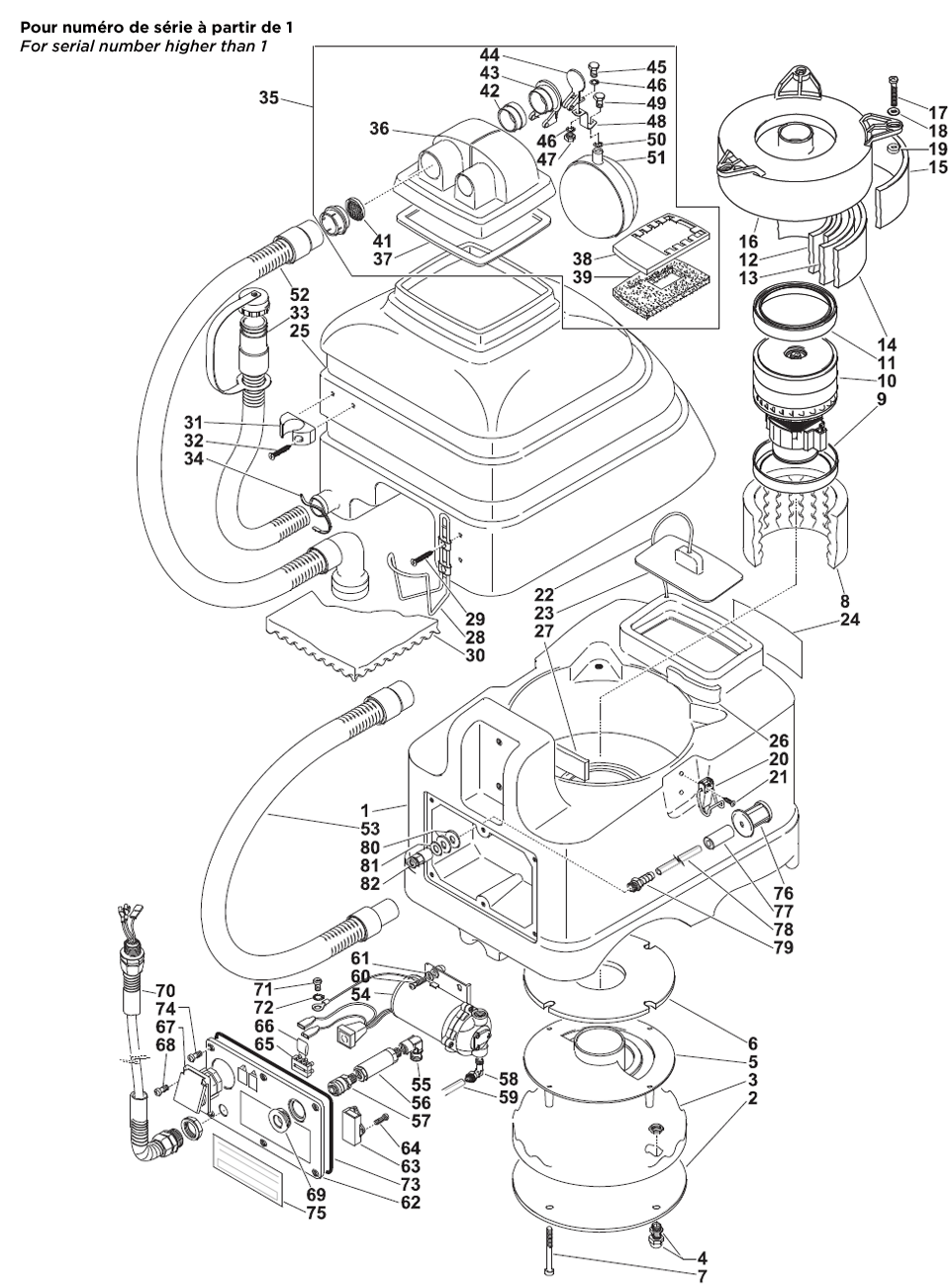

| Image | SKU# | Label on drawing | Description | Ask for a price |
|---|---|---|---|---|
|
NA151501A00 | 1 | Charis lower tank – blue color | Ask for a price |
|
NA015200000 | 3 | Lower soundproofing disc | Ask for a price |
|
NA152950000 | 4 | Fairlead with nut | Ask for a price |
|
NA152010000 | 5 | Lower motor flange | Ask for a price |
|
NA015202000 | 6 | Lower soundproofing filter | Ask for a price |
|
NA155300000 | 7 | Screw tc brugola 5x65 uni 5931 8.8 zn | Ask for a price |
|
NA151320000 | 8 | Lower soundproofing cilinder | Ask for a price |
|
NA158250000 | 9 | MOTOR GASKET 3mm | Ask for a price |
|
NA15808PA00 | 10 | High waterlift 3 stages vacuum motor 1500w 220-240v | Ask for a price |
|
NA15810PA00 | 10 | High waterlift 3 stages vacuum motor 1300w 100v | Ask for a price |
|
NA158121300 | 11 | Motor gasket 13mm high waterlift motor (after s/n: 45378) | Ask for a price |
|
NA015198000 | 12 | Soundproofing filter 12x100x530 | Ask for a price |
|
NA015197000 | 13 | Soundproofing filter 9x100x655 | Ask for a price |
|
NA015196000 | 14 | Soundproofing filter 9x90x780 | Ask for a price |
|
NA015195000 | 15 | Soundproofing filter 12x100x830 | Ask for a price |
|
NA151940000 | 16 | Aluminium silencer flange | Ask for a price |
|
NA155600000 | 17 | Screw tc+ 5x30 uni 7687 inox | Ask for a price |
|
NA155171000 | 18 | WASHER 5x15x1,5 UNI 6593 INOX | Ask for a price |
|
NA157361000 | 19 | Vibration damping | Ask for a price |
|
NA151420000 | 20 | Coupler | Ask for a price |
|
NA155420000 | 21 | Screw | Ask for a price |
|
NA151334100 | 22 | Tie for lower tank cover | Ask for a price |
|
NA151334000 | 23 | Lower tank cover | Ask for a price |
|
NA151564100 | 24 | Lower tank label | Ask for a price |
|
NA151491A00 | 25 | Charis upper tank – blue color | Ask for a price |
|
NA151552000 | 26 | Charis tank front gasket | Ask for a price |
|
NA151553000 | 27 | Charis tank rear gasket | Ask for a price |
|
NA154918200 | 28 | Chemical bottle holder | Ask for a price |
|
|
NA155420000 | 29 | Screw | Ask for a price |
|
NA015192000 | 30 | Soundprofing panel | Ask for a price |
|
NA151600000 | 31 | Clip | Ask for a price |
|
NA155440000 | 32 | Screw | Ask for a price |
|
NA151591CMA | 33 | Complete drain hose | Ask for a price |
|
NA015541000 | 34 | Tie | Ask for a price |
|
NA151331C00 | 35 | Complete cover with floater | Ask for a price |
|
NA151341000 | 37 | Cover gasket | Ask for a price |
|
NA152025000 | 39 | Vacuum motor exhaust filter ppi30 d.44 | Ask for a price |
|
NA151333000 | 41 | Cover filter | Ask for a price |
|
NA151163200 | 41A | Plastic filter | Ask for a price |
|
NA151708000 | 42 | Locking nut for floater | Ask for a price |
|
NA151703000 | 43 | Floater fixex part | Ask for a price |
|
NA151704000 | 44 | Floater moving part | Ask for a price |
|
|
NA151704000 | 44 | Floater moving part | Ask for a price |
|
NA1557504I0 | 45 | Screw te 4x12 inox | Ask for a price |
|
NA155210000 | 46 | Locking washer diam.12mm | Ask for a price |
|
NA155230000 | 47 | Nut es. 4 ma uni 5587 ottone | Ask for a price |
|
NA151712000 | 48 | Curved plate for sharon floater | Ask for a price |
|
NA1558206W0 | 49 | Screw 6x8 inox passo 1/4x3/8 whitworth | Ask for a price |
|
NA1552106I0 | 50 | Locking washer est.diam 6 inox | Ask for a price |
|
NA151707000 | 51 | Spherical floater | Ask for a price |
|
NA15364CCH0 | 52 | Hose d.38 for charis motor | Ask for a price |
|
NA153453000 | 53 | Hose for charis vacuum head | Ask for a price |
|
NA156430000 | 54 | Pump 220-240v 50-60 hz 100 psi+ rectif.27935 | Ask for a price |
|
NA015644000 | Pump 100-120v 100 psi | Ask for a price | |
|
NA15643CM00 | Pump 220-240v 50-60 hz 100 psi +rectifier 27935 | Ask for a price | |
|
NA15644CM00 | Pump 100-120v 50-60 hz 100 psi + metal couplings | Ask for a price | |
|
NA015720000 | 55 | Elbow | Ask for a price |
|
NA015753000 | 56 | Extension for metal coupl. | Ask for a price |
|
NA15687T000 | 57 | Female quick disconnect coupling | Ask for a price |
|
NA156220000 | 58 | Elbow | Ask for a price |
|
NA157330000 | 59 | Hose f15 230mm | Ask for a price |
|
NA155460000 | 60 | Screw 5x25 | Ask for a price |
|
|
NA155171000 | 61 | WASHER 5x15x1,5 UNI 6593 INOX | Ask for a price |
|
NA15148G000 | 62 | Lower panel for elite(without hole for plug) | Ask for a price |
|
NA15148EP00 | Lower panel for elite (with hole for plug) | Ask for a price | |
|
NA152900000 | 63 | Pump radio interference suppressor | Ask for a price |
|
NA155380000 | 64 | Screw tc+ 3,9 x 13 | Ask for a price |
|
NA152360000 | 65 | Connecting terminal | Ask for a price |
|
NA152350000 | 66 | Motor radio interference suppressor | Ask for a price |
|
NA152690000 | 67 | Electrical socket for euro plug | Ask for a price |
|
|
NA155380000 | 68 | Screw tc+ 3,9 x 13 | Ask for a price |
|
NA151630000 | 69 | Bush | Ask for a price |
|
NA15291CH00 | 70 | Complete cable sheat l=900mm c/fili +2x262c for 220-240v | Ask for a price |
|
NA15291CHUS | 70 | Complete cable sheat l=900mm c/fili +2x262c for 100-120v | Ask for a price |
|
NA015536000 | 71 | Screw | Ask for a price |
|
NA151860000 | 73 | Panel gasket | Ask for a price |
|
|
NA015536000 | 74 | Screw | Ask for a price |
|
NA151564000 | 75 | Charis lower panel label | Ask for a price |
|
NA156080000 | 76 | Filter | Ask for a price |
|
NA157470000 | 77 | Ballast for water filter | Ask for a price |
|
NA157450000 | 78 | Extraflex hose 67cm | Ask for a price |
|
NA15702D000 | 79 | Coupling for water filter | Ask for a price |
|
NA151470000 | 80 | Neoprene washer | Ask for a price |
|
NA155400000 | 81 | Metal washer | Ask for a price |
|
NA157140000 | 82 | Quick disconnect - female | Ask for a price |
