Spare Parts for:

Nacecare

TP18SX Industrial Carpet Extractor 18 Gal

#NA802515600

Nacecare's TP18SX carpet extractor features two detachable 18-gallon tanks. This extractor is available in two models, with a 3-jet stainless steel handle or a Premium 2-jet handle.

Ask for a price

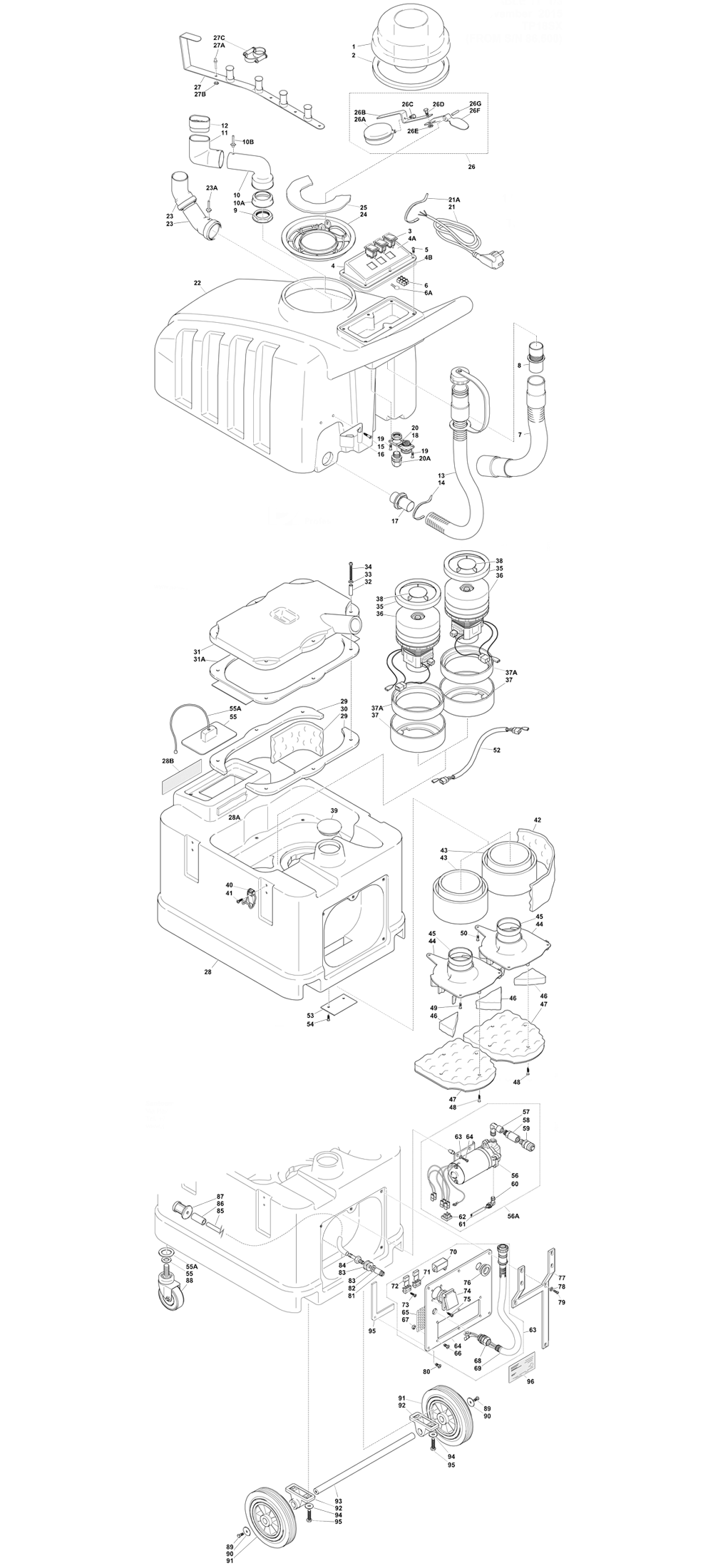

Parts Schema

Motor Assembly (1544) Serial Numbers 1544 and higher

SKU#	Label on drawing	Description	Ask for a price
NA178000000	1	Cover	Ask for a price
NA178C00000		Cover with gasket	Ask for a price
NA179000000	2	Gasket	Ask for a price
NA217000000	3	2 positions switch	Ask for a price
NA189000000	4	Panel	Ask for a price
NA1811NORTH	4A	Label for upper panel tp18sx	Ask for a price
NA128000000	4B	Inox wheel shaft with benzing ring	Ask for a price
NA551000000	5	Stainless steel screw tc+ 4x16	Ask for a price
NA236100000	6	Connecting terminal	Ask for a price
NA813200000	6A	Varistor (230v)	Ask for a price
NA3641CGRAC	7	Complete hose d.50 for grace-silent	Ask for a price
NA365200000	8	Hose nipple d.50 for grace silent	Ask for a price
NA548134000	9	Ring nut 1 + 3/4" for grace-silent	Ask for a price
NA153100000	10	Large elbow 90° without gasket	Ask for a price
NA153200000	10A	Gasket for large elbow 90°	Ask for a price
NA519000000	10B	Rivet 4 x 12	Ask for a price
NA131100000	11	Elbow for grace floater	Ask for a price
NA1591CGRSI	13	Complete drain hose for grace-silent	Ask for a price
NA541000000	14	Tie	Ask for a price
NA542000000	15	Screw 4,2x16	Ask for a price
NA160200000	16	Clip for drain hose d.38	Ask for a price
NA161200000	17	Hose nipple 1”1/4 for diam.38	Ask for a price
NA538000000	19	Screw tc+ 3,9x13	Ask for a price
NA109000000	20	Fairlead plate	Ask for a price
NA295000000	20A	Fairlead with nut	Ask for a price
NA020910000	21	Filter grid double	Ask for a price
NA215000000		Cable 3xawg14 l.15m. Sjtw-csa usa plug	Ask for a price
NA541000000	21A	Tie	Ask for a price
NA1510AZ000	22	Grace-silent blue upper tank	Ask for a price
NA183000000	23	Elbow	Ask for a price
NA519000000	23A	Rivet 4 x 12	Ask for a price
NA1707CGRAC	26	Complete floater for grace	Ask for a price
NA57504I000		Screw te 4x12 inox	Ask for a price
NA521000000		Locking washer diam. 4 zn	Ask for a price
NA523000000		Nut diam. 4mm	Ask for a price
NA171300000		Plate for maxi foam floater	Ask for a price
NA170700000		Spherical floater	Ask for a price
NA58206W000		Screw te 6x8 1/4x3/8 whitworth	Ask for a price
NA52106I000		Locking washer diam. 6 inox	Ask for a price
NA170410000		Moving part for grace floater	Ask for a price
NA170310000		Fixed part for grace floater	Ask for a price
NA202500000		Filtro ppi30 d.44	Ask for a price
NA491500000	27	Support for accessories and hoses grace-silent	Ask for a price
NA519000000	27A	Rivet 4 x 12	Ask for a price
NA529000000	27B	Washer 4x16x1 inox uni 6593	Ask for a price
NA117HOOK00	27C	Hook d.38 for ns300	Ask for a price
NA1520AZ000	28	Grace-silent blue lower tank	Ask for a price
NA155200000	28A	Washer Diam. 12x24	Ask for a price
NA155600000	29	Screw tc+ 5x30 uni 7687 inox	Ask for a price
NA206100000	30	Upper soundproofing part grace silent	Ask for a price
NA1550N0000	31	Manifold for tp18sx	Ask for a price
NA015541000	31A	Tie	Ask for a price
NA563520000	32	Thimble for manifold screws grace-silent	Ask for a price
NA517I00000	33	Washer 5x15x1,5 uni 6593 inox	Ask for a price
NA5713I0000	34	Screw tc+ 5x50 uni 7687 inox (3 stages)	Ask for a price
NA812130000	35	Motor gasket d.145x13 (3 stages-100v)	Ask for a price
NA132110000	37	Soundproofing upper cylinder for grace-silent	Ask for a price
NA812130000	37A	Motor gasket d.145x13 (3 stages-100v)	Ask for a price
NA824000000	38	Motor valve	Ask for a price
NA502430000	39	Round cap for grace lower tank	Ask for a price
NA142000000	40	Fairlead stay	Ask for a price
NA542000000	41	Screw 4,2x16	Ask for a price
NA206200000	42	Lower soundproofing part grace silent	Ask for a price
NA132120000	43	Soundproofing lower cylinder for grace-silent	Ask for a price
NA151412000	44	Lower flange grace-silent motor	Ask for a price
NA132200000	45	Round sealing part for motor cooling air	Ask for a price
NA132210000	46	Sealing part for grace cooling air	Ask for a price
NA2000C0000	47	Complete soundproofing panel (2000+2011)	Ask for a price
NA544000000	48	Screw tc+ 4.2x22 zn	Ask for a price
NA536000000	49	Stainless steel screw tc+ 4x10	Ask for a price
NA536000000	50	Stainless steel screw tc+ 4x10	Ask for a price
NA133400000	51	Cover for lower tank	Ask for a price
NA133410000	51A	Tie for lower tank cover	Ask for a price
NA297140000	52	Cable 3x1,5mmq for grace-silent l700mm	Ask for a price
NA148200000	53	Cover plate for cables grace-silent	Ask for a price
NA542000000	54	Screw 4,2x16	Ask for a price
NA597000000	55	Washer 20x37x3 uni 6592 zn	Ask for a price
NA540000000	55A	Washer 10x20x0,8	Ask for a price
NA643000000	56	Pump 220-240v 50-60 hz 100 psi+ rectifier 27935	Ask for a price
NA644000000		Pump 100-120v 50-60 hz 100 psi (internal rect.)	Ask for a price
NA643CM0000	56A	Pump 220-240v 50-60 hz 100 psi+ rectifier 27935 + fittings + metal coupling	Ask for a price
NA644CM0000		Pump 100-120v 50-60 hz 100 psi (internal rect.) +fittings + metal coupling	Ask for a price
NA720100000	57	Elbow Mf 3/8-3/8"	Ask for a price
NA753000000	58	Extension for metal coupling	Ask for a price
NA687T00000	59	Quick disconnect female – metal	Ask for a price
NA622000000	60	Elbow coupling m.3/8 for hose 6/8	Ask for a price
NA733000000	61	Hose for pump l=230mm	Ask for a price
NA279350000	62	Rectifier 35a 1000v gbpc	Ask for a price
NA517I00000	63	Washer 5x15x1,5 uni 6593 inox	Ask for a price
NA546000000	63A	Screw tc+ 5x25 din 7985 zn	Ask for a price
NA148100000	64	Lower control panel grace-silent	Ask for a price
NA1481USA00		Lower control panel grace-silent usa	Ask for a price
NAPAGRAUSA1I	64A	Complete lower panel for grace usa 1 motor (120v)	Ask for a price
NA180100000	65	Cooling plate grace-silent panel	Ask for a price
NA536000000	66	Stainless steel screw tc+ 4x10	Ask for a price
NA536200000		Screw tc+ 4x20 inox uni 7687	Ask for a price
NA523000000	67	Nut diam. 4mm	Ask for a price
NA262C00000	68	Connecting part for cable-panel	Ask for a price
NA290000000	70	Radio interference suppressor (230v)	Ask for a price
NA236000000	71	Connecting terminal	Ask for a price
NA235000000	72	Radio interference suppressor for motor (230v)	Ask for a price
NA561200000	73	Screw tc+ svasata 2,9x16 inox	Ask for a price
NA269000000	74	Electrical outlet for euro plug	Ask for a price
NA538000000	75	Screw tc+ 3,9x13	Ask for a price
NA163000000	76	Bush	Ask for a price
NA472340000	77	Plate for fixing heater / smartkit on grace-silent	Ask for a price
NA529000000	78	Washer 4x16x1 inox uni 6593	Ask for a price
NA536200000	79	Screw tc+ 4x20 inox uni 7687	Ask for a price
NA536000000	80	Stainless steel screw tc+ 4x10	Ask for a price
NA714000000	81	Quick disconnect female	Ask for a price
NA540000000	82	Washer 10x20x0,8	Ask for a price
NA147000000	83	Neoprene washer	Ask for a price
NA702D00000	84	Connecting part	Ask for a price
NA745000000	85	Extraflex hose for filter 67cm	Ask for a price
NA747000000	86	Ballast	Ask for a price
NA608000000	87	Filter	Ask for a price
NA115100000	88	Wheel	Ask for a price
NA582000000	89	Stainless steel screw te 6x14	Ask for a price
NA563200000	90	Washer 6x30x2 zn	Ask for a price
NA422000000	91	Wheel	Ask for a price
NA419N00000	92	Pillow block	Ask for a price
NA418100000	93	Shaft for wheels serena/elite	Ask for a price
NA594000000	94	Washer 8x24 zn	Ask for a price
NA583000000	95	Screw te 8x20 uni 5739 zn 8.8	Ask for a price
NA1571NORTH	96	Label for lower panel tp18sx	Ask for a price
NA186600000	97	Gasket for grace-silent panel	Ask for a price
