Spare Parts for:

Nacecare

TP18SX Industrial Carpet Extractor 18 Gal

#NA802515600

Nacecare's TP18SX carpet extractor features two detachable 18-gallon tanks. This extractor is available in two models, with a 3-jet stainless steel handle or a Premium 2-jet handle.

Ask for a price

Parts Schema

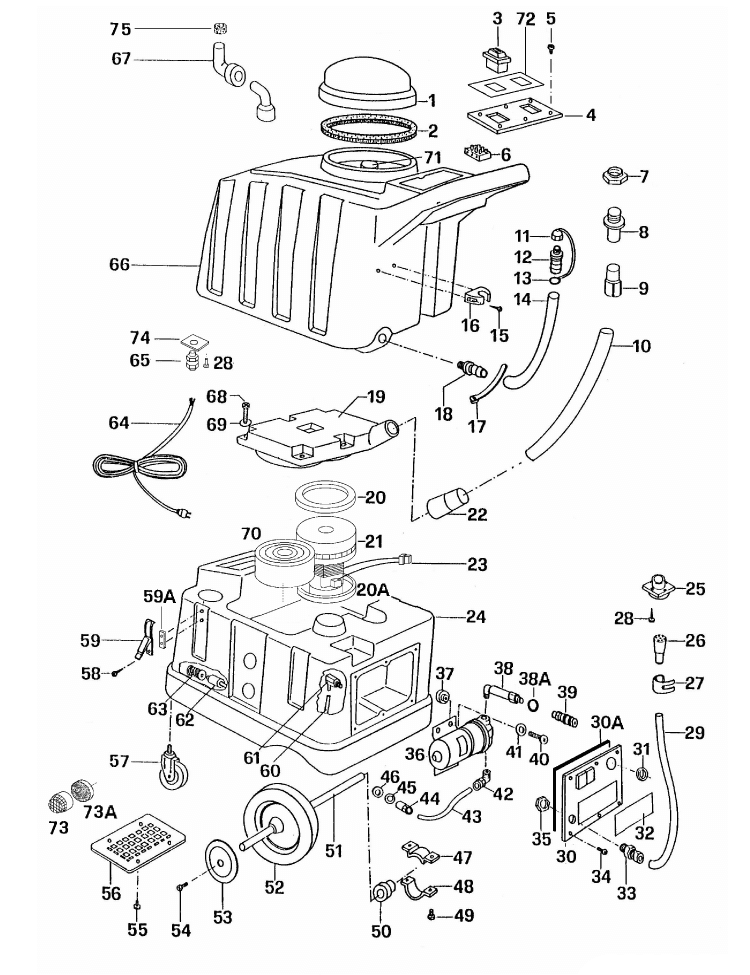

Upper Part Assembly (9701) Serial Numbers between 9701 to 0552

SKU#	Label on drawing	Description	Ask for a price
NA15178C000		Cover with gasket	Ask for a price
NA151790000	2	Gasket	Ask for a price
NA015217000	3	Switch	Ask for a price
NA151890000	4	Panel	Ask for a price
NA015536000	5	Screw	Ask for a price
NA152360000	6	Connecting terminal	Ask for a price
NA155480000	7	Nut	Ask for a price
NA153650000	8	Hose nipple	Ask for a price
NA153641C00	10	Complete hose d.50 for grace-silent	Ask for a price
NA015159000	11	Cap for TP8X Extractor	Ask for a price
NA015161000	12	Hose nipple	Ask for a price
NA015162000	13	Tie	Ask for a price
NA15358C000	14A	Complete drain hose - #29-31, #32-33	Ask for a price
NA155440000	15	Screw	Ask for a price
NA151600000	16	Clip	Ask for a price
NA015541000	17	Tie	Ask for a price
NA015161000	18	Hose nipple	Ask for a price
NA151551000	19	Manifold	Ask for a price
NA158250000	20	MOTOR GASKET 3mm	Ask for a price
NA158250000	20A	MOTOR GASKET 3mm	Ask for a price
NA158090000	21	3 stages motor 1300w 110-120v 50/60hz	Ask for a price
NA153641C00	22	Complete hose d.50 for grace-silent	Ask for a price
NA152340000	23	Connector	Ask for a price
NA152500000		Male electrical terminal	Ask for a price
NA151520000	24	Blue lower tank	Ask for a price
NA152592C00	25	Socket with wires	Ask for a price
NA152612C00	26,27,29	Wiring harness	Ask for a price
NA152650000	27	Tie	Ask for a price
NA155380000	28	Screw tc+ 3,9 x 13	Ask for a price
NA152610000	29	Cable sheath	Ask for a price
NA151480000	30	Panel	Ask for a price
NA151860000	30A	Panel gasket	Ask for a price
NA151630000	31	Bush	Ask for a price
NA151570000	32	Panel label	Ask for a price
NA152621000	33	Connecting part	Ask for a price
NA015536000	34	Screw	Ask for a price
NA155640000	35	Ring nut	Ask for a price
NA015644000	36	Pump 100-120v 100 psi	Ask for a price
NA15644C000	36A	Pump 100-120v 100 psi with fittings	Ask for a price
NA157360000	37	Vibration damping	Ask for a price
NA015720000	38	Elbow	Ask for a price
NA015753000		Extension for metal coupl.	Ask for a price
NA151370000	38A	O-ring for quick disconnect	Ask for a price
NA15687PE00		Female quick	Ask for a price
NA155460000	40	Screw 5x25	Ask for a price
NA156220000	42	Elbow	Ask for a price
NA157460000	43	Rilsan pipe	Ask for a price
NA157140000	44	Quick disconnect - female	Ask for a price
NA155400000	45	Metal washer	Ask for a price
NA151470000	46	Neoprene washer	Ask for a price
NA15419N000	47	Pillow block upper bearing flange	Ask for a price
NA154270000	47A	Distance plate for wheels	Ask for a price
NA155830000	49	Screw 8x20	Ask for a price
NA154180000	51	Shaft	Ask for a price
NA154220000	52	Wheel	Ask for a price
NA154230000	53	Wheel cover	Ask for a price
NA155820000	54	Stainless steel screw 6x14	Ask for a price
NA015536000	55	Screw	Ask for a price
NA151800000	56	Lower panel	Ask for a price
NA151150000	57	Wheel	Ask for a price
NA155450000	58	Screw Tc+ 3,9x19	Ask for a price
NA151420000	59	Coupler	Ask for a price
NA151670000	59A	Plate	Ask for a price
NA157450000	60	Extraflex hose 67cm	Ask for a price
NA157240000	61	Connecting part	Ask for a price
NA157020000		Connecting part	Ask for a price
NA157470000	62	Ballast for water filter	Ask for a price
NA156080000	63	Filter	Ask for a price
NA152150000	64	Cable 3 x 14 awg x 15m	Ask for a price
NA152950000	65	Fairlead with nut	Ask for a price
NA151510000	66	Blue upper tank	Ask for a price
NA151310000	67	Elbow	Ask for a price
NA155710000	68	Screw	Ask for a price
NA152030000	70	Spacer	Ask for a price
NA151830000	71	Elbow 45°	Ask for a price
NA151811000	72	Upper panel label	Ask for a price
NA151163800	73	Plastic filter	Ask for a price
NA152024000	73A	Filter ppi45 d.40	Ask for a price
NA151090000	74	Fairlead plate	Ask for a price
NA151880000	75	Vacuum filter	Ask for a price
