TP18SX Industrial Carpet Extractor 18 Gal #NA802515600

Spare Parts for:

TP18SX Industrial Carpet Extractor 18 Gal
#NA802515600


Nacecare's TP18SX carpet extractor features two detachable 18-gallon tanks. This extractor is available in two models, with a 3-jet stainless steel handle or a Premium 2-jet handle.

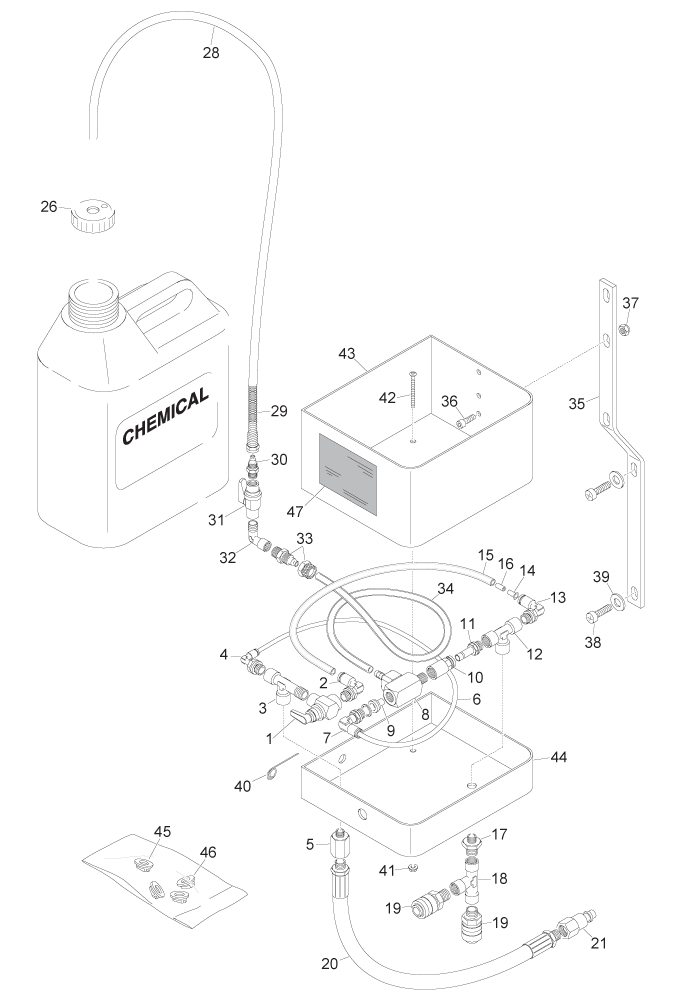

Parts Schema
Smart Kit PRE Spray System (0001) Serial Numbers between 0001 to 1010
Image SKU# Label on drawing Description Ask for a price
NA156172000 1 Ball valve 90° 1/8 Ask for a price
NA156053A00 2 Elbow automatic coupling r31 m.1/8 6/8 Ask for a price
NA157223200 3 “T” coupling ffm a13 1/8 Ask for a price
NA156052A00 4 Swivel elbow r31 for d.4 pipe Ask for a price
NA156831000 5 Coupling fm a5z 1/4-1/8 cilindr Ask for a price
NA156936000 6 Hose 4/2,5 l=33cm Ask for a price
NA156052A00 7 Swivel elbow r31 for d.4 pipe Ask for a price
NA159045200 8 Dema chemical injector 1/8 – 1/8 Ask for a price
NA159045303 9 Bushing 03 type for dema injector Ask for a price
NA157140000 10 Quick disconnect - female Ask for a price
NA156980000 11 Quick disconnect male Ask for a price
NA157221000 12 “T” coupling fff a11 1/8 Ask for a price
NA156053A00 13 Elbow automatic coupling r31 m.1/8 6/8 Ask for a price
NA157491000 14 Restrictor Ask for a price
NA157406100 15 Rilsan hose 6/8 l=260mm Ask for a price
NA159045304 16 Bushing 04 type for dema injector Ask for a price
NA157490000 17 Nipple a2 1/4 - 1/8 Ask for a price
NA157221100 18 “T” coupling fff a11 1/4 Ask for a price
NA15687PE00 19 Female quick Ask for a price
NA15344L8IN 20 Pressure hose 6x14 l=380mm m. 1/4 + m. 1/4 Ask for a price
NA15689PE00 21 Quick disconnect male – att. F-1/4” – metal Ask for a price
NA802094600 26 Chemical cap 90 degree elbow Ask for a price
NA157352200 28 Poly tube 6/8 l=50cm Ask for a price
NA156160200 29 Spring for 6/8 poly tube Ask for a price
NA156160000 30 Coupling c1 8/6 1/8 Ask for a price
NA156171000 31 Solution valve f-f 1/8” Ask for a price
NA156260000 32 Elbow Ask for a price
NA156160000 33 Coupling c1 8/6 1/8 Ask for a price
NA157352200 34 Poly tube 6/8 l=50cm Ask for a price
NA154723000 35 Locking plate Ask for a price
NA155741000 36 Screw tc brugola 6x16 zn Ask for a price
NA15562A000 37 Locking nut – diam. 6 Ask for a price
NA155362500 38 Stainless steel screw tc+ 4x25 Ask for a price
NA155290000 39 Stainless steel washer 4x16 Ask for a price
NA156072000 40 Pin for smartkit bushing cleaning Ask for a price
NA15562R000 41 Nut diam.6 ma zn with washer Ask for a price
NA155765000 42 Screw 6x50 inox Ask for a price
NA154920000 43 Chemical tank holder Ask for a price
NA154918000 44 Housing Ask for a price
NA157190000 45 Nozzle 02/80 (for using smakrtkit with hand tool) Ask for a price
NA157300000 46 Nozzle tip 0,15/80 Ask for a price
