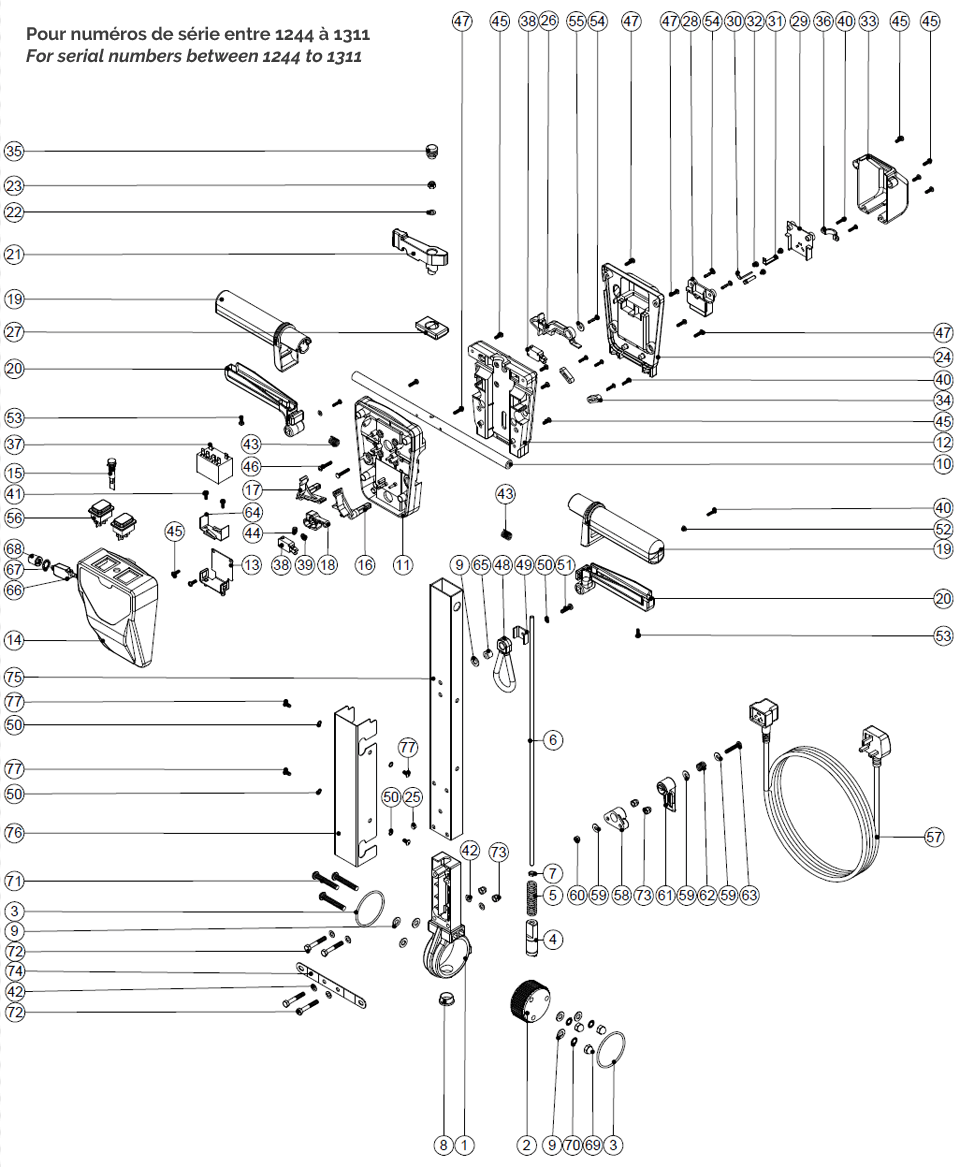

| Image | SKU# | Label on drawing | Description | Ask for a price |
|---|---|---|---|---|
|
NA229081000 | 1 | Handle casting machined | Ask for a price |
|
NA229074000 | 2 | Adjustment gear | Ask for a price |
|
NA219254000 | 3 | O ring 3mm dia x 60mm i/d | Ask for a price |
|
NA229073000 | 4 | Gear locking pin | Ask for a price |
|
NA229138000 | 5 | Spring | Ask for a price |
|
NA229462000 | 6 | 510mm handle locking rod | Ask for a price |
|
NA219099000 | 7 | M6 half nut | Ask for a price |
|
NA229099000 | 8 | 25mm dia hole plug | Ask for a price |
|
NA219010000 | 9 | M8 form a washer | Ask for a price |
|
NA338269000 | 10 | Cross tube | Ask for a price |
|
NA227576000 | 11 | Front inner half moulding | Ask for a price |
|
NA229508000 | 11 | Flame retardant front inner half moulding | Ask for a price |
|
NA227577000 | 12 | Rear inner half moulding | Ask for a price |
|
NA329484000 | 12 | Modified rear inner half moulding (csa spec) flame retardant csa spec | Ask for a price |
|
NA303526000 | 13 | Nutserted relay mounting bracket | Ask for a price |
|
NA229748000 | 14 | Front cover moulding (mains & battery) | Ask for a price |
|
NA229750000 | 14 | Mains front cover moulding (c/b hole) 110v/50hz machines | Ask for a price |
|
NA229751000 | 14 | Mains front cover moulding (c/b hole) (flame retardant) 120v/60hz flame retardent machines | Ask for a price |
|
NA220812000 | 15 | 230v neon indicator & red lens | Ask for a price |
|
NA220813000 | 15 | 120v neon indicator & red lens | Ask for a price |
|
NA227585000 | 16 | Left hand switch operating lever moulding | Ask for a price |
|
NA227586000 | 17 | Right hand switch operating lever moulding | Ask for a price |
|
NA227587000 | 18 | Centre switch operating lever moulding | Ask for a price |
|
NA227580000 | 19 | Hand grip moulding | Ask for a price |
|
NA227583000 | 21 | Adjustment lever moulding | Ask for a price |
|
NA219493000 | 22 | M6 nylon washer | Ask for a price |
|
NA219088000 | 23 | M6 nylon insert nut | Ask for a price |
|
NA227676000 | 24 | Rear cover | Ask for a price |
|
NA229507000 | 24 | Mains type flame retardant rear cover moulding flame retardant csa spec | Ask for a price |
|
NA229009000 | 25 | Blanking plug | Ask for a price |
|
NA227584000 | 26 | Interlock lever moulding | Ask for a price |
|
NA227582000 | 27 | Handle plug moulding | Ask for a price |
|
NA227691000 | 28 | Terminal block | Ask for a price |
|
NA229510000 | 28 | Flame retardant terminal block flame retardant csa spec | Ask for a price |
|
NA227680000 | 29 | Terminal block cover | Ask for a price |
|
NA229511000 | 29 | Flame retardant terminal block cover | Ask for a price |
|
NA206562000 | 30 | Contact pin | Ask for a price |
|
NA206563000 | 31 | Earth contact pin | Ask for a price |
|
NA219090000 | 32 | M4 x 8mm long pozi pan sems screw | Ask for a price |
|
NA227678000 | 33 | Socket cover | Ask for a price |
|
NA229512000 | 33 | Flame retardant inlet cover flame retardant csa spec | Ask for a price |
|
NA227008000 | 34 | Black cable clamp | Ask for a price |
|
NA329485000 | 34 | Black cable clamp flame retardant csa spec | Ask for a price |
|
NA20638V000 | 35 | 19mm black tube end stop | Ask for a price |
|
NA216290000 | 36 | Cable clamp | Ask for a price |
|
NA206575000 | 37 | 240v / 25a relay | Ask for a price |
|
NA206576000 | 37 | 100v-120v / 25a relay | Ask for a price |
|
NA229483000 | 38 | Snap action switch | Ask for a price |
|
NA219805000 | 39 | 4mm spirefix | Ask for a price |
|
NA219107000 | 40 | No6 x 5/8 inch long pozi pan plastite screw | Ask for a price |
|
NA219471000 | 41 | M4 x 12mm long pozi pan sems screw | Ask for a price |
|
NA219007000 | 42 | M6 form b washer | Ask for a price |
|
NA219803000 | 43 | Trigger compression spring | Ask for a price |
|
NA219804000 | 44 | Switch compression spring | Ask for a price |
|
NA219569000 | 45 | No8.1/2 inch. Lg.pozi-pan.screw.stainless steel.plastite | Ask for a price |
|
NA219811000 | 46 | No8 x 1 inch long pozi-pan self tap screw | Ask for a price |
|
NA219105000 | 47 | No8 X 5/8 INCH LONG POZI PAN PLASTITE SCREW | Ask for a price |
|
NA226008000 | 48 | Stress relief | Ask for a price |
|
NA329231000 | 49 | Stress relief bracket | Ask for a price |
|
NA219016000 | 50 | M5 shakeproof washer | Ask for a price |
|
NA219054000 | 51 | M5 x 20mm long pozi pan screw | Ask for a price |
|
NA219206000 | 52 | M4 form a washer | Ask for a price |
|
NA219270000 | 53 | No8 X 1/2 INCH LONG POZI PAN SELF TAP SCREW | Ask for a price |
|
NA219568000 | 54 | No8 x 3/4 inch long pozi pan stainless steel screw | Ask for a price |
|
NA219005000 | 55 | M5 form g washer | Ask for a price |
|
NA270146000 | 56 | Green illuminated switch + membrane | Ask for a price |
|
NA236012000 | 57 | 20.0m x 1.50mm x 3 core nucable (uk plug) | Ask for a price |
|
NA236132000 | 57 | 20m x 1.5mm x 3 core yellow cable x socket (euro plug) | Ask for a price |
|
NA236020000 | 57 | 20.0m x 1.5mm x 3 core nucable (swiss plug) | Ask for a price |
|
NA236024000 | 57 | 20.0m x 1.50mm x 3 core nucable (south african plug) | Ask for a price |
|
NA236068000 | 57 | 20.0mt x 1.5mm x 3 core cable (16a socket + 10a plug) australian | Ask for a price |
|
NA236118000 | 57 | 20.0M x 1.5MM X 3 CORE NUCABLE (16 AMP INDUSTRIAL PLUG) | Ask for a price |
|
NA236028000 | 57 | 20.0m x 14awg x 3 core yellow nucable (csa plug) | Ask for a price |
|
NA227806000 | 57 | Cable release base moulding | Ask for a price |
|
NA219644000 | 59 | M5 form g stainless steel washer | Ask for a price |
|
NA219076000 | 60 | M5 nylon insert nut | Ask for a price |
|
NA227807000 | 61 | Cable release top moulding | Ask for a price |
|
NA206599000 | 62 | Spring (ref:c5514370) | Ask for a price |
|
NA219720000 | 63 | M5 x 30mm long stainless steel pozi pan screw | Ask for a price |
|
NA206500000 | 64 | Relay bracket | Ask for a price |
|
NA226006000 | 65 | Spacer (black) | Ask for a price |
|
NA220440000 | 66 | 8 amp overload 120v/60hz flame retardent machines | Ask for a price |
|
NA208550000 | 66 | 15 amp overload 110v/50hz machines | Ask for a price |
|
NA219702000 | 67 | M10 internal lock washer 110v & 120v machines | Ask for a price |
|
NA220459000 | 68 | Overload dust cover 110v & 120v machines | Ask for a price |
|
NA219632000 | 69 | M8 stainless steel dome nut | Ask for a price |
|
NA219018000 | 70 | M8 shakeproof washer | Ask for a price |
|
NA219922000 | 71 | M8 x 50mm long socket button head stainless steel bolt | Ask for a price |
|
NA21965V000 | 72 | M6 x 40mm long hex bolt | Ask for a price |
|
NA219080000 | 73 | M6 domenut | Ask for a price |
|
NA392298000 | 74 | Twintech handle clamp | Ask for a price |
|
NA404159000 | 75 | Processed 500mm handle tube paint anthracite grey | Ask for a price |
|
NA404165000 | 76 | Tt handle cover - painted anthracite grey | Ask for a price |
|
NA291004000 | 77 | M5 x 10mm long stainless steel button head screw | Ask for a price |
