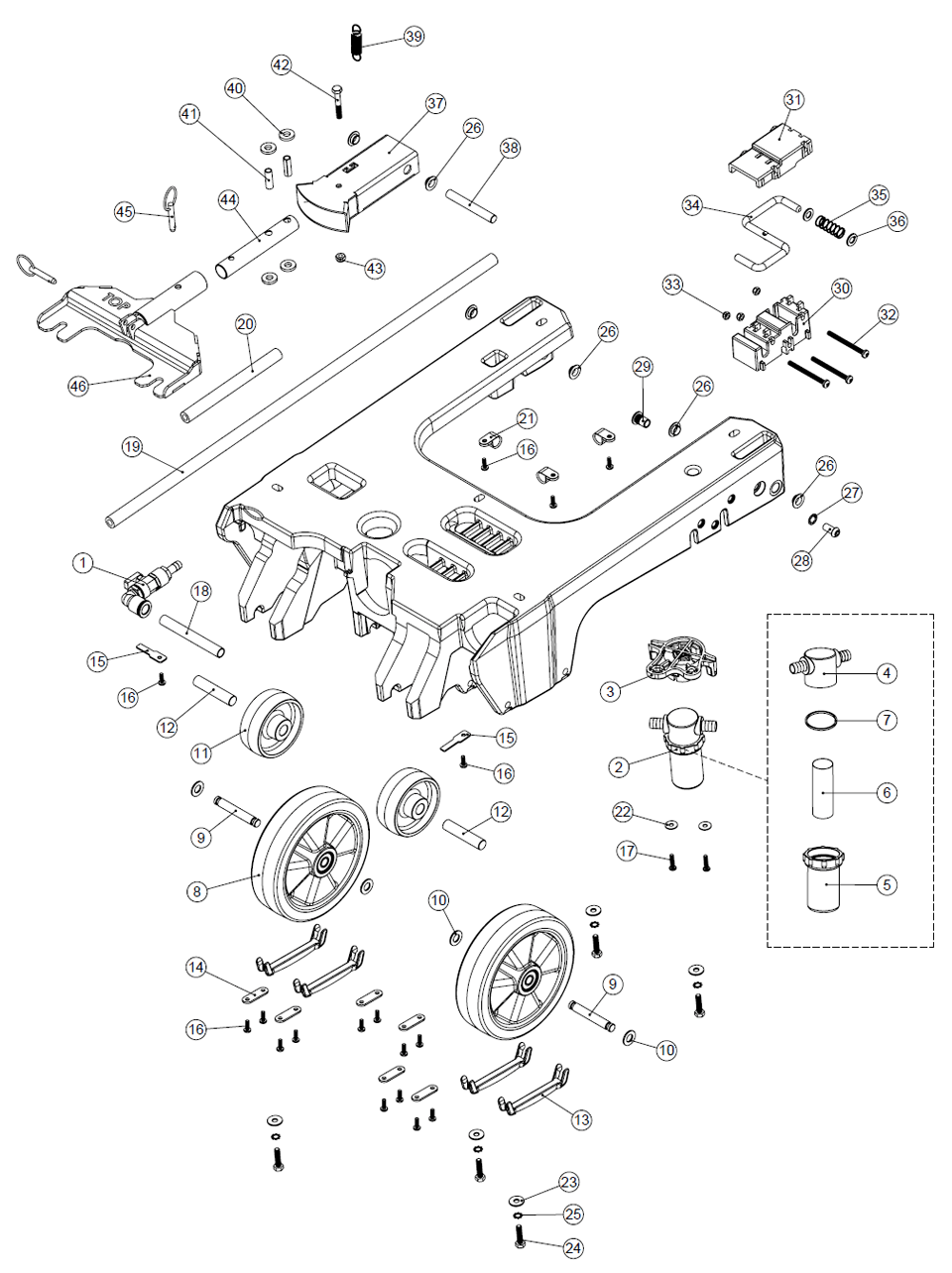

| Image | SKU# | Label on drawing | Description | Ask for a price |
|---|---|---|---|---|
|
NA904902000 | 0 | Hgb plastic chassis (black) hgb | Ask for a price |
|
NA901543000 | 1 | 12mm swivel elbow push fit to 10mm hose tail ball valve - assembly | Ask for a price |
|
NA208888000 | 2 | Extended strainer | Ask for a price |
|
NA901006000 | 3 | Filter mounting bracket | Ask for a price |
|
NA208827000 | 4 | Strainer black top spare part | Ask for a price |
|
NA002088900 | 5 | Extended strainer clear bowl spare part for TTB 1117 | Ask for a price |
|
NA208889000 | 6 | Extended strainer 50 mesh screen spare part | Ask for a price |
|
NA208830000 | 7 | Strainer gasket spare part | Ask for a price |
|
NA208638000 | 8 | 160mm WHEEL WITH POLYURETHENE TIRE | Ask for a price |
|
NA903577000 | 9 | Axle bar st/st 10mm dia. 68mm long | Ask for a price |
|
NA219903000 | 10 | M10 form a stainless steel washer | Ask for a price |
|
NA206713000 | 11 | 80mm diameter black wheel | Ask for a price |
|
NA903576000 | 12 | Axle bar st/st 12.7mm dia. 60mm long | Ask for a price |
|
NA903597000 | 13 | Axle clip | Ask for a price |
|
NA903596000 | 14 | Axle plate | Ask for a price |
|
NA903594000 | 15 | Tap plate | Ask for a price |
|
NA219569000 | 16 | No8.1/2 inch. Lg.pozi-pan.screw.stainless steel.plastite | Ask for a price |
|
NA219568000 | 17 | No8 x 3/4 inch long pozi pan stainless steel screw | Ask for a price |
|
NA903573000 | 18 | Nylon tube 12mm od x 10mm id (96mm +-1.0) | Ask for a price |
|
NA903580000 | 19 | Silicon tube 640mm long x 8mm i/d x 14.4mm od | Ask for a price |
|
NA903581000 | 20 | Silicon tube 155mm long x 8mm i/d x 14.4mm od | Ask for a price |
|
NA219465000 | 21 | P-clip | Ask for a price |
|
NA219644000 | 22 | M5 form g stainless steel washer | Ask for a price |
|
NA219647000 | 23 | M6 form g stainless steel washer | Ask for a price |
|
NA219925000 | 24 | M6 x 25MM LONG STAINLESS STEEL HEX SCREW | Ask for a price |
|
NA902353000 | 25 | M6 external shakeproof washer stainless steel | Ask for a price |
|
NA208312000 | 26 | Igus bearing (gfm 101205) | Ask for a price |
|
NA902520000 | 27 | M8 internal washer shakeproof stainless steel | Ask for a price |
|
NA903566000 | 28 | M8x16mm long stainless steel socket button head bolt | Ask for a price |
|
NA903565000 | 29 | M8 stainless steel headed nutsert | Ask for a price |
|
NA901280000 | 30 | Latch block bottom moulding | Ask for a price |
|
NA901279000 | 31 | Latch block top moulding | Ask for a price |
|
NA901558000 | 32 | M5 x 60mm stainless steel pozi pan machine screw | Ask for a price |
|
NA219633000 | 33 | M5 stainless steel nylon insert nut | Ask for a price |
|
NA904440000 | 34 | Deck latch bar | Ask for a price |
|
NA208578000 | 35 | Deck lock spring | Ask for a price |
|
NA219578000 | 36 | M8 form a stainless steel washer | Ask for a price |
|
NA304359000 | 37 | Tt/ttb/4045/4055 squeegee mount weld assembly | Ask for a price |
|
NA903575000 | 38 | Axle bar st/st 10mm dia. 75mm long | Ask for a price |
|
NA208619000 | 39 | Floor tool spring | Ask for a price |
|
NA206964000 | 40 | Slide nylon spacer | Ask for a price |
|
NA206954000 | 41 | Spiro spacer | Ask for a price |
|
NA291125000 | 42 | M6 x 40 long hex bolt stainless steel | Ask for a price |
|
NA219642000 | 43 | M6 stainless steel nylon insert nut | Ask for a price |
|
NA304356000 | 44 | Floor tool pivot tube | Ask for a price |
|
NA206953000 | 45 | Detent pins | Ask for a price |
|
NA304466000 | 46 | Floor tool bracket assembly (tt/ttb4045/4055) | Ask for a price |
|
NA903589000 | 47 | Tt/b plastic chassis | Ask for a price |
