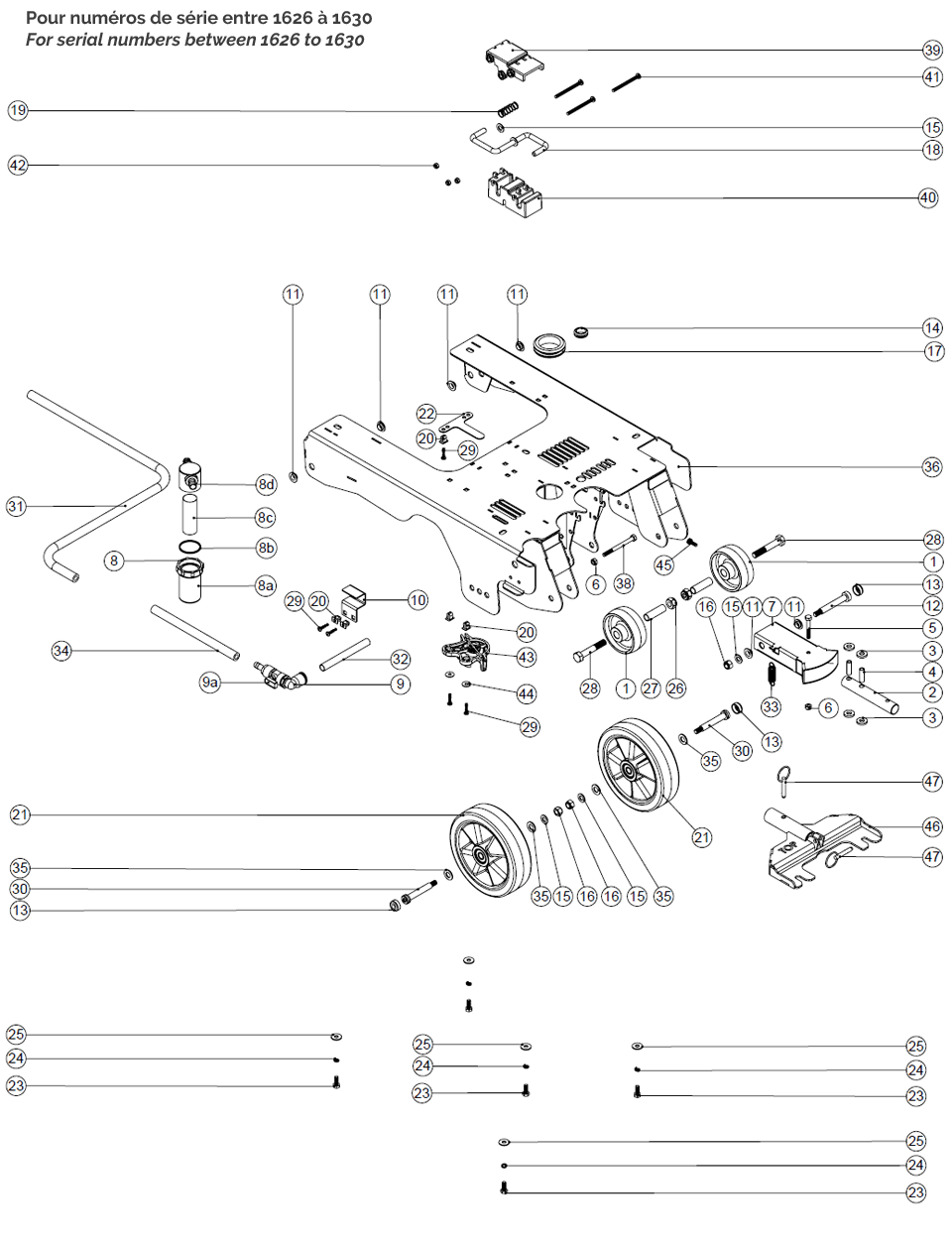

| Image | SKU# | Label on drawing | Description | Ask for a price |
|---|---|---|---|---|
|
NA206713000 | 1 | 80mm diameter black wheel | Ask for a price |
|
NA304356000 | 2 | Floor tool pivot tube | Ask for a price |
|
NA206964000 | 3 | Slide nylon spacer | Ask for a price |
|
NA206954000 | 4 | Spiro spacer | Ask for a price |
|
NA291125000 | 5 | M6 x 40 long hex bolt stainless steel | Ask for a price |
|
NA219642000 | 6 | M6 stainless steel nylon insert nut | Ask for a price |
|
NA304359000 | 7 | Tt/ttb/4045/4055 squeegee mount weld assembly | Ask for a price |
|
NA208888000 | 8 | Extended strainer | Ask for a price |
|
NA002088900 | 8a | Extended strainer clear bowl spare part for TTB 1117 | Ask for a price |
|
NA208830000 | 8b | Strainer gasket spare part | Ask for a price |
|
NA208889000 | 8c | Extended strainer 50 mesh screen spare part | Ask for a price |
|
NA208827000 | 8d | Strainer black top spare part | Ask for a price |
|
NA901543000 | 9 | 12mm swivel elbow push fit to 10mm hose tail ball valve - assembly | Ask for a price |
|
NA901544000 | 9a | Tap handle c/w cover and m3x6mm screw (spare item) spare part | Ask for a price |
|
NA392314000 | 10 | 10mm tap bracket | Ask for a price |
|
NA208312000 | 11 | Igus bearing (gfm 101205) | Ask for a price |
|
NA208574000 | 12 | M8 x 10 x 60mm long hex socket shoulder bolt | Ask for a price |
|
NA237632000 | 13 | Shoulder bolt cover | Ask for a price |
|
NA219631000 | 14 | 19mm grommet | Ask for a price |
|
NA219578000 | 15 | M8 form a stainless steel washer | Ask for a price |
|
NA219639000 | 16 | M8 stainless steel nylon insert nut | Ask for a price |
|
NA208771000 | 17 | Tpr open grommet tt4045/55 only (mains) | Ask for a price |
|
NA304358000 | 18 | Deck lock bar weld assembly | Ask for a price |
|
NA208578000 | 19 | Deck lock spring | Ask for a price |
|
NA900986000 | 20 | Nylon grommet nut (plastic insert to suit no 8 plastite screw) | Ask for a price |
|
NA208638000 | 21 | 160mm WHEEL WITH POLYURETHENE TIRE | Ask for a price |
|
NA321902000 | 22 | Silencer clamp | Ask for a price |
|
NA219719000 | 23 | M6 x 16mm long hexagonal stainless steel head bolt | Ask for a price |
|
NA219718000 | 24 | Washer.m6.spring.stainless steel | Ask for a price |
|
NA219647000 | 25 | M6 form g stainless steel washer | Ask for a price |
|
NA219897000 | 26 | M10 stainless steel nylon insert nut | Ask for a price |
|
NA391440000 | 27 | 1/2 inch x 18g x 41mm long stainless steel spacer tube | Ask for a price |
|
NA219894000 | 28 | M10 x 60mm long hexagonal stainless steel bolt | Ask for a price |
|
NA219568000 | 29 | No8 x 3/4 inch long pozi pan stainless steel screw | Ask for a price |
|
NA291057000 | 30 | M8 x 10 x 55mm long hex socket shoulder bolt | Ask for a price |
|
NA391216000 | 31 | Silicon tube 8mm i/d x 3.2mm wall section (cut 600mm) | Ask for a price |
|
NA901555000 | 32 | Nylon tube 12mm od x 10mm id (110mm) | Ask for a price |
|
NA208619000 | 33 | Floor tool spring | Ask for a price |
|
NA391215000 | 34 | Silicon tube 200mm long x 8mm i/d x 3.2mm wall section | Ask for a price |
|
NA219903000 | 35 | M10 form a stainless steel washer | Ask for a price |
|
NA900213000 | 36 | Tt/4045/4055 chassis weld assy (12swg s/s) (2014 model) | Ask for a price |
|
NA219558000 | 37 | M5 stainless steel nutsert | Ask for a price |
|
NA291167000 | 38 | M6 x 70mm long hex head bolt stainless steel | Ask for a price |
|
NA901279000 | 39 | Latch block top moulding | Ask for a price |
|
NA901280000 | 40 | Latch block bottom moulding | Ask for a price |
|
NA901558000 | 41 | M5 x 60mm stainless steel pozi pan machine screw | Ask for a price |
|
NA219633000 | 42 | M5 stainless steel nylon insert nut | Ask for a price |
|
NA901006000 | 43 | Filter mounting bracket | Ask for a price |
|
NA219644000 | 44 | M5 form g stainless steel washer | Ask for a price |
|
NA291132000 | 45 | M5 x 16mm long stainless steel pozi pan sems screw | Ask for a price |
|
NA304466000 | 46 | Floor tool bracket assembly (tt/ttb4045/4055) | Ask for a price |
|
NA206953000 | 47 | Detent pins | Ask for a price |
