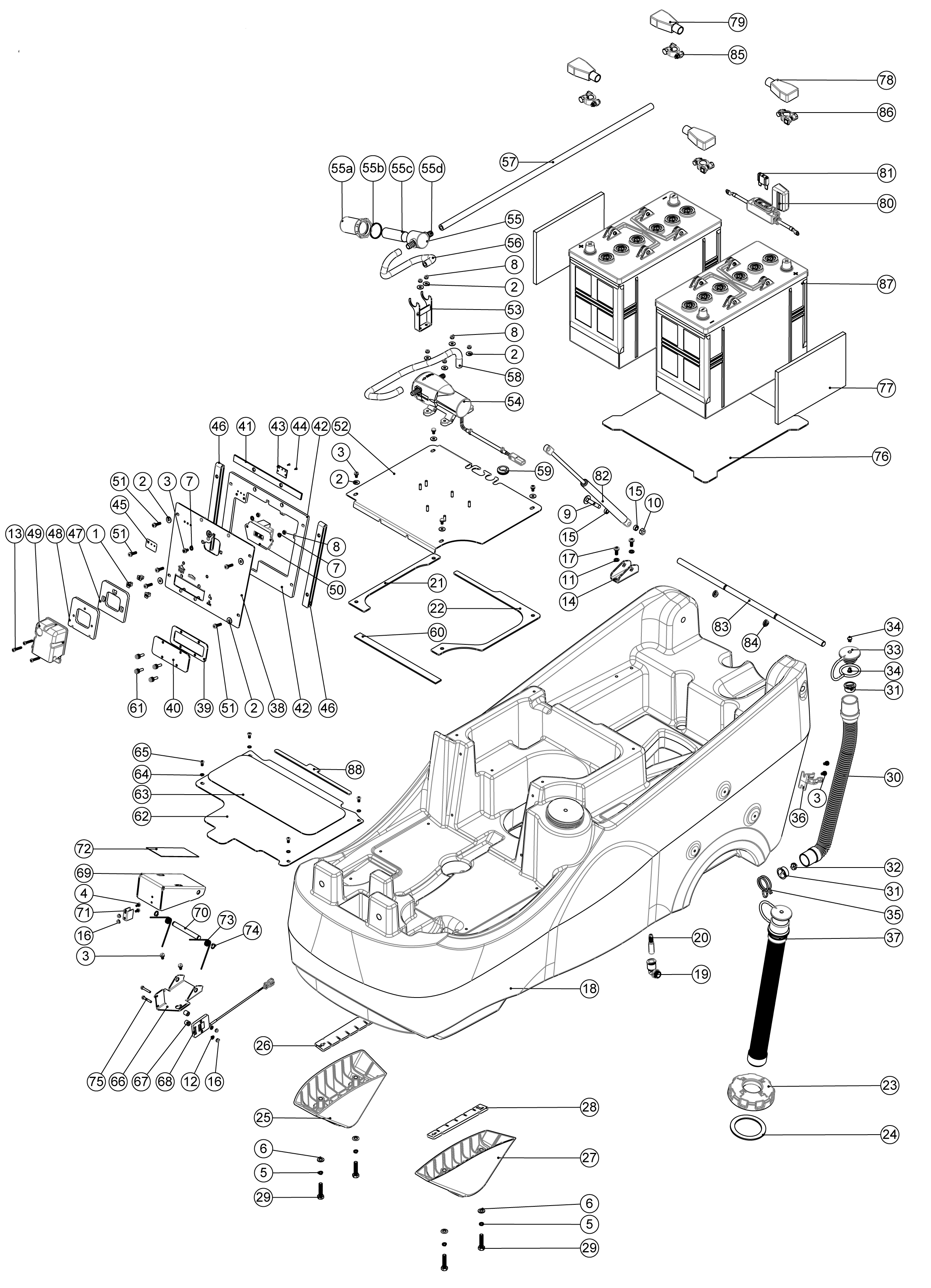

| Image | SKU# | Label on drawing | Description | Ask for a price |
|---|---|---|---|---|
|
NA900986000 | 1 | Nylon grommet nut (plastic insert to suit no 8 plastite screw) | Ask for a price |
|
NA219644000 | 2 | M5 form g stainless steel washer | Ask for a price |
|
NA291135000 | 3 | M5 x 10mm long stainless steel pozi pan sems screw | Ask for a price |
|
NA219697000 | 4 | m4 x 8mm long pozi pan stainless steel screw | Ask for a price |
|
NA219898000 | 5 | M8 single coil stainless steel washer | Ask for a price |
|
NA219578000 | 6 | M8 form a stainless steel washer | Ask for a price |
|
NA219355000 | 7 | M5 form a stainless steel washer | Ask for a price |
|
NA219633000 | 8 | M5 stainless steel nylon insert nut | Ask for a price |
|
NA291120000 | 9 | M8 x 40 carriage bolt s/s | Ask for a price |
|
NA219639000 | 10 | M8 stainless steel nylon insert nut | Ask for a price |
|
NA219870000 | 11 | M6 form a washer stainless steel | Ask for a price |
|
NA219688000 | 12 | M4 form a stainless steel washer | Ask for a price |
|
NA219369000 | 13 | No8 X 1 INCH LONG POZI PAN STAINLESS STEEL PLASTITE SCREW | Ask for a price |
|
NA392455000 | 14 | Gas strut bracket - carriage bolt | Ask for a price |
|
NA291121000 | 15 | Nylon spacer i/d 8.2mm x o/d 12mm x 5mm lg | Ask for a price |
|
NA219687000 | 16 | M4 stainless steel nylon insert nut | Ask for a price |
|
NA219646000 | 17 | M6 x 16mm long pozi pan stainless steel screw traction machines only | Ask for a price |
|
NA237682000 | 18 | Mini ride on bottom tank | Ask for a price |
|
NA901539000 | 19 | Elbow angle connector 3/8 parallel thread c/w o-ring to 12mm push in | Ask for a price |
|
NA901534000 | 20 | Push in barbed connector - 12mm od 8mm id | Ask for a price |
|
NA203028000 | 21 | Cro pump plate gasket rh | Ask for a price |
|
NA203027000 | 22 | Cro pump plate gasket lh | Ask for a price |
|
NA237174000 | 23 | Filler cap with filler hose hole | Ask for a price |
|
NA208564000 | 24 | Filler cap sealing ring | Ask for a price |
|
NA237684000 | 25 | Bottom tank scuff moulding rhs | Ask for a price |
|
NA392464000 | 26 | Rhs scuff moulding spacer | Ask for a price |
|
NA237685000 | 27 | Bottom tank scuff moulding lhs | Ask for a price |
|
NA392465000 | 28 | Lhs scuff moulding spacer | Ask for a price |
|
NA291112000 | 29 | M8 x 40 long hex bolt stainless steel | Ask for a price |
|
NA208938000 | 30 | 25mm x 455mm lg dump hose | Ask for a price |
|
NA904108000 | 31 | Float stop moulding | Ask for a price |
|
NA904109000 | 32 | Float moulding | Ask for a price |
|
NA903341000 | 33 | 32mm hose cap red (c/w 8mm hole) | Ask for a price |
|
NA904403000 | 34 | Barbed rivet black | Ask for a price |
|
NA902133000 | 35 | Spring wire clamp (ydnac-y8010356) | Ask for a price |
|
NA901916000 | 36 | 28mm HOSE CLIP | Ask for a price |
|
NA903696000 | 37 | 28mm x 370mm long 3:1 stretch hose c/w red cap & strap | Ask for a price |
|
NA906657000 | 38 | Electronics front cover assy painted silver (crg) | Ask for a price |
|
NA906659000 | 39 | Fuse panel gasket (crg) | Ask for a price |
|
NA906655000 | 40 | Fuse panel cover | Ask for a price |
|
NA906663000 | 41 | Front cover top gasket | Ask for a price |
|
NA906654000 | 42 | Electronics front cover spacer plate (crg) | Ask for a price |
|
NA280002000 | 43 | Led charger display pcb meanwell | Ask for a price |
|
NA219978000 | 44 | M2 x 6mm long pozi pan screw | Ask for a price |
|
NA208978000 | 45 | Charger lights overlay mentzer & meanwell only | Ask for a price |
|
NA280008000 | 46 | Front cover plate gasket | Ask for a price |
|
NA904505000 | 47 | Iec socket spacer pp | Ask for a price |
|
NA904504000 | 48 | Iec socket secondary spacer pp | Ask for a price |
|
NA904032000 | 49 | 240v emi filter with socket cover assembly c/w flap | Ask for a price |
|
NA906495000 | 49 | 120v emi filter (10a) with socket cover assembly c/w flap 120v 20a charger | Ask for a price |
|
NA904033000 | 49 | 120v emi filter with socket cover assembly c/w flap 120v 10a charger | Ask for a price |
|
NA906722000 | 50 | Brush engage pcb assembly | Ask for a price |
|
NA291133000 | 51 | M5 x 20mm long stainless steel pozi pan sems screw | Ask for a price |
|
NA392419000 | 52 | Cro pump and filter plate weld stud assy | Ask for a price |
|
NA304521000 | 53 | Filter plate assembly | Ask for a price |
|
NA230278000 | 54 | Water pump assembly | Ask for a price |
|
NA208888000 | 55 | Extended strainer | Ask for a price |
|
NA002088900 | Extended strainer clear bowl spare part for TTB 1117 | Ask for a price | |
|
NA208830000 | Strainer gasket spare part | Ask for a price | |
|
NA208889000 | Extended strainer 50 mesh screen spare part | Ask for a price | |
|
NA208827000 | Strainer black top spare part | Ask for a price | |
|
NA391525000 | 56 | Cro filter to pump tube 300mm lg | Ask for a price |
|
NA391526000 | 57 | Cro tank to filter tube 700mm lg | Ask for a price |
|
NA904296000 | 58 | Cro pump to flow divider tube 470mm lg crg8072 | Ask for a price |
|
NA391527000 | 58 | Cro pump to brush deck tube 980mm lg | Ask for a price |
|
NA219934000 | 59 | Grommet | Ask for a price |
|
NA906664000 | 60 | 3mm x 19mm inseal type 3259 (270mm) | Ask for a price |
|
NA904491000 | 61 | M5 x16mm SLOT KNURLED THUMB SCREW NYLON (WHITE) | Ask for a price |
|
NA392421000 | 62 | Foot plate | Ask for a price |
|
NA208998000 | 63 | Anti-slip tread pad (self adhesive) | Ask for a price |
|
NA291084000 | 64 | Washer.m5.shakeproof.stainless steel | Ask for a price |
|
NA291004000 | 65 | M5 x 10mm long stainless steel button head screw | Ask for a price |
|
NA329841000 | 66 | Accelerator hinge plate | Ask for a price |
|
NA219574000 | 67 | Nylon spacer | Ask for a price |
|
NA907090000 | 68 | Gill sensor assembly c/w edac 5 way plug | Ask for a price |
|
NA329840000 | 69 | Accelerator pedal cover | Ask for a price |
|
NA208046000 | 70 | Circlip bar | Ask for a price |
|
NA404051000 | 71 | Gill sensor activator plate (painted anthracite grey) | Ask for a price |
|
NA903855000 | 72 | Accelerator grip pad (red) | Ask for a price |
|
NA208047000 | 73 | Torsion spring (left hand) | Ask for a price |
|
NA219586000 | 74 | 10mm external circlip | Ask for a price |
|
NA291165000 | 75 | M4 x 25mm long pozi screw stainless steel | Ask for a price |
|
NA392501000 | 76 | Battery plate | Ask for a price |
|
NA208645000 | 77 | Foam battery spacer | Ask for a price |
|
NA907478000 | 78 | Red battery terminal cover (ø15.9) | Ask for a price |
|
NA907479000 | 79 | Black battery terminal cover (ø15.9) | Ask for a price |
|
NA903172000 | 80 | Waterproof battery fuse holder.210mm | Ask for a price |
|
NA221047000 | 81 | 40 amp maxi fuse | Ask for a price |
|
NA208907000 | 82 | Gas strut c/w end fittings 100nm | Ask for a price |
|
NA208902000 | 83 | Mini ride on pivot bar | Ask for a price |
|
NA208072000 | 84 | Plastic fixing ring | Ask for a price |
|
NA220455000 | 85 | Battery terminal convertor 80ah version | Ask for a price |
|
NA220454000 | 86 | Positive battery terminal converter 80ah version | Ask for a price |
|
NA230262000 | 87 | Sonnenschein 120ah battery cro 8055/120t | Ask for a price |
