Autoscrubber TGB 2120 Battery 20" #NA906727000

Spare Parts for:

Autoscrubber TGB 2120 Battery 20"
#NA906727000


TGB 2120 is a compact and effective autoscrubber. It has a 20" cleaning path and works with gel batteries.
Parts Schema

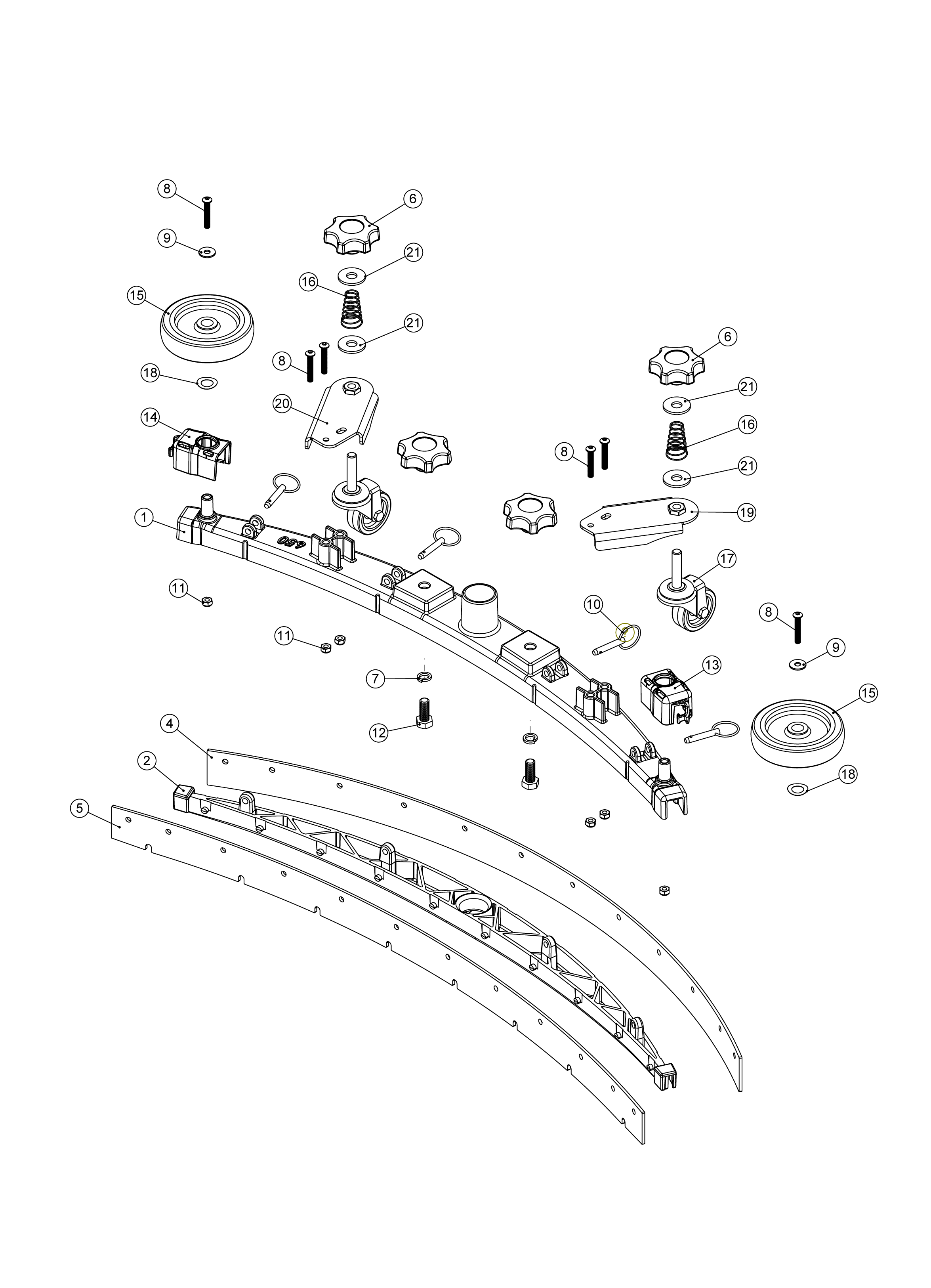

Squeegee Assembly 650 mm - TGB 2120 20" 112217 27/03/2018
Image SKU# Label on drawing Description Ask for a price
NA208198000 1 (650mm scrub width) aluminium squeegee casting (38mm hose fitting) Ask for a price
NA903345000 2 (650mm scrub width) red blade holder moulding (sloping profile) (32mm & 38mm hose fitting) Ask for a price
NA900518000 Squeege Blade Kit for Autoscrubber TTB, TGB and TTV, 32" Ask for a price
NA900518000 5 Squeege Blade Kit for Autoscrubber TTB, TGB and TTV, 32" Ask for a price
NA903281000 6 M10 lobe knob (red) Ask for a price
NA219899000 7 M10 single coil stainless steel washer Ask for a price
NA219933000 8 M6 x 35mm socket button head bolt stainless steel Ask for a price
NA219647000 9 M6 form g stainless steel washer Ask for a price
NA206953000 10 Detent pins Ask for a price
NA219642000 11 M6 stainless steel nylon insert nut Ask for a price
NA219909000 12 M10 x 25mm long hexagonal stainless steel screw Ask for a price
NA237322000 13 Right hand floor tool clip moulding Ask for a price
NA237323000 14 Left hand floor tool clip moulding Ask for a price
NA208796000 15 4 inch wheel Ask for a price
NA229175000 16 Conical spring Ask for a price
NA219891000 18 13mm wavey washer Ask for a price
NA304523000 19 Adjustable floor tool castor plate rhs weld assy Ask for a price
NA304522000 20 Adjustable floor tool castor plate lhs weld assy Ask for a price
NA291124000 21 M10 penny washer stainless steel Ask for a price
