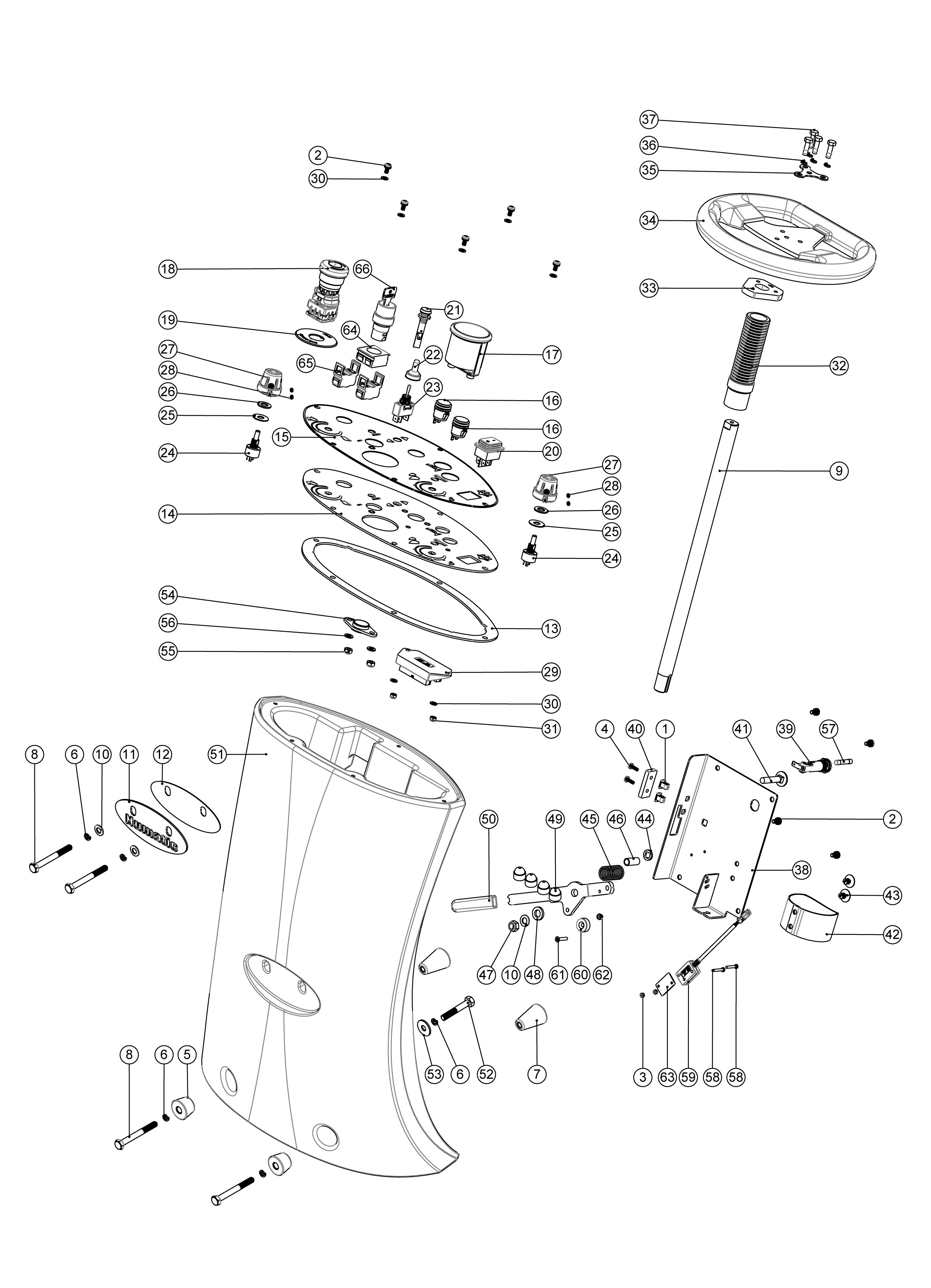

| Image | SKU# | Label on drawing | Description | Ask for a price |
|---|---|---|---|---|
|
NA900986000 | 1 | Nylon grommet nut (plastic insert to suit no 8 plastite screw) | Ask for a price |
|
NA291135000 | 2 | M5 x 10mm long stainless steel pozi pan sems screw | Ask for a price |
|
NA291154000 | 3 | M3 nylon insert nut stainless steel | Ask for a price |
|
NA219569000 | 4 | No8.1/2 inch. Lg.pozi-pan.screw.stainless steel.plastite | Ask for a price |
|
NA208904000 | 5 | Tapered bush (clearance) | Ask for a price |
|
NA219898000 | 6 | M8 single coil stainless steel washer | Ask for a price |
|
NA208903000 | 7 | Tapered bush (tapped) | Ask for a price |
|
NA902517000 | 8 | M8 x 70mm long hex bolt stainless steel | Ask for a price |
|
NA906649000 | 9 | Upper steering shaft (crg) | Ask for a price |
|
NA219578000 | 10 | M8 form a stainless steel washer | Ask for a price |
|
NA392433000 | 11 | Numatic name plate | Ask for a price |
|
NA392461000 | Nacecare name plate nace only | Ask for a price | |
|
NA906731000 | 12 | Name plate spacer (red p/p) | Ask for a price |
|
NA203040000 | 13 | Cro control panel gasket (lower) | Ask for a price |
|
NA906632000 | 14 | Crg control panel c/w clinch studs painted siver | Ask for a price |
|
NA906636000 | 15 | Crg control panel overlay | Ask for a price |
|
NA906658000 | 16 | Sealed pushbutton switch single pole | Ask for a price |
|
NA902532000 | 17 | Battery discharge indicator + hour meter 24v o-ring included | Ask for a price |
|
NA904087000 | 18 | Emergency stop (a02es-h) | Ask for a price |
|
NA904086000 | 19 | Emergency name plate (a02-u27y) | Ask for a price |
|
NA902235000 | 20 | Switch dpst red illuminated with membrane 24v | Ask for a price |
|
NA907298000 | 21 | 24v led green indicator (h0275ossg6) | Ask for a price |
|
NA206785000 | 22 | Switch cover c/w nut traction machines only | Ask for a price |
|
NA206786000 | 23 | Switch traction machines only | Ask for a price |
|
NA270316000 | 24 | Potentiometer type pe30 22k ohms 20% 3w (no slot in shaft end) traction machines only | Ask for a price |
|
NA904094000 | 25 | Speed control gasket | Ask for a price |
|
NA219903000 | 26 | M10 form a stainless steel washer | Ask for a price |
|
NA903498000 | 27 | Speed adjustment knob c/w insert (red) | Ask for a price |
|
NA219744000 | 28 | M4 x 6mm long blackodised grub screw traction machines only | Ask for a price |
|
NA904179000 | 29 | Terminal block assembly | Ask for a price |
|
NA219355000 | 30 | M5 form a stainless steel washer | Ask for a price |
|
NA219633000 | 31 | M5 stainless steel nylon insert nut | Ask for a price |
|
NA280023000 | 32 | Steering shaft cover hose 135mm long | Ask for a price |
|
NA404214000 | 33 | Steering wheel plate | Ask for a price |
|
NA208900000 | 34 | Gsl 255mm steeering wheel | Ask for a price |
|
NA392500000 | 35 | Steering wheel top plate | Ask for a price |
|
NA219718000 | 36 | Washer.m6.spring.stainless steel | Ask for a price |
|
NA291144000 | 37 | M6 x 20mm lg hex head screw stainless steel c/w threadlock | Ask for a price |
|
NA906634000 | 38 | Cro floor tool lifting handle bracket weld assy | Ask for a price |
|
NA903032000 | 39 | Bulgin panel mount fuseholder | Ask for a price |
|
NA906635000 | 40 | Guider (pp) | Ask for a price |
|
NA291120000 | 41 | M8 x 40 carriage bolt s/s | Ask for a price |
|
NA906639000 | 42 | Bottle plate (red) | Ask for a price |
|
NA208024000 | 43 | Push in barbed fastener | Ask for a price |
|
NA906640000 | 44 | Carriage bolt spacer | Ask for a price |
|
NA219592000 | 45 | Compression spring | Ask for a price |
|
NA906651000 | 46 | Spacer (s/s 10mm o/d 8mm i/d x 22mm long) | Ask for a price |
|
NA219639000 | 47 | M8 stainless steel nylon insert nut | Ask for a price |
|
NA219964000 | 48 | Nylon washer (18mm o/d x 10.4mm i/d x 3mm thick) | Ask for a price |
|
NA392431000 | 49 | Floor tool lifting handle | Ask for a price |
|
NA903870000 | 50 | Lever handle moulding red | Ask for a price |
|
NA903721000 | 51 | Mini ride on steering column graphite | Ask for a price |
|
NA906704000 | 52 | M8 x 50mm long hex bolt stainless steel | Ask for a price |
|
NA219716000 | 53 | M8 form g stainless steel washer | Ask for a price |
|
NA208110000 | 54 | Igus (r) 2 bolt plain bearing 20mm i/d | Ask for a price |
|
NA219642000 | 55 | M6 stainless steel nylon insert nut | Ask for a price |
|
NA219870000 | 56 | M6 form a washer stainless steel | Ask for a price |
|
NA903066000 | 57 | FUSE 2.5A (6.3x32) | Ask for a price |
|
NA291155000 | 58 | M3 x 20mm long pozi pan screw stainless steel | Ask for a price |
|
NA904501000 | 59 | Reed switch assembly | Ask for a price |
|
NA208382000 | 60 | Magnet(19mm o/d) | Ask for a price |
|
NA907092000 | 61 | M4 x 20mm lg. Pozi csk screw (stainless steel) | Ask for a price |
|
NA219687000 | 62 | M4 stainless steel nylon insert nut | Ask for a price |
|
NA906617000 | 63 | Reed switch washer plate | Ask for a price |
|
NA907150000 | 64 | Fixing adapter (020g) | Ask for a price |
|
NA907151000 | 65 | Terminal block n.o. (020e10) | Ask for a price |
|
NA907149000 | 66 | Key switch selector (020sca1) 907208 spare keys | Ask for a price |
|
NA903260000 | 67 | Bolt and nut cap | Ask for a price |
