Autoscrubber TGB 2120 Battery 20" #NA906727000

Spare Parts for:

Autoscrubber TGB 2120 Battery 20"
#NA906727000


TGB 2120 is a compact and effective autoscrubber. It has a 20" cleaning path and works with gel batteries.
Parts Schema

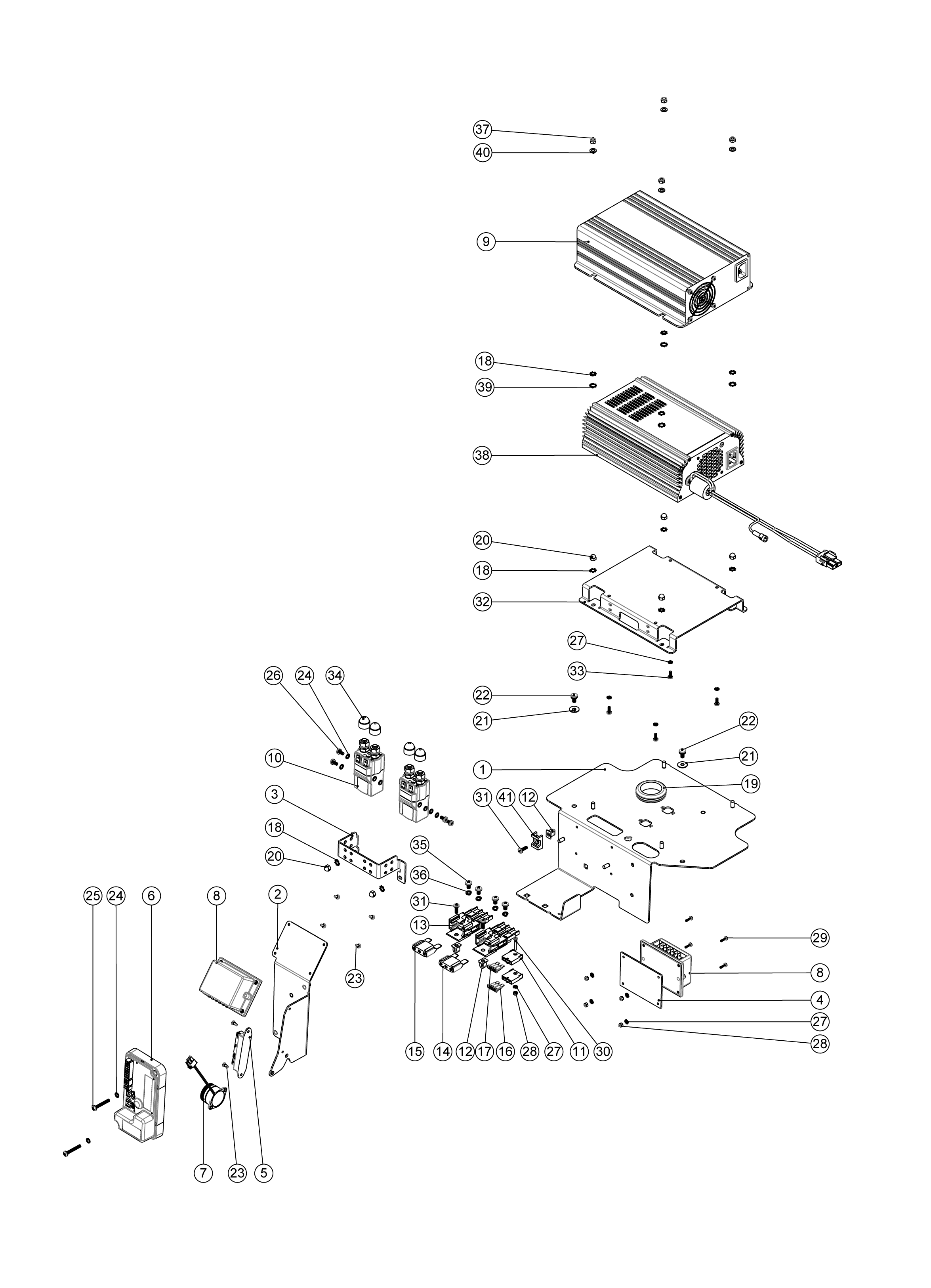

Electronic Charger - TGB 2120 20" CRG8055 & CRG8072 05/01/2018
Image SKU# Label on drawing Description Ask for a price
NA906644000 1 Charger plate c/w clinch studs painted silver Ask for a price
NA906642000 2 Motor controller plate assembly painted silver Ask for a price
NA906650000 3 Contactor bracket (crg) m/s painted silver Ask for a price
NA906660000 4 Motor controller ali plate Ask for a price
NA208909000 5 Potted terminal block assembly Ask for a price
NA906686000 6 Programmed 70a motor controller (crg) Ask for a price
NA906671000 7 24v dc buzzer c/w connector Ask for a price
NA905341000 8 Kemo pwm power control 10a m171 Ask for a price
NA230261000 9 Charger assy meanwell (20a) (100-240v) Ask for a price
NA903736000 10 24v albright contactor (su60-2009) Ask for a price
NA906564000 11 Ato fuse holder (fkh series) Ask for a price
NA900986000 12 Nylon grommet nut (plastic insert to suit no 8 plastite screw) Ask for a price
NA230102000 13 Fuse holder rated at 60 amps Ask for a price
NA230104000 14 30 amp maxi fuse Ask for a price
NA221091000 15 20 amp maxi fuse Ask for a price
NA906573000 16 10 amp fuse Ask for a price
NA905570000 17 4 amp fuse Ask for a price
NA291020000 18 M5 stainless steel external shakeproof lock washer Ask for a price
NA208029000 19 Grommet (32mm i/d) Ask for a price
NA219645000 20 M5 stainless steel dome nut Ask for a price
NA219644000 21 M5 form g stainless steel washer Ask for a price
NA291135000 22 M5 x 10mm long stainless steel pozi pan sems screw Ask for a price
NA208963000 23 Snap black rivet (ref sr-3055b) Ask for a price
NA291145000 24 M4 shakeproof washer stainless steel Ask for a price
NA219913000 25 M4 x 30mm long pozi pan stainless steel screw Ask for a price
NA219697000 26 m4 x 8mm long pozi pan stainless steel screw Ask for a price
NA904219000 27 M3 stainless steel external shakeproof washer Ask for a price
NA291154000 28 M3 nylon insert nut stainless steel Ask for a price
NA902534000 29 M3 x 10mm long pozi pan screw stainless steel Ask for a price
NA291155000 30 M3 x 20mm long pozi pan screw stainless steel Ask for a price
NA219569000 31 No8.1/2 inch. Lg.pozi-pan.screw.stainless steel.plastite Ask for a price
NA906846000 32 Charger plate crg (nord) m/s paitned silver models with nord charger Ask for a price
NA902533000 33 No6 x 3/8 inch long pozi pan self tap screw stainless steel Ask for a price
NA903260000 34 Bolt and nut cap Ask for a price
NA219864000 35 M5 x 8mm long pozi-pan screw z/pl Ask for a price
NA219861000 36 M5 single coil stainless steel washer Ask for a price
NA219633000 37 M5 stainless steel nylon insert nut Ask for a price
NA907222000 38 230v / 24v 10amp hf nord charger 230v 10a charger Ask for a price
NA907223000 38 120v / 24v 10amp hf nord charger 120v 10a charger Ask for a price
NA902353000 39 M6 external shakeproof washer stainless steel Ask for a price
NA219355000 40 M5 form a stainless steel washer Ask for a price
NA220904000 41 Cable clip platform Ask for a price
