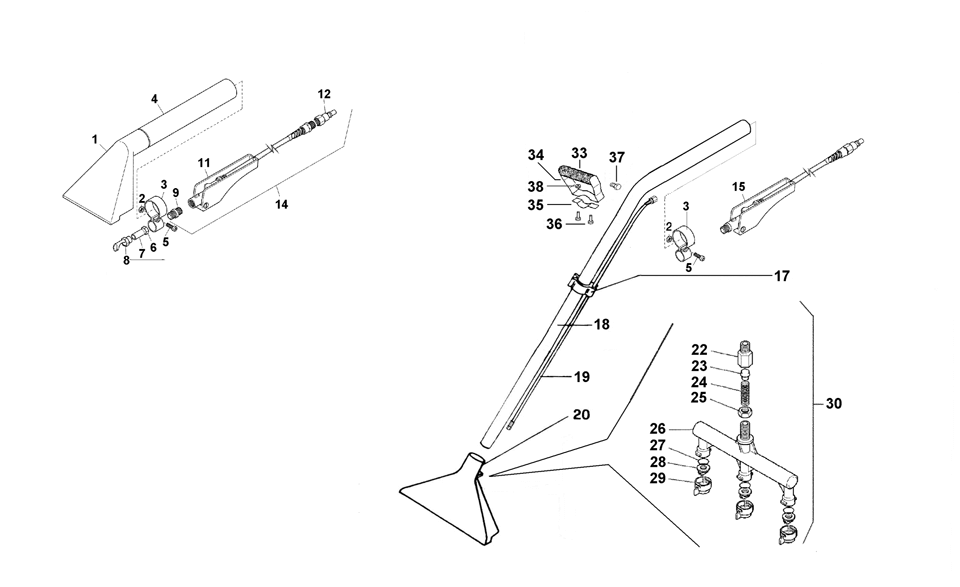

| Image | SKU# | Label on drawing | Description | Ask for a price |
|---|---|---|---|---|
|
NA15342C000 | 1 | Aluminum head + metal tube cod.339 | Ask for a price |
|
NA155250000 | 2 | Nut d.5 | Ask for a price |
|
NA153190000 | 3 | Valve lock | Ask for a price |
|
NA153390000 | 4 | Metal tube d.38 | Ask for a price |
|
NA155040000 | 5 | SCREW TC+ 5x20 | Ask for a price |
|
NA156840000 | 6 | Connecting part | Ask for a price |
|
NA156860000 | 7 | Extension | Ask for a price |
|
NA156760000 | 8 | Nozzle for ns10all | Ask for a price |
|
NA157640000 | 9 | Hose nipple 1/4 - 1/4 | Ask for a price |
|
NA153200INN | 11 | Complete valve f.1/4” m. 1/4” | Ask for a price |
|
NA15689PE00 | 12 | Quick disconnect male – att. F-1/4” – metal | Ask for a price |
|
NA123200CPE | 14 | Complete valve, with coupling 689-pe and hose nipple 764 | Ask for a price |
|
|
NA123200CPE | 15 | Complete valve, with coupling 689-pe and hose nipple 764 | Ask for a price |
|
NA015541000 | 17 | Tie | Ask for a price |
|
NA153440L01 | 19 | RAGNO PIPE N40 8x14 L.tot=1075mm F.F1/4" | Ask for a price |
|
NA123110000 | 20 | Aluminium head for ns300 | Ask for a price |
|
NA157432000 | 22 | Coupling for antidrop, att. M. 1/4” | Ask for a price |
|
NA151110000 | 23 | Rubber pin | Ask for a price |
|
NA156071000 | 24 | Spring for antidrop | Ask for a price |
|
NA155321000 | 25 | Locking nut diam. ¼” | Ask for a price |
|
NA153287N00 | 26 | Nozzles manifold for ns300 | Ask for a price |
|
NA153209000 | 27 | O-ring | Ask for a price |
|
NA157300000 | 28 | Nozzle tip 0,15/80 | Ask for a price |
|
NA157180000 | 29 | Nut for nozzle | Ask for a price |
|
NA151173000 | 33 | Cilindric support for handle | Ask for a price |
|
NA151174000 | 33 | Handle rubber grip | Ask for a price |
|
NA151171000 | 34 | Upper part for handle | Ask for a price |
|
NA151172000 | 35 | Lower part for handle | Ask for a price |
|
NA155740000 | 36 | SCREW – 6x14 | Ask for a price |
|
NA155090000 | 37 | SCREW – 6x20 | Ask for a price |
|
NA15562A000 | 38 | Locking nut – diam. 6 | Ask for a price |
|
NA15117C000 | 39 | Complete handle (items 33 to 38) | Ask for a price |
