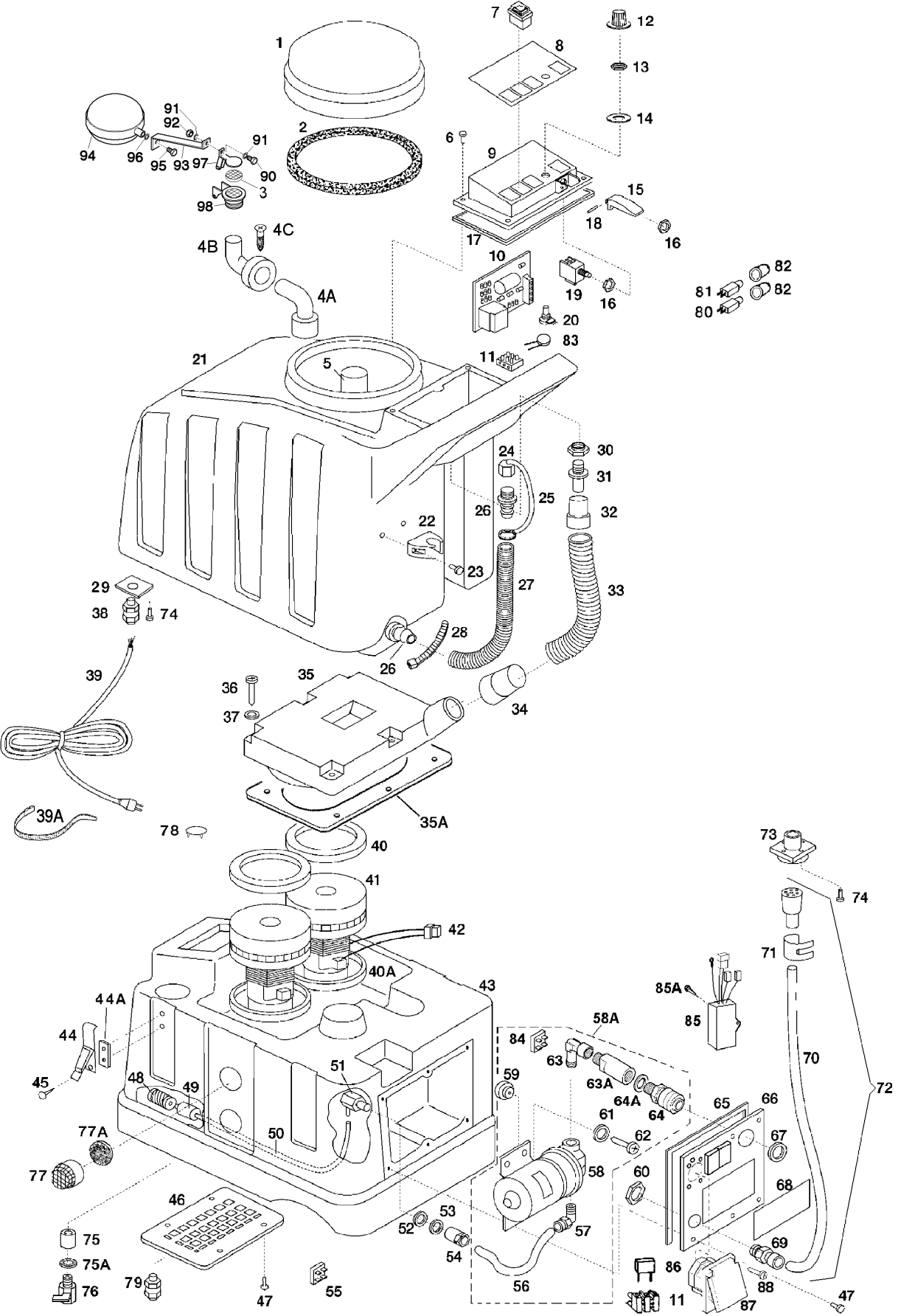

| Image | SKU# | Label on drawing | Description | Ask for a price |
|---|---|---|---|---|
|
NA15178C000 | 1 | Cover with gasket | Ask for a price |
|
NA151790000 | 2 | Gasket | Ask for a price |
|
NA152025000 | 3 | Vacuum motor exhaust filter ppi30 d.44 | Ask for a price |
|
NA151310000 | 4A | Elbow | Ask for a price |
|
NA151312000 | 4B | Elbow for float, with gasket | Ask for a price |
|
NA15538I000 | 4C | Screw tc+ 3,9x19 inox | Ask for a price |
|
NA151830000 | 5 | Elbow 45° | Ask for a price |
|
NA155510000 | 6 | SCREW TC+ 4x16 INOX | Ask for a price |
|
NA015217000 | 7 | Switch | Ask for a price |
|
NA152200000 | 7 | 3 position switch | Ask for a price |
|
NA015185000 | 8 | Panel label | Ask for a price |
|
NA151771000 | 9 | Control panel | Ask for a price |
|
NA152740000 | 10 | Electronic card 220-240v | Ask for a price |
|
NA152750000 | 10 | Electronic card 100-120v | Ask for a price |
|
NA152361000 | 11 | Fairlead | Ask for a price |
|
NA15276C000 | 12 | Compl.speed control knob+nut 516+515 | Ask for a price |
|
NA155160000 | 13 | Ring nut | Ask for a price |
|
NA155150000 | 14 | Complete speed indicator (5151+5152) | Ask for a price |
|
NA154570000 | 15 | Drive lever | Ask for a price |
|
NA155140000 | 16 | Ring nut | Ask for a price |
|
NA151280000 | 17 | Gasket for upper panel | Ask for a price |
|
NA155990000 | 18 | Pin | Ask for a price |
|
NA15277C000 | 19 | Complete double microswitch | Ask for a price |
|
NA15278W000 | 20 | Potentiometer with wires | Ask for a price |
|
NA151510000 | 21 | Blue upper tank | Ask for a price |
|
NA151600000 | 22 | Clip | Ask for a price |
|
NA155440000 | 23 | Screw | Ask for a price |
|
NA015159000 | 24 | Cap for TP8X Extractor | Ask for a price |
|
NA015162000 | 25 | Tie | Ask for a price |
|
NA015161000 | 26 | Hose nipple | Ask for a price |
|
NA015541000 | 28 | Tie | Ask for a price |
|
NA151090000 | 29 | Fairlead plate | Ask for a price |
|
NA155480000 | 30 | Nut | Ask for a price |
|
NA153650000 | 31 | Hose nipple | Ask for a price |
|
NA153641C00 | 33 | Complete hose d.50 for grace-silent | Ask for a price |
|
|
NA153641C00 | 34 | Complete hose d.50 for grace-silent | Ask for a price |
|
NA151551000 | 35 | Manifold | Ask for a price |
|
|
NA151551000 | 35A | Manifold | Ask for a price |
|
NA155600000 | 36 | Screw tc+ 5x30 uni 7687 inox | Ask for a price |
|
NA155171000 | 37 | WASHER 5x15x1,5 UNI 6593 INOX | Ask for a price |
|
NA152950000 | 38 | Fairlead with nut | Ask for a price |
|
NA152150000 | 39 | Cable 3 x 14 awg x 15m | Ask for a price |
|
NA152160000 | 39 | CABLE 3x1.5x15m WITH EURO PLUG | Ask for a price |
|
NA158121300 | 40 | Motor gasket 13mm high waterlift motor (after s/n: 45378) | Ask for a price |
|
NA158250000 | 40 | MOTOR GASKET 3mm | Ask for a price |
|
|
NA158250000 | 40A | MOTOR GASKET 3mm | Ask for a price |
|
NA015812000 | 40A | Gasket 10mm | Ask for a price |
|
NA15808PA00 | 41 | High waterlift 3 stages vacuum motor 1500w 220-240v | Ask for a price |
|
NA15809PA00 | 41 | 3 stages motor 1300w 110-120v 50/60hz (s/n after 07xx47090) | Ask for a price |
|
NA158090000 | 41 | 3 stages motor 1300w 110-120v 50/60hz | Ask for a price |
|
NA152340000 | 42 | Connector | Ask for a price |
|
NA152500000 | 42 | Male electrical terminal | Ask for a price |
|
NA15152AZ00 | 43 | Blue lower tank | Ask for a price |
|
NA15152V000 | 43 | Green lower tank | Ask for a price |
|
NA151420000 | 44 | Coupler | Ask for a price |
|
NA151670000 | 44A | Plate | Ask for a price |
|
NA155450000 | 45 | Screw Tc+ 3,9x19 | Ask for a price |
|
NA15180POW0 | 46 | Lower panel | Ask for a price |
|
NA015536000 | 47 | Screw | Ask for a price |
|
NA156080000 | 48 | Filter | Ask for a price |
|
NA157470000 | 49 | Ballast for water filter | Ask for a price |
|
NA157450000 | 50 | Extraflex hose 67cm | Ask for a price |
|
NA15702D000 | 51 | Coupling for water filter | Ask for a price |
|
NA151470000 | 52 | Neoprene washer | Ask for a price |
|
NA155400000 | 53 | Metal washer | Ask for a price |
|
NA157140000 | 54 | Quick disconnect - female | Ask for a price |
|
NA152793500 | 55 | External rectifier for shurflo pump | Ask for a price |
|
NA157460000 | 56 | Rilsan pipe | Ask for a price |
|
NA156220000 | 57 | Elbow | Ask for a price |
|
NA156430000 | 58 | Pump 220-240v 50-60 hz 100 psi+ rectif.27935 | Ask for a price |
|
NA015644000 | 58 | Pump 100-120v 100 psi | Ask for a price |
|
NA15643CM00 | 58A | Pump 220-240v 50-60 hz 100 psi +rectifier 27935 | Ask for a price |
|
NA15644CM00 | 58A | Pump 100-120v 50-60 hz 100 psi + metal couplings | Ask for a price |
|
NA157360000 | 59 | Vibration damping | Ask for a price |
|
NA155640000 | 60 | Ring nut | Ask for a price |
|
NA155040000 | 62 | SCREW TC+ 5x20 | Ask for a price |
|
NA155460000 | 62 | Screw 5x25 | Ask for a price |
|
NA015720000 | 63 | Elbow | Ask for a price |
|
NA015753000 | 63A | Extension for metal coupl. | Ask for a price |
|
NA157210000 | 63A | Extension for plastic coupling | Ask for a price |
|
NA15687PE00 | 64 | Female quick | Ask for a price |
|
NA151860000 | 65 | Panel gasket | Ask for a price |
|
NA151480000 | 66 | Panel | Ask for a price |
|
NA151630000 | 67 | Bush | Ask for a price |
|
NA151580000 | 68 | Lower panel label | Ask for a price |
|
NA152620000 | 69 | Connecting part | Ask for a price |
|
NA152610000 | 70 | Cable sheath | Ask for a price |
|
NA152650000 | 71 | Tie | Ask for a price |
|
NA152613C00 | 72 | Cable sheath with wires+cod.260+265 | Ask for a price |
|
NA152593C00 | 73 | Socket with wires | Ask for a price |
|
NA155380000 | 74 | Screw tc+ 3,9 x 13 | Ask for a price |
|
NA157520000 | 75 | Connecting part | Ask for a price |
|
NA155210000 | 75A | Locking washer diam.12mm | Ask for a price |
|
NA157510000 | 76 | Ball valve (drain) | Ask for a price |
|
NA151163800 | 77 | Plastic filter | Ask for a price |
|
|
NA152025000 | 77A | Vacuum motor exhaust filter ppi30 d.44 | Ask for a price |
|
NA158240000 | 78 | Motor valve | Ask for a price |
|
|
NA152950000 | 79 | Fairlead with nut | Ask for a price |
|
NA152910000 | 80 | Cable sheath | Ask for a price |
|
NA152930000 | 80 | Thermal protection – 1,5a (100-120v) | Ask for a price |
|
NA152908000 | 81 | Thermal protection – 0,8a (220-240v) | Ask for a price |
|
|
NA152930000 | 81 | Thermal protection – 1,5a (100-120v) | Ask for a price |
|
NA152940000 | 82 | Rubber protection | Ask for a price |
|
NA158132000 | 83 | Varistor for pump | Ask for a price |
|
|
NA152793500 | 84 | External rectifier for shurflo pump | Ask for a price |
|
NA152900000 | 85 | Pump radio interference suppressor | Ask for a price |
|
|
NA155380000 | 85A | Screw tc+ 3,9 x 13 | Ask for a price |
|
NA152350000 | 86 | Motor radio interference suppressor | Ask for a price |
|
NA152690000 | 87 | Electrical socket for euro plug | Ask for a price |
|
|
NA155380000 | 88 | Screw tc+ 3,9 x 13 | Ask for a price |
|
NA1557504I0 | 90 | Screw te 4x12 inox | Ask for a price |
|
|
NA155210000 | 91 | Locking washer diam.12mm | Ask for a price |
|
NA155230000 | 92 | Nut es. 4 ma uni 5587 ottone | Ask for a price |
|
NA151707000 | 94 | Spherical floater | Ask for a price |
|
NA1558206W0 | 95 | Screw 6x8 inox passo 1/4x3/8 whitworth | Ask for a price |
|
NA1552106I0 | 96 | Locking washer est.diam 6 inox | Ask for a price |
|
NA1517041C0 | 97 | Moving part for floater | Ask for a price |
|
NA151703100 | 98 | Fixed part for floater | Ask for a price |
