AV18AX/SX Walk Behind Carpet Extractor 18 Gal #NA802516600

Spare Parts for:

AV18AX/SX Walk Behind Carpet Extractor 18 Gal
#NA802516600


Nacecare's AV18AX/SX industrial carpet extractor includes a rotating brush and squeegee for deep carpet cleaning. This carpet washer includes two 18-gallon tanks for heavy-duty cleaning.
Parts Schema

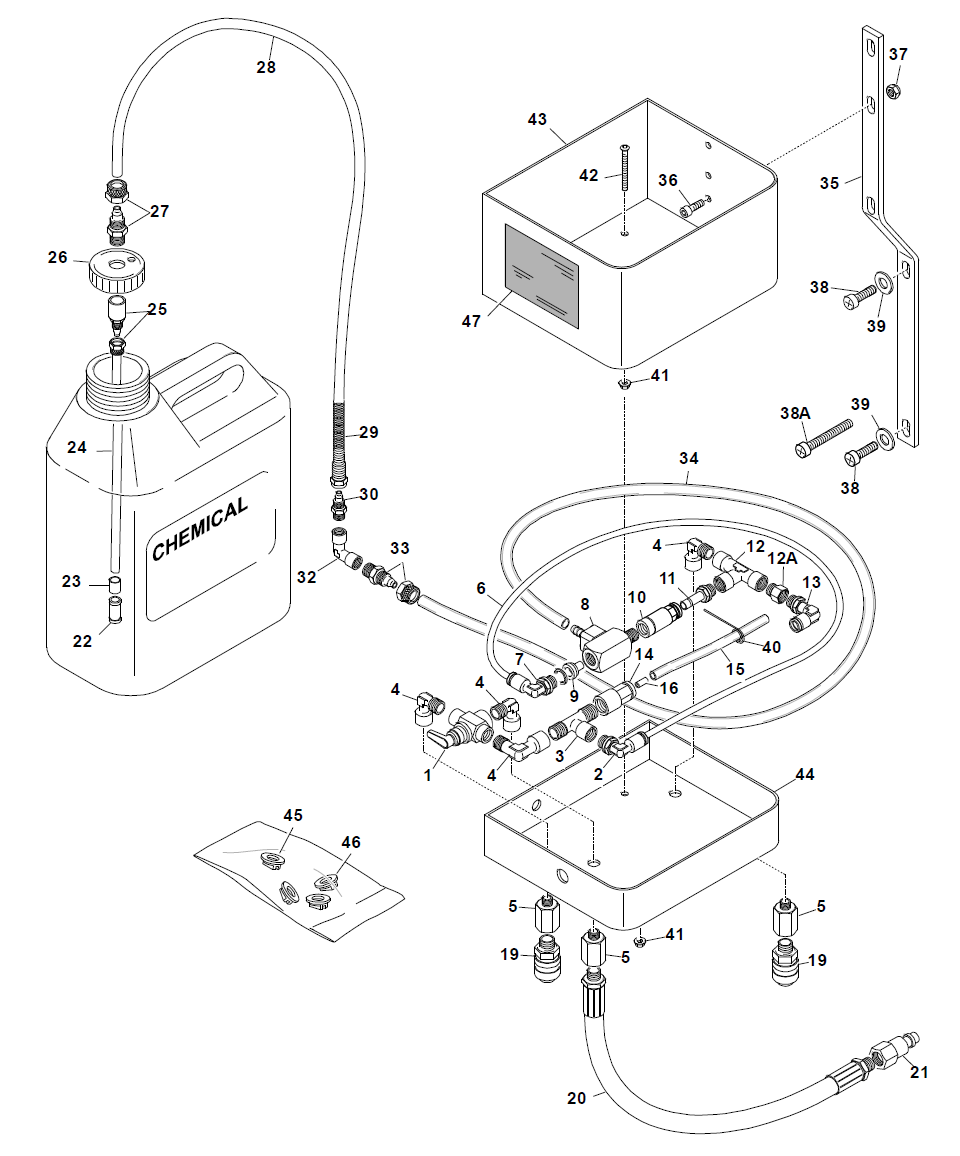

Smart Kit PRE Spray System (1011) Serial numbers 1011 and higher
Image SKU# Label on drawing Description Ask for a price
NA156172000 1 Ball valve 90° 1/8 Ask for a price
NA156052A00 2 Swivel elbow r31 for d.4 pipe Ask for a price
NA157222000 3 “T” coupling mfm a13 1/8 Ask for a price
NA156260000 4 Elbow Ask for a price
NA156831000 5 Coupling fm a5z 1/4-1/8 cilindr Ask for a price
NA156939100 6 Pipe diam. 4/2,5 l=44cm Ask for a price
NA156052A00 7 Swivel elbow r31 for d.4 pipe Ask for a price
NA159045200 8 Dema chemical injector 1/8 – 1/8 Ask for a price
NA159045303 9 Bushing 03 type for dema injector Ask for a price
NA157140000 10 Quick disconnect - female Ask for a price
NA156980000 11 Quick disconnect male Ask for a price
NA157221000 12 “T” coupling fff a11 1/8 Ask for a price
NA156830000 12A Coupling fm 1/8-1/8 a5/z Ask for a price
NA156053A00 13 Elbow automatic coupling r31 m.1/8 6/8 Ask for a price
NA157141000 14 Automatic coupling f-att.f. R2 4-1/8 Ask for a price
NA157406100 15 Rilsan hose 6/8 l=260mm Ask for a price
NA159045304 16 Bushing 04 type for dema injector Ask for a price
NA15687PE00 19 Female quick Ask for a price
NA15344L38I 20 Ragno pipe 6x14 l=380mm m. 1/4 + m. 1/4 Ask for a price
NA15689T000 21 Quick disconnect m. Att.f.1/4 (14) w/antidrip Ask for a price
NA156081000 22 Filter for tip protection Ask for a price
NA802094600 26 Chemical cap 90 degree elbow Ask for a price
NA157352200 28 Poly tube 6/8 l=50cm Ask for a price
NA156160200 29 Spring for 6/8 poly tube Ask for a price
NA156160000 30 Coupling c1 8/6 1/8 Ask for a price
NA156260000 32 Elbow Ask for a price
NA156160000 33 Coupling c1 8/6 1/8 Ask for a price
NA157352200 34 Poly tube 6/8 l=50cm Ask for a price
NA154723200 35 Locking plate Ask for a price
NA155741000 36 Screw tc brugola 6x16 zn Ask for a price
NA15562A000 37 Locking nut – diam. 6 Ask for a price
NA155362000 38 Stainless steel screw tc+ 4x20 Ask for a price
NA155362500 38A Stainless steel screw tc+ 4x25 Ask for a price
NA155290000 39 Stainless steel washer 4x16 Ask for a price
NA156072000 40 Pin for smartkit bushing cleaning Ask for a price
NA15562R000 41 Nut diam.6 ma zn with washer Ask for a price
NA155765000 42 Screw 6x50 inox Ask for a price
NA154918000 43 Housing Ask for a price
NA154920000 44 Chemical tank holder Ask for a price
NA157050580 45 Nozzle 05/80 (for using smakrtkit with hand tool) Ask for a price
NA157300000 46 Nozzle tip 0,15/80 Ask for a price
NA151212000 47 Smartkit label Ask for a price
