Catalog
AV18AX/SX Walk Behind Carpet Extractor 18 Gal #NA802516600

Spare Parts for:

AV18AX/SX Walk Behind Carpet Extractor 18 Gal
#NA802516600


Nacecare's AV18AX/SX industrial carpet extractor includes a rotating brush and squeegee for deep carpet cleaning. This carpet washer includes two 18-gallon tanks for heavy-duty cleaning.
Parts Schema

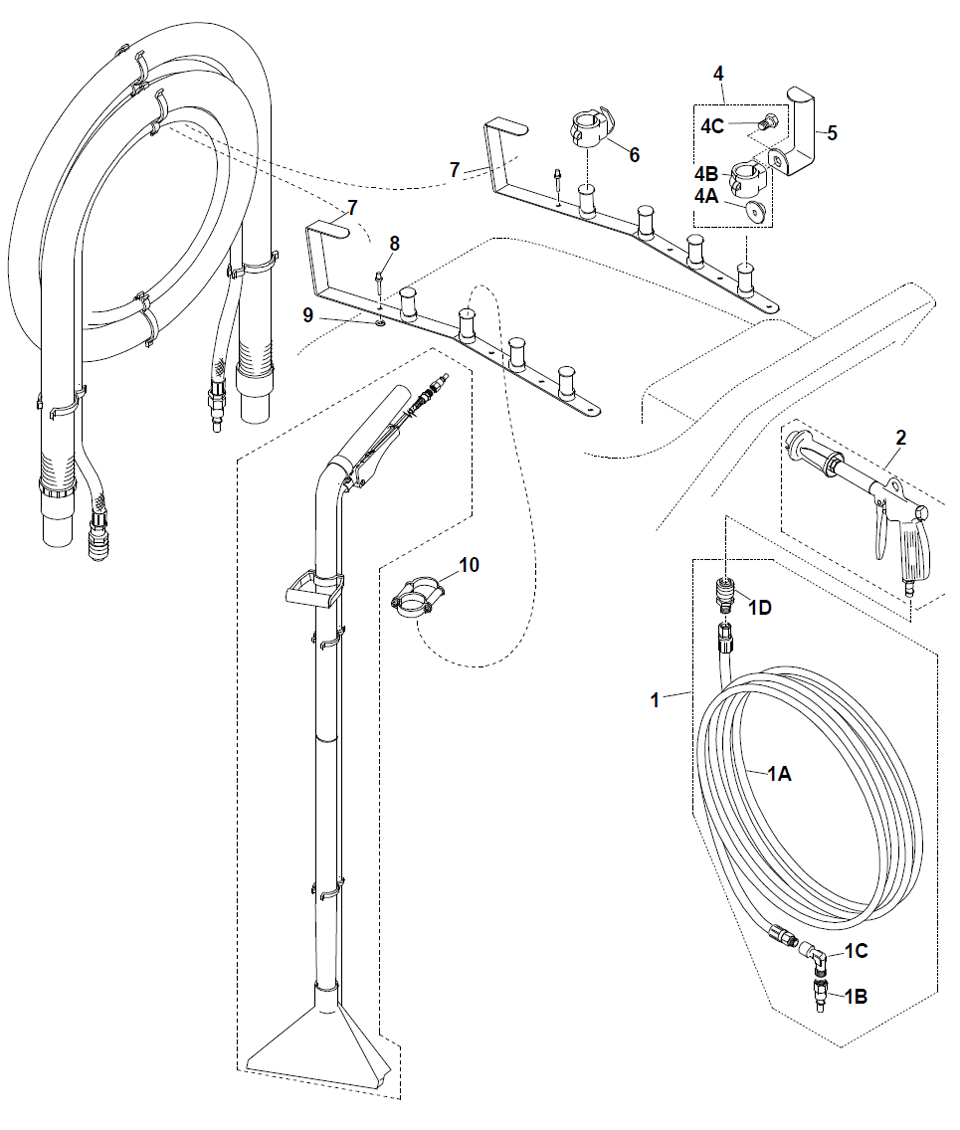

Solution / Vac Hose (1011) Serial numbers 9701 and higher
Image SKU# Label on drawing Description Ask for a price
NA15344CL1T 1 Ragno hose 6x14 l=10m + male coupling +elbow Ask for a price
NA15344L1IN 1A Tubo ragno 6x14 10m mf ¼ Ask for a price
NA15689T000 1B Quick disconnect m. Att.f.1/4 (14) w/antidrip Ask for a price
NA156261400 1C Coupling – elbow mf a10 1/4 – 1/4 Ask for a price
NA15687PE00 1D Female quick Ask for a price
NA15LANCIAG 2 Complete prespraying gun for smartkit (06) Ask for a price
NA15688PE00 Quick disconnect male, att. M.1/4 Ask for a price
NA159042060 Nozzle 06 with variable angle and bypass Ask for a price
NA159025000 4 Clip diam. 22 complete (49145+9023.1+58206) Ask for a price
NA154914500 4A Washer for locking hook 49143 Ask for a price
NA159023100 4B Clip diam. 22 for hook support (without hook) Ask for a price
NA155820600 4C Screw te 6x8 zn Ask for a price
NA154914300 5 Gracehp spray tube hook Ask for a price
NA159023000 6 Clip diam. 22 with hook for gun Ask for a price
NA154914800 7 Lower support for grace tools and hoses Ask for a price
NA155191000 8 Rivet 4x22 Ask for a price
NA155290000 9 Stainless steel washer 4x16 Ask for a price
NA15117HOOK 10 Hook d.38 for ns300 Ask for a price

Parts Schemas List

Parts Schema
Schema Version
Serial Numbers 0001 and higher
Serial Numbers 0001 and higher
Serial numbers between 0001 to 1010
Serial numbers 1011 and higher
Serial numbers 9701 and higher
Serial numbers 0001 and higher
