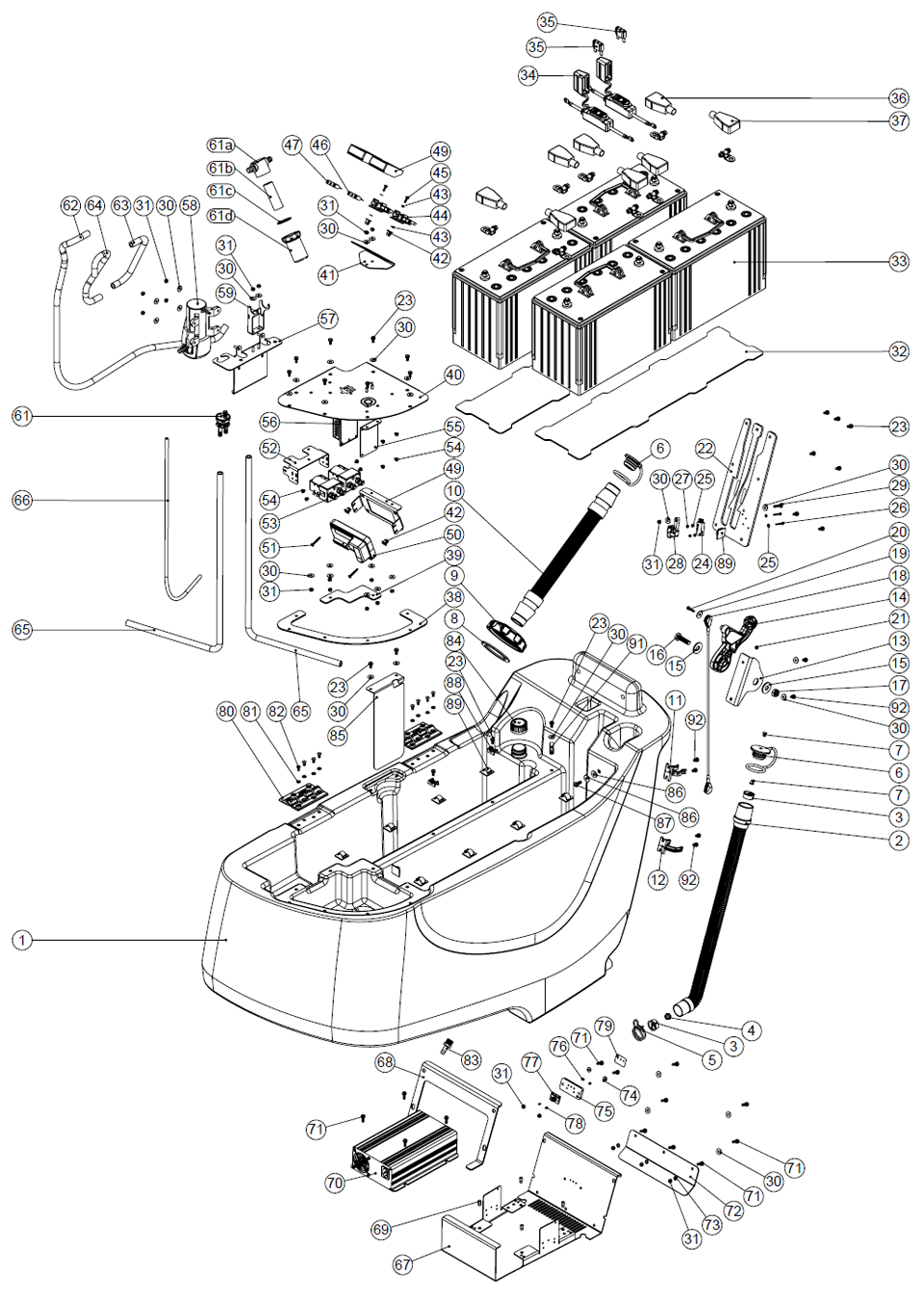

| Image | SKU# | Label on drawing | Description | Ask for a price |
|---|---|---|---|---|
|
NA905339000 | 1 | Tgb 8572 bottom tank | Ask for a price |
|
NA213025000 | 2 | Dump hose | Ask for a price |
|
NA904108000 | 3 | Float stop moulding | Ask for a price |
|
NA904109000 | 4 | Float moulding | Ask for a price |
|
NA902133000 | 5 | Spring wire clamp (ydnac-y8010356) | Ask for a price |
|
NA903341000 | 6 | 32mm hose cap red (c/w 8mm hole) | Ask for a price |
|
NA904403000 | 7 | Barbed rivet black | Ask for a price |
|
NA208564000 | 8 | Filler cap sealing ring | Ask for a price |
|
NA237174000 | 9 | Filler cap with filler hose hole | Ask for a price |
|
NA206842000 | 10 | 420mm long black stretch hose c/w cuffs | Ask for a price |
|
NA901916000 | 11 | 28mm HOSE CLIP | Ask for a price |
|
NA237754000 | 12 | 35-38mm hose clip | Ask for a price |
|
NA903270000 | 13 | Floor tool handle bracket z/pl | Ask for a price |
|
NA902324000 | 14 | Red squeegee lift handle | Ask for a price |
|
NA291124000 | 15 | M10 penny washer stainless steel | Ask for a price |
|
NA219895000 | 16 | M10 x 35mm long hexagonal stainless steel screw | Ask for a price |
|
NA219897000 | 17 | M10 stainless steel nylon insert nut | Ask for a price |
|
NA208989000 | 18 | Lifting wire ttv5565 | Ask for a price |
|
NA291118000 | 19 | M5 stainless steel washer 19mm od | Ask for a price |
|
NA219686000 | 20 | M4 x 20mm long stainless steel pozi pan machine screw | Ask for a price |
|
NA219687000 | 21 | M4 stainless steel nylon insert nut | Ask for a price |
|
NA404118000 | 22 | Deck lift guide (zinc plated) | Ask for a price |
|
NA291131000 | 23 | M5 x 12mm long stainless steel pozi pan sems screw | Ask for a price |
|
NA208748000 | 24 | IP RATED MICROSWITCH WITH TOGGLE | Ask for a price |
|
NA219501000 | 25 | M3 form a stainless steel washer | Ask for a price |
|
NA904052000 | 26 | M3 X 25MM LONG POZI PAN SCREW STAINLESS STEEL | Ask for a price |
|
NA291154000 | 27 | M3 nylon insert nut stainless steel | Ask for a price |
|
NA227587000 | 28 | Centre switch operating lever moulding | Ask for a price |
|
NA219575000 | 29 | M5 X 25MM LONG POZI PAN STAINLESS STEEL SCREW | Ask for a price |
|
NA219644000 | 30 | M5 form g stainless steel washer | Ask for a price |
|
NA219633000 | 31 | M5 stainless steel nylon insert nut | Ask for a price |
|
NA905357000 | 32 | Battery plate (8572) | Ask for a price |
|
NA205112000 | 33 | 100 amp/hour replacement battery (c/w packaging for 230138 battery) 100ah version | Ask for a price |
|
NA221047000 | 35 | 40 amp maxi fuse | Ask for a price |
|
NA208936000 | 36 | Black battery terminal cover (415n8v14) | Ask for a price |
|
NA208935000 | 37 | Red battery terminal cover (415n8v02) | Ask for a price |
|
NA905330000 | 38 | Electronics plate gasket l/h (8572) | Ask for a price |
|
NA905331000 | 39 | Electronics plate gasket r/h (8572) | Ask for a price |
|
NA905329000 | 40 | Electronics plate c/w studs (8572) | Ask for a price |
|
NA902254000 | 41 | Fuse bracket painted silver | Ask for a price |
|
NA900986000 | 42 | Nylon grommet nut (plastic insert to suit no 8 plastite screw) | Ask for a price |
|
NA291145000 | 43 | M4 shakeproof washer stainless steel | Ask for a price |
|
NA230102000 | 44 | Fuse holder rated at 60 amps | Ask for a price |
|
NA219569000 | 45 | No8.1/2 inch. Lg.pozi-pan.screw.stainless steel.plastite | Ask for a price |
|
NA230104000 | 46 | 30 amp maxi fuse | Ask for a price |
|
NA221091000 | 47 | 20 amp maxi fuse | Ask for a price |
|
NA208802000 | 49 | Maxi-fuse holder cover | Ask for a price |
|
NA904096000 | 49 | MOTOR CONTROLLER BRACKET PAINTED SILVER | Ask for a price |
|
NA904459000 | 50 | PROGRAMMED 70A MOTOR CONTROLLER (TGB) | Ask for a price |
|
NA219826000 | 51 | NO8 X 1 1/4 INCH LONG POZI DRIVE COUNTERSUNK HEAD SCREW | Ask for a price |
|
NA902253000 | 52 | Contactor bracket painted silver | Ask for a price |
|
NA230111000 | 53 | Contactor | Ask for a price |
|
NA219566000 | 54 | M4 x 6mm long pozi pan screw | Ask for a price |
|
NA905356000 | 55 | Pump control unit plate (8572) | Ask for a price |
|
NA905341000 | 56 | Kemo pwm power control 10a m171 | Ask for a price |
|
NA905332000 | 57 | Pump plate c/w studs (8572) | Ask for a price |
|
NA321256000 | 58 | Flojet pump 24v dc / 2 amps | Ask for a price |
|
NA304521000 | 59 | Filter plate assembly | Ask for a price |
|
NA208888000 | 61a-61d | Extended strainer | Ask for a price |
|
NA208827000 | 61a | Strainer black top spare part | Ask for a price |
|
NA208889000 | 61b | Extended strainer 50 mesh screen spare part | Ask for a price |
|
NA208830000 | 61c | Strainer gasket spare part | Ask for a price |
|
NA002088900 | 61d | Extended strainer clear bowl spare part for TTB 1117 | Ask for a price |
|
NA903445000 | 61 | Flow divider assy | Ask for a price |
|
NA905385000 | 62 | Tank to filter tube | Ask for a price |
|
NA905387000 | 63 | Filter to pump tube | Ask for a price |
|
NA905388000 | 64 | Pump to flow divider tube | Ask for a price |
|
NA905389000 | 65 | Flow divider to brush tube | Ask for a price |
|
NA905390000 | 66 | Vent tube | Ask for a price |
|
NA905340000 | 67 | Charger plate (20a) painted silver grey | Ask for a price |
|
NA208337000 | 68 | Charger plate punched gasket | Ask for a price |
|
NA219558000 | 69 | M5 stainless steel nutsert | Ask for a price |
|
NA230261000 | 70 | Charger assy meanwell (20a) (100-240v) | Ask for a price |
|
NA291132000 | 71 | M5 x 16mm long stainless steel pozi pan sems screw | Ask for a price |
|
NA902257000 | 72 | Charger splash skirt painted silver | Ask for a price |
|
NA291020000 | 73 | M5 stainless steel external shakeproof lock washer | Ask for a price |
|
NA219462000 | 74 | Rubber washer | Ask for a price |
|
NA902493000 | 75 | Charger led pcb spacer (5565/4555) | Ask for a price |
|
NA291115000 | 76 | M2 x 4.2mm long tappex (071m2) mentzer & meanwell only | Ask for a price |
|
NA280002000 | 77 | Led charger display pcb meanwell | Ask for a price |
|
NA219978000 | 78 | M2 x 6mm long pozi pan screw | Ask for a price |
|
NA208978000 | 79 | Charger lights overlay mentzer & meanwell only | Ask for a price |
|
NA303954000 | 80 | Plastic hinge assembly | Ask for a price |
|
NA219355000 | 81 | M5 form a stainless steel washer | Ask for a price |
|
NA291004000 | 82 | M5 x 10mm long stainless steel button head screw | Ask for a price |
|
NA219389000 | 83 | 3/8 bspp male c/w undercut & o ring to 10.5mm hosetail | Ask for a price |
|
NA208106000 | 84 | Bottle cap | Ask for a price |
|
NA905336000 | 85 | Retainer plate | Ask for a price |
|
NA219647000 | 86 | M6 form g stainless steel washer | Ask for a price |
|
NA219646000 | 87 | M6 x 16mm long pozi pan stainless steel screw traction machines only | Ask for a price |
|
NA220904000 | 88 | Cable clip platform | Ask for a price |
|
NA220403000 | 89 | Cable clip | Ask for a price |
|
NA902666000 | 90 | Battery connector (m6 - m10) 100ah version | Ask for a price |
|
NA219514000 | 91 | P-CLIP | Ask for a price |
|
NA291135000 | 92 | M5 x 10mm long stainless steel pozi pan sems screw | Ask for a price |
