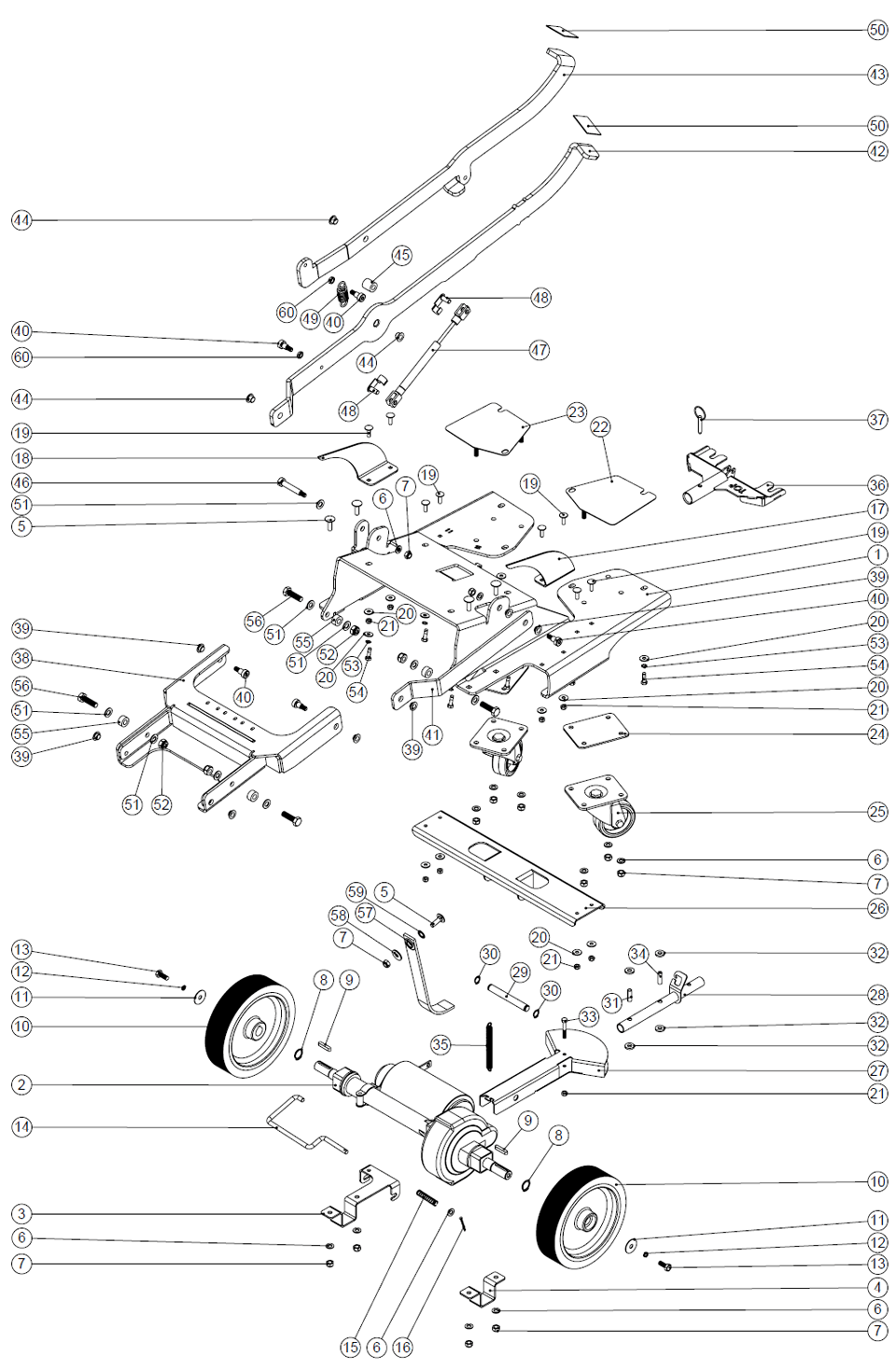

| Image | SKU# | Label on drawing | Description | Ask for a price |
|---|---|---|---|---|
|
NA905347000 | 1 | Tgb 8572 chassis weld assy | Ask for a price |
|
NA206724000 | 2 | Transaxle | Ask for a price |
|
NA392089000 | 3 | Transaxle clamp and brake lever bracket | Ask for a price |
|
NA329497000 | 4 | Transaxle mounting bracket | Ask for a price |
|
NA902010000 | 5 | M8 x 25 coach bolt s/s | Ask for a price |
|
NA219578000 | 6 | M8 form a stainless steel washer | Ask for a price |
|
NA219639000 | 7 | M8 stainless steel nylon insert nut | Ask for a price |
|
NA219889000 | 8 | 19mm heavy duty circlip | Ask for a price |
|
NA206744000 | 9 | 6mm x 6mm x 32mm feather key | Ask for a price |
|
NA204115000 | 10 | 200mm x 50mm traction wheel - grey pu tread combed profile | Ask for a price |
|
NA219877000 | 11 | M8 x 30 stainless steel washer | Ask for a price |
|
NA219898000 | 12 | M8 single coil stainless steel washer | Ask for a price |
|
NA219717000 | 13 | M8 x 20mm long hexagonal stainless steel bolt | Ask for a price |
|
NA303769000 | 14 | Brake lever | Ask for a price |
|
NA219326000 | 15 | 50mm long compression spring | Ask for a price |
|
NA219171000 | 16 | 3.2mm x 28mm split cotter pin | Ask for a price |
|
NA905348000 | 17 | Tgb 8572 wheel arch bracket lh | Ask for a price |
|
NA905349000 | 18 | Tgb 8572 wheel arch bracket rh | Ask for a price |
|
NA905350000 | 19 | M6 x 20 coach bolt s/s | Ask for a price |
|
NA219647000 | 20 | M6 form g stainless steel washer | Ask for a price |
|
NA219642000 | 21 | M6 stainless steel nylon insert nut | Ask for a price |
|
NA303981000 | 22 | Castor plate (lefthand side) | Ask for a price |
|
NA303980000 | 23 | Castor plate (righthand side) | Ask for a price |
|
NA329581000 | 24 | Castor adaptor spacer | Ask for a price |
|
NA204116000 | 25 | Heavy duty castor. Blue tyre | Ask for a price |
|
NA905352000 | 26 | Floor tool lifting bracket silver grey | Ask for a price |
|
NA303932000 | 27 | Floor tool lifting plate welded assembly | Ask for a price |
|
NA303946000 | 28 | Floor tool lifting tube welded assembly | Ask for a price |
|
NA206965000 | 29 | Pivot axle | Ask for a price |
|
NA219151000 | 30 | 13mm external circlip | Ask for a price |
|
NA206954000 | 31 | Spiro spacer | Ask for a price |
|
NA206964000 | 32 | Slide nylon spacer | Ask for a price |
|
NA291125000 | 33 | M6 x 40 long hex bolt stainless steel | Ask for a price |
|
NA206963000 | 34 | Vertical nylon spacer | Ask for a price |
|
NA20695V000 | 35 | Spring | Ask for a price |
|
NA304466000 | 36 | Floor tool bracket assembly (tt/ttb4045/4055) | Ask for a price |
|
NA206953000 | 37 | Detent pins | Ask for a price |
|
NA905322000 | 38 | Link arm weld assy | Ask for a price |
|
NA208330000 | 39 | Igus bearing (gfm 101206) | Ask for a price |
|
NA208313000 | 40 | M8 x 10 x 12mm long hex socket shoulder bolt | Ask for a price |
|
NA905326000 | 41 | Brush deck lifting link | Ask for a price |
|
NA905345000 | 42 | Foot pedal lever zinc plated | Ask for a price |
|
NA404120000 | 43 | Extra pressure deck arm (zinc plated) (pressure off version) | Ask for a price |
|
NA208331000 | 44 | Igus bearing (gfm 101209) | Ask for a price |
|
NA208350000 | 45 | Nylon spacer i/d 10.2mm x o/d 20.0mm x length 21.0mm | Ask for a price |
|
NA208333000 | 46 | M8 x 10 x 50mm long hex socket shoulder bolt | Ask for a price |
|
NA208325000 | 47 | Gas strut | Ask for a price |
|
NA208634000 | 48 | Gas ram clevis clip | Ask for a price |
|
NA208555000 | 49 | Pressure off spring | Ask for a price |
|
NA903064000 | 50 | Foot pedal pad (red) 903063 cut to lenght | Ask for a price |
|
NA219903000 | 51 | M10 form a stainless steel washer | Ask for a price |
|
NA219897000 | 52 | M10 stainless steel nylon insert nut | Ask for a price |
|
NA902353000 | 53 | M6 external shakeproof washer stainless steel | Ask for a price |
|
NA291144000 | 54 | M6 x 20mm lg hex head screw stainless steel c/w threadlock | Ask for a price |
|
NA905732000 | 55 | Nylon spacer id 10.2mm x od 20mm x length 10mm | Ask for a price |
|
NA219895000 | 56 | M10 x 35mm long hexagonal stainless steel screw | Ask for a price |
|
NA903683000 | 57 | Anti-static strap (cut to lenght: 270mm long) | Ask for a price |
|
NA219716000 | 58 | M8 form g stainless steel washer | Ask for a price |
|
NA291062000 | 59 | M10 internal lock washer stainless steel | Ask for a price |
|
NA219751000 | 60 | M8 stainless steel half nut | Ask for a price |
