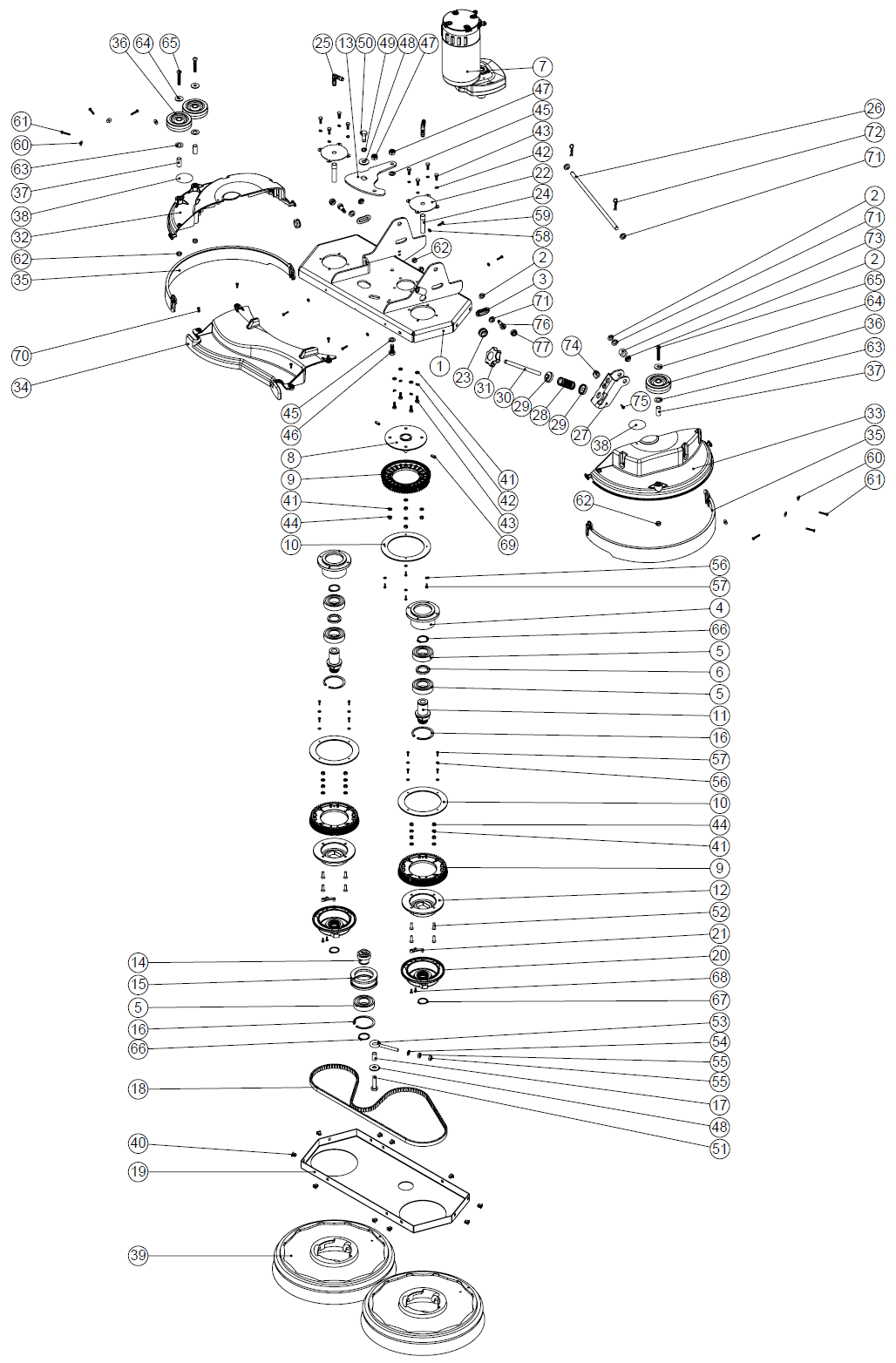

| Image | SKU# | Label on drawing | Description | Ask for a price |
|---|---|---|---|---|
|
NA905338000 | 1 | Twin brush deck weld assy zinc plated | Ask for a price |
|
NA208330000 | 2 | Igus bearing (gfm 101206) | Ask for a price |
|
NA237162000 | 3 | Slider bush | Ask for a price |
|
NA903420000 | 4 | Bearing housing | Ask for a price |
|
NA208878000 | 5 | Bearing i/d30mm o/d62mm | Ask for a price |
|
NA903439000 | 6 | Spacer o/d 40mm x i/d 30mm x 5mm | Ask for a price |
|
NA205192000 | 7 | Mrp6 ip20 amer motor | Ask for a price |
|
NA904836000 | 8 | Brush motor pulley plate weld assy zinc plated | Ask for a price |
|
NA237680000 | 9 | Large pulley 56th | Ask for a price |
|
NA903423000 | 10 | Pulley flange plate | Ask for a price |
|
NA903421000 | 11 | Brush pulley shaft | Ask for a price |
|
NA903440000 | 12 | Pulley mounting adapter | Ask for a price |
|
NA903619000 | 13 | Tensioner pivot plate zinc plated | Ask for a price |
|
NA903419000 | 14 | Tensioner shaft | Ask for a price |
|
NA903424000 | 15 | Idler | Ask for a price |
|
NA230200000 | 16 | 62mm internal circlip | Ask for a price |
|
NA903429000 | 17 | 1/2 inch dia x 18g s/s tube (0.022) | Ask for a price |
|
NA903438000 | 18 | Belt (gates gt3 - 1440 - 8mgt - 12) | Ask for a price |
|
NA903428000 | 19 | Twin brush deck - main plate cover | Ask for a price |
|
NA230285000 | 20 | Modified chuck (cro) | Ask for a price |
|
NA237730000 | 21 | Spring clip | Ask for a price |
|
NA903432000 | 22 | Twin brush water feed plate | Ask for a price |
|
NA208143000 | 23 | 20mm grommet x 6mm panel thickness | Ask for a price |
|
NA903446000 | 24 | Motor shaft insert | Ask for a price |
|
NA903641000 | 25 | 10mm hosetail elbow | Ask for a price |
|
NA905317000 | 26 | Pivot rod | Ask for a price |
|
NA905398000 | 27 | Brush deck pitch adjuster zinc plated | Ask for a price |
|
NA208721000 | 28 | Compression spring | Ask for a price |
|
NA905319000 | 29 | Spring retainer moulding modified | Ask for a price |
|
NA905316000 | 30 | M10 x 140mm long stainless steel threaded bar | Ask for a price |
|
NA903281000 | 31 | M10 lobe knob (red) | Ask for a price |
|
NA903433000 | 32 | Twin brush rh deck moulding | Ask for a price |
|
NA903434000 | 33 | Twin brush lh deck moulding | Ask for a price |
|
NA905071000 | 34 | Twin brush centre deck moulding | Ask for a price |
|
NA903437000 | 35 | Twin brush deck splash skirt | Ask for a price |
|
NA204068000 | 36 | 3 inch grey wheel | Ask for a price |
|
NA391224000 | 37 | 1/2 inch dia x 18g s/s tube (0.026) | Ask for a price |
|
NA903845000 | 38 | Do not stand here warning label ø50mm | Ask for a price |
|
NA903449000 | 39 | 370mm polyscrub brush | Ask for a price |
|
NA900986000 | 40 | Nylon grommet nut (plastic insert to suit no 8 plastite screw) | Ask for a price |
|
NA219870000 | 41 | M6 form a washer stainless steel | Ask for a price |
|
NA219718000 | 42 | Washer.m6.spring.stainless steel | Ask for a price |
|
NA219719000 | 43 | M6 x 16mm long hexagonal stainless steel head bolt | Ask for a price |
|
NA219642000 | 44 | M6 stainless steel nylon insert nut | Ask for a price |
|
NA219903000 | 45 | M10 form a stainless steel washer | Ask for a price |
|
NA219909000 | 46 | M10 x 25mm long hexagonal stainless steel screw | Ask for a price |
|
NA219897000 | 47 | M10 stainless steel nylon insert nut | Ask for a price |
|
NA291124000 | 48 | M10 penny washer stainless steel | Ask for a price |
|
NA219899000 | 49 | M10 single coil stainless steel washer | Ask for a price |
|
NA291141000 | 50 | M10 x 25mm lg hex head screw stainless steel c/w threadlock | Ask for a price |
|
NA903430000 | 51 | M10 x 40mm long hexagonal stainless steel screw | Ask for a price |
|
NA903441000 | 52 | M6 x 20mm long stainless steel countersunk pozi screw | Ask for a price |
|
NA903422000 | 53 | M8 x 80mm eye bolt zinc plated | Ask for a price |
|
NA219578000 | 54 | M8 form a stainless steel washer | Ask for a price |
|
NA219079000 | 55 | M8 plain nut | Ask for a price |
|
NA219688000 | 56 | M4 form a stainless steel washer | Ask for a price |
|
NA291061000 | 57 | No6 X 1/.2 INCH LONG POZI PAN PLASTITE SCREW (STAINLESS STEEL) | Ask for a price |
|
NA219355000 | 58 | M5 form a stainless steel washer | Ask for a price |
|
NA219568000 | 59 | No8 x 3/4 inch long pozi pan stainless steel screw | Ask for a price |
|
NA219644000 | 60 | M5 form g stainless steel washer | Ask for a price |
|
NA219369000 | 61 | No8 X 1 INCH LONG POZI PAN STAINLESS STEEL PLASTITE SCREW | Ask for a price |
|
NA219639000 | 62 | M8 stainless steel nylon insert nut | Ask for a price |
|
NA219302000 | 63 | M12 form b stainless steel washer | Ask for a price |
|
NA219716000 | 64 | M8 form g stainless steel washer | Ask for a price |
|
NA219822000 | 65 | M8 x 45mm long socket button stainless steel head bolt | Ask for a price |
|
NA903435000 | 66 | 30mm external circlip | Ask for a price |
|
NA230048000 | 67 | 26mm external circlip | Ask for a price |
|
NA219683000 | 68 | No6 x 3/8 inch long pozi pan black countersunk plastite screw | Ask for a price |
|
NA291139000 | 69 | 6mm x 16mm stainless steel roll pin | Ask for a price |
|
NA219569000 | 70 | No8.1/2 inch. Lg.pozi-pan.screw.stainless steel.plastite | Ask for a price |
|
NA219964000 | 71 | Nylon washer (18mm o/d x 10.4mm i/d x 3mm thick) | Ask for a price |
|
NA291102000 | 72 | Small r pin (s masters 89100 ss) | Ask for a price |
|
NA905320000 | 73 | Nylon spacer id 10.2mm x od 20mm x length 15mm | Ask for a price |
|
NA090364400 | 74 | Cro lifting mech cam | Ask for a price |
|
NA021937000 | 75 | No8 X 5/8 INCH LONG PLASTITE STAINLESS STEEL SCREW | Ask for a price |
|
NA208332000 | 76 | M8 x 10 x 16mm long hex socket shoulder bolt | Ask for a price |
|
NA237632000 | 77 | Shoulder bolt cover | Ask for a price |
