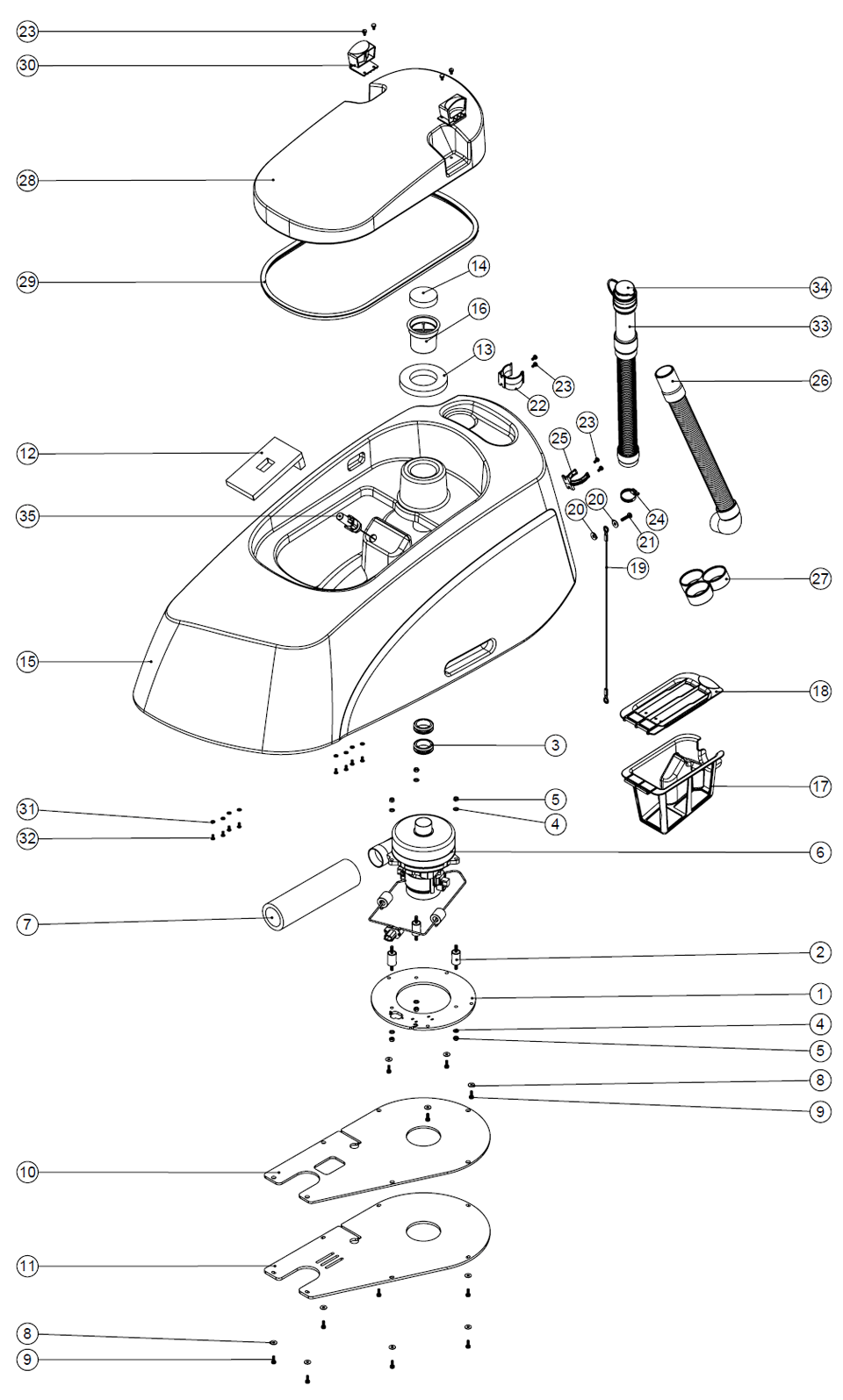

| Image | SKU# | Label on drawing | Description | Ask for a price |
|---|---|---|---|---|
|
NA905358000 | 1 | Tangential vac motor bracket (pp) | Ask for a price |
|
NA208334000 | 2 | 30MM x 20MM ANTI VIBRATION MOUNT | Ask for a price |
|
NA208144000 | 3 | 38mm grommet x 6mm panel thickness | Ask for a price |
|
NA219560000 | 4 | M6 form b stainless steel washer | Ask for a price |
|
NA219642000 | 5 | M6 stainless steel nylon insert nut | Ask for a price |
|
NA906443000 | 6 | 24v tangential discharge 2-stage vac motor & plug assembly | Ask for a price |
|
NA208306000 | 7 | Silencer foam tube | Ask for a price |
|
NA219644000 | 8 | M5 form g stainless steel washer | Ask for a price |
|
NA291132000 | 9 | M5 x 16mm long stainless steel pozi pan sems screw | Ask for a price |
|
NA905360000 | 10 | Vac motor bottom plate liner | Ask for a price |
|
NA905359000 | 11 | Vac motor bottom plate | Ask for a price |
|
NA907225000 | 12 | Float pad ( for 85l tank) | Ask for a price |
|
NA208947000 | 13&14 | Inner foam filter/outer foam filter | Ask for a price |
|
NA906135000 | 15 | Tgb 8572 top tank | Ask for a price |
|
NA237688000 | 16 | Foam filter body | Ask for a price |
|
NA903283000 | 17 | Filter basket (red) | Ask for a price |
|
NA903284000 | 18 | Processed filter basket lid (red) | Ask for a price |
|
NA208204000 | 19 | 495mm long lifting link wire | Ask for a price |
|
NA219647000 | 20 | M6 form g stainless steel washer | Ask for a price |
|
NA902232000 | 21 | M6 x 25mm long pozi pan screw stainless steel | Ask for a price |
|
NA237382000 | 22 | Acetal hose clip moulding | Ask for a price |
|
NA291135000 | 23 | M5 x 10mm long stainless steel pozi pan sems screw | Ask for a price |
|
NA237754000 | 25 | 35-38mm hose clip | Ask for a price |
|
NA280021000 | 26 | 35mm x 1000mm long 3:1 stretch hose (short & long cuff) | Ask for a price |
|
NA237718000 | 27 | Hose guide | Ask for a price |
|
NA903043000 | 28 | Graphite grey separator hood moulding | Ask for a price |
|
NA391319000 | 29 | Seperator sealing strip | Ask for a price |
|
NA902919000 | 30 | Clip moulding (red) | Ask for a price |
|
NA219355000 | 31 | M5 form a stainless steel washer | Ask for a price |
|
NA291004000 | 32 | M5 x 10mm long stainless steel button head screw | Ask for a price |
|
NA901548000 | 33 | 35mm x 250mm stretch hose (3:1) c/w adjustable cuff + cap | Ask for a price |
|
NA900903000 | 34 | Hose closure replacement kit (35mm-38mm stretch hose) spare part | Ask for a price |
|
NA902234000 | 35 | Float switch (n.c.) 903038 spare end tip | Ask for a price |
