Spare Parts for:

Nacecare

Autoscrubber 20" ETB 1120

#NA776316000

ETB 1120 autoscrubber 20" with battery having a run time of 2.5 to 3.5 hours, compact, easy to handle, steel chassis and safe low voltage shut off

Ask for a price

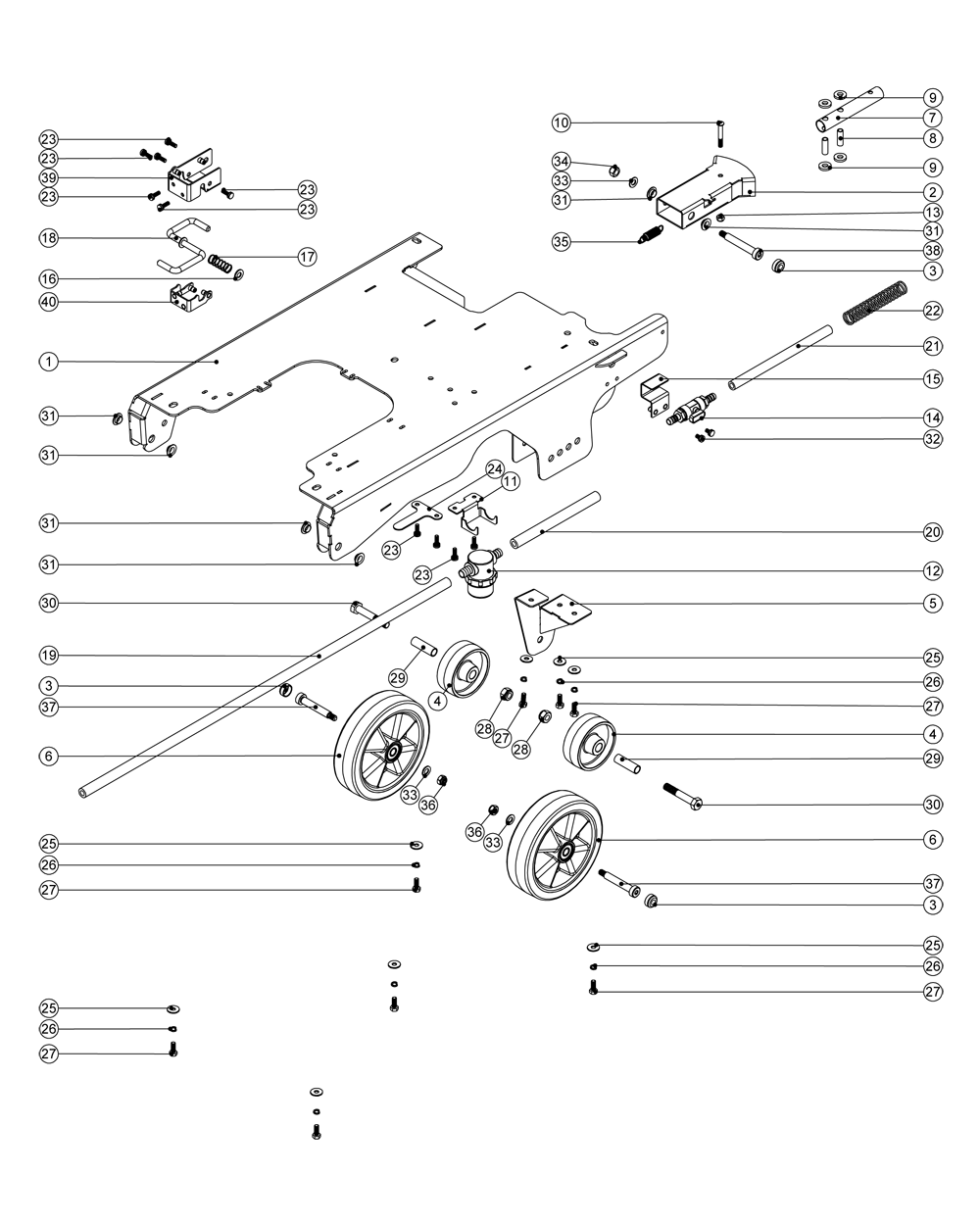

Parts Schema

Chassis Assembly (1312) Serial numbers 1312 and higher

SKU#	Label on drawing	Description	Ask for a price
NA304328000	1	Ttb4045 / ttb4455 stainless steel chassis welded assembly ttb machines	Ask for a price
NA304383000	1	Etb mild steel chassis welded assemblypainted grey etb machines	Ask for a price
NA304359000	2	Tt/ttb/4045/4055 squeegee mount weld assembly	Ask for a price
NA237632000	3	Shoulder bolt cover	Ask for a price
NA206713000	4	80mm diameter black wheel	Ask for a price
NA304360000	5	Transport wheel bracket weld assembly ttb machines	Ask for a price
NA404152000	5	Mild steel painted grey transport wheel bracket weld assembly etb machines	Ask for a price
NA208638000	6	160mm WHEEL WITH POLYURETHENE TIRE	Ask for a price
NA304356000	7	Floor tool pivot tube	Ask for a price
NA206954000	8	Spiro spacer	Ask for a price
NA206964000	9	Slide nylon spacer	Ask for a price
NA219807000	10	M6 x 40mm long socket button head bolt	Ask for a price
NA392199000	11	Filter bracket	Ask for a price
NA208761000	14	10mm hose tail to 10mm hose tail ball valve assembly	Ask for a price
NA304453000	15	Nutserted 10mm tap bracket	Ask for a price
NA219010000	16	M8 form a washer	Ask for a price
NA208578000	17	Deck lock spring	Ask for a price
NA304358000	18	Deck lock bar weld assembly	Ask for a price
NA391453000	19	Silicon tube 750mm long x 8mm i/d x 3.2mm wall section	Ask for a price
NA391452000	20	Silicon tube 8mm i/d x 3.2mm wall section (cut 190mm)	Ask for a price
NA391481000	21	200mm long braided pvc hose	Ask for a price
NA219333000	22	Compression spring	Ask for a price
NA219045000	23	M5 x 16mm long pozi pan sems screw	Ask for a price
NA321902000	24	Silencer clamp	Ask for a price
NA219647000	25	M6 form g stainless steel washer	Ask for a price
NA219718000	26	Washer.m6.spring.stainless steel	Ask for a price
NA219719000	27	M6 x 16mm long hexagonal stainless steel head bolt	Ask for a price
NA219649000	28	M10 nylon insert nut	Ask for a price
NA391440000	29	1/2 inch x 18g x 41mm long stainless steel spacer tube	Ask for a price
NA219894000	30	M10 x 60mm long hexagonal stainless steel bolt	Ask for a price
NA208312000	31	Igus bearing (gfm 101205)	Ask for a price
NA219047000	32	M5 x 10mm long pozi pan sems screw	Ask for a price
NA219578000	33	M8 form a stainless steel washer	Ask for a price
NA219639000	34	M8 stainless steel nylon insert nut	Ask for a price
NA208619000	35	Floor tool spring	Ask for a price
NA219857000	36	M8 nylon insert half nut	Ask for a price
NA291057000	37	M8 x 10 x 55mm long hex socket shoulder bolt	Ask for a price
NA208574000	38	M8 x 10 x 60mm long hex socket shoulder bolt	Ask for a price
NA304409000	39	Nutserted deck lock bar guide	Ask for a price
NA304411000	40	Nutserted lock bar clamp	Ask for a price
