Autoscrubber 20" ETB 1120 #NA776316000

Spare Parts for:

Autoscrubber 20" ETB 1120
#NA776316000


ETB 1120 autoscrubber 20" with battery having a run time of 2.5 to 3.5 hours, compact, easy to handle, steel chassis and safe low voltage shut off
Parts Schema

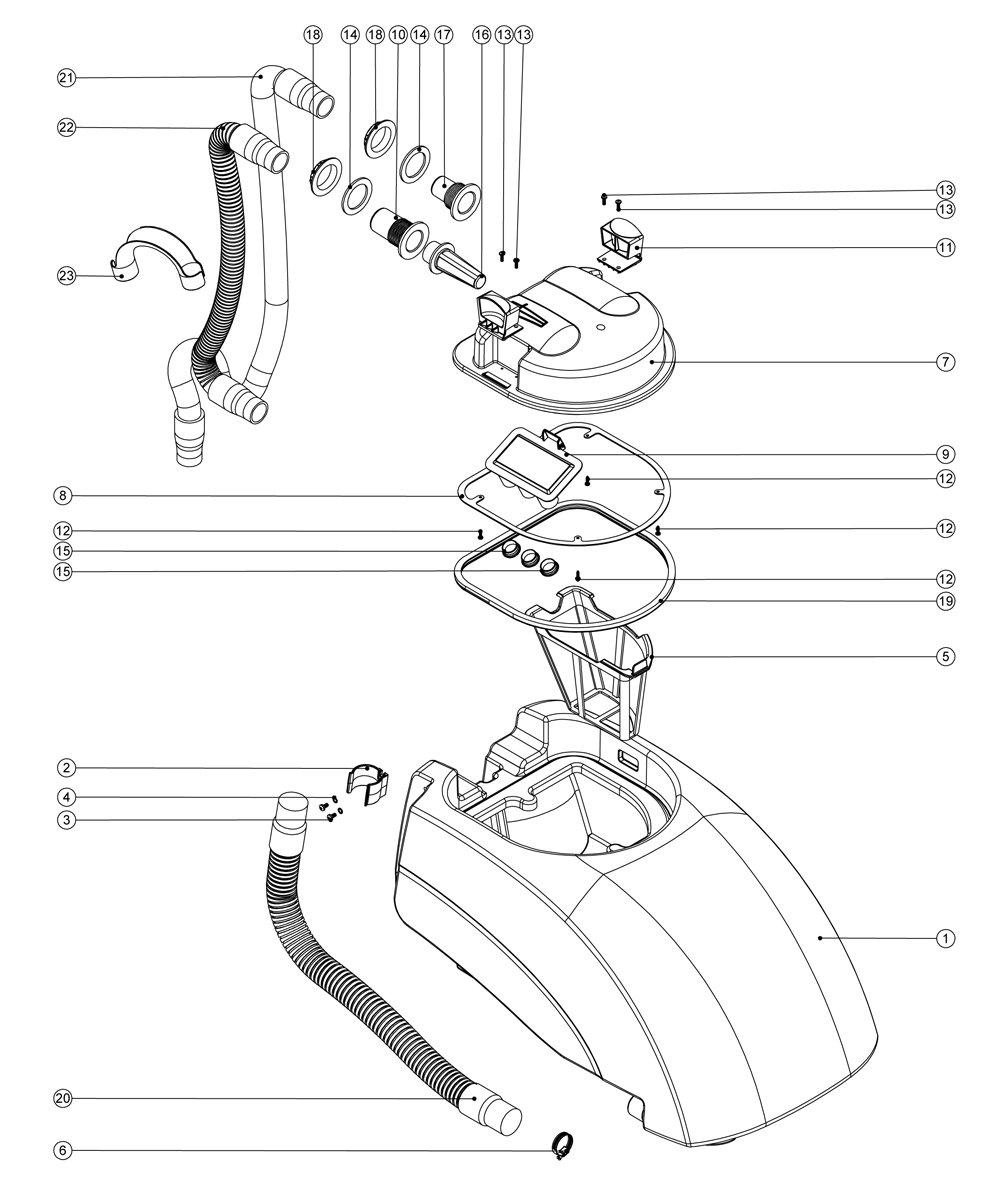

Tank Assembly (1311) Serial numbers 1311 and higher
Image SKU# Label on drawing Description Ask for a price
NA237483000 1 Etb4045/4055 red top tank moulding etb version (red or blue) Ask for a price
NA237483000 1 Etb4045/4055 red top tank moulding etb version (red or blue) Ask for a price
NA237404000 1 Tt4045/tt4055 blue top tank tt blue top tank (mains) Ask for a price
NA237481000 1 Et4045/ et4055 red top tank et red top tank (mains) Ask for a price
NA237382000 2 Acetal hose clip moulding Ask for a price
NA219668000 3 M5 x 10mm long pozi pan stainless steel screw Ask for a price
NA219016000 4 M5 shakeproof washer Ask for a price
NA207000000 5 Grit filter basket Ask for a price
NA237381000 7 Integrated chassis separator Ask for a price
NA392200000 8 Filter gasket ring Ask for a price
NA237090000 9 Separator float moulding (mk 2) Ask for a price
NA237018000 10 38mm drain hose connector Ask for a price
NA229494000 11 Clip moulding Ask for a price
NA219852000 12 No6 x 1/2 long pozi pan stainless steel self tap screw Ask for a price
NA219569000 13 No8.1/2 inch. Lg.pozi-pan.screw.stainless steel.plastite Ask for a price
NA219310000 14 Rubber washer Ask for a price
NA206315000 15 Tube end plug Ask for a price
NA207122000 16 Barrel filter Ask for a price
NA206228000 17 Drain hose connector et/etb version (32mm) Ask for a price
NA237018000 17 38mm drain hose connector Ask for a price
NA206116000 18 Black nut Ask for a price
NA208591000 19 New separator gasket Ask for a price
NA280018000 20 38mm x 470mm long 3:1 stretch hose c/w cap & strap Ask for a price
NA206698000 21 Hose connector between scraper and autoscrubber Ask for a price
NA280019000 21 35mm x 690mm long 3:1 stretch hose (short & long cuff) Ask for a price
NA213058000 22 Vac hose 650mm x ø38mm Ask for a price
NA206512000 23 Hose hook et/etb version only Ask for a price
