Spare Parts for:

Nacecare

Autoscrubber 20" ETB 1120

#NA776316000

ETB 1120 autoscrubber 20" with battery having a run time of 2.5 to 3.5 hours, compact, easy to handle, steel chassis and safe low voltage shut off

Ask for a price

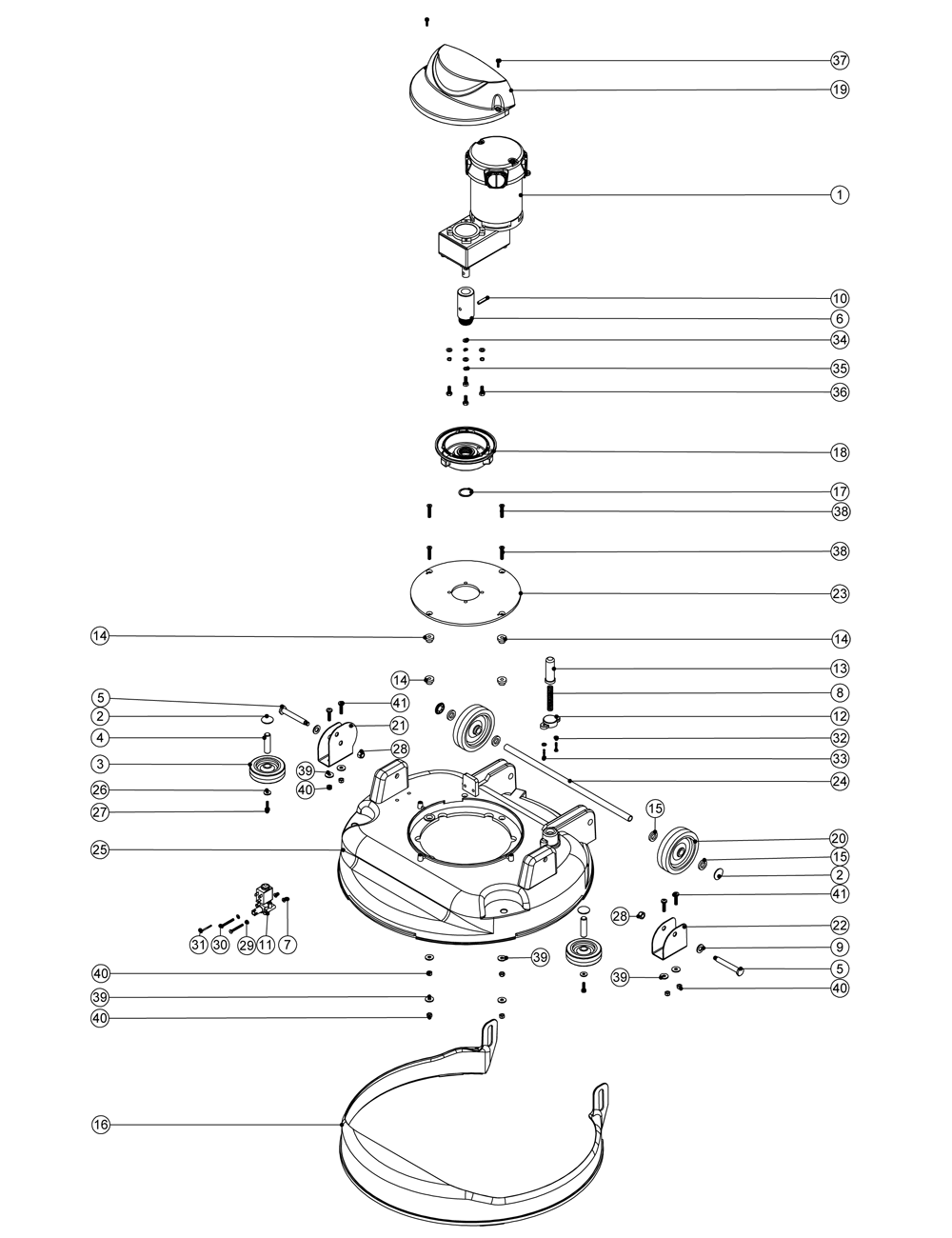

Parts Schema

Deck Assembly (1310) Serial numbers 1310 and higher

SKU#	Label on drawing	Description	Ask for a price
NA205245000	1	Amer 100rpm motor 230222 carbon brushes (set)	Ask for a price
NA204021000	2	12.7mm stainless steel hub cap	Ask for a price
NA204068000	3	3 inch grey wheel	Ask for a price
NA206013000	4	Buffer wheel pin	Ask for a price
NA208626000	5	Tt/ttb4055 pivot pin	Ask for a price
NA208727000	6	Drive shaft	Ask for a price
NA219009000	7	M4 brass tappex insert	Ask for a price
NA219692000	8	Compression spring	Ask for a price
NA219449000	9	M10 form a washer	Ask for a price
NA220379000	11	Electric solenoid valve for autoscrubber from Nacecare.	Ask for a price
NA223242000	12	Plunger mounting plate moulding	Ask for a price
NA229128000	13	Plunger	Ask for a price
NA229285000	14	Motor mounting spacer	Ask for a price
NA229346000	15	Spacer	Ask for a price
NA229562000	16	Splash skirt moulding	Ask for a price
NA230048000	17	26mm external circlip	Ask for a price
NA230207000	18	Die cast chuck machined	Ask for a price
NA237380000	19	Amer motor cover	Ask for a price
NA329187000	20	100mm wheel (modified)	Ask for a price
NA392248000	21	Deck mount bracket	Ask for a price
NA392279000	22	Deck mount rh (550 deck version)	Ask for a price
NA404166000	23	Ttb4045/4055 amer motor adaptor plate paint silver grey	Ask for a price
NA391439000	24	1/2 inch diameter x 18g stainless steel tube (0.375)	Ask for a price
NA304404000	25	Ttb4055 deck moulding drilled (new design)	Ask for a price
NA219005000	26	M5 form g washer	Ask for a price
NA219546000	27	M5 x 20mm long pozi pan sems screw	Ask for a price
NA219639000	28	M8 stainless steel nylon insert nut	Ask for a price
NA219206000	29	M4 form a washer	Ask for a price
NA219703000	30	M4 x 35mm long stainless steel pozi pan screw	Ask for a price
NA219251000	31	Replacement mpm connector m3 screw	Ask for a price
NA219355000	32	M5 form a stainless steel washer	Ask for a price
NA219568000	33	No8 x 3/4 inch long pozi pan stainless steel screw	Ask for a price
NA219870000	34	M6 form a washer stainless steel	Ask for a price
NA219549000	35	M6 single coil washer	Ask for a price
NA219719000	36	M6 x 16mm long hexagonal stainless steel head bolt	Ask for a price
NA219472000	37	M4 x 16mm long pozi pan sems screw	Ask for a price
NA291031000	38	M6 x 30mm long stainless steel countersunk pozi pan screw	Ask for a price
NA219008000	39	M6 form g washer	Ask for a price
NA219642000	40	M6 stainless steel nylon insert nut	Ask for a price
NA219056000	41	M6 x 25mm long pozi pan screw	Ask for a price
