Spare Parts for:

Nacecare

Autoscrubber 20" ETB 1120

#NA776316000

ETB 1120 autoscrubber 20" with battery having a run time of 2.5 to 3.5 hours, compact, easy to handle, steel chassis and safe low voltage shut off

Ask for a price

Parts Schema

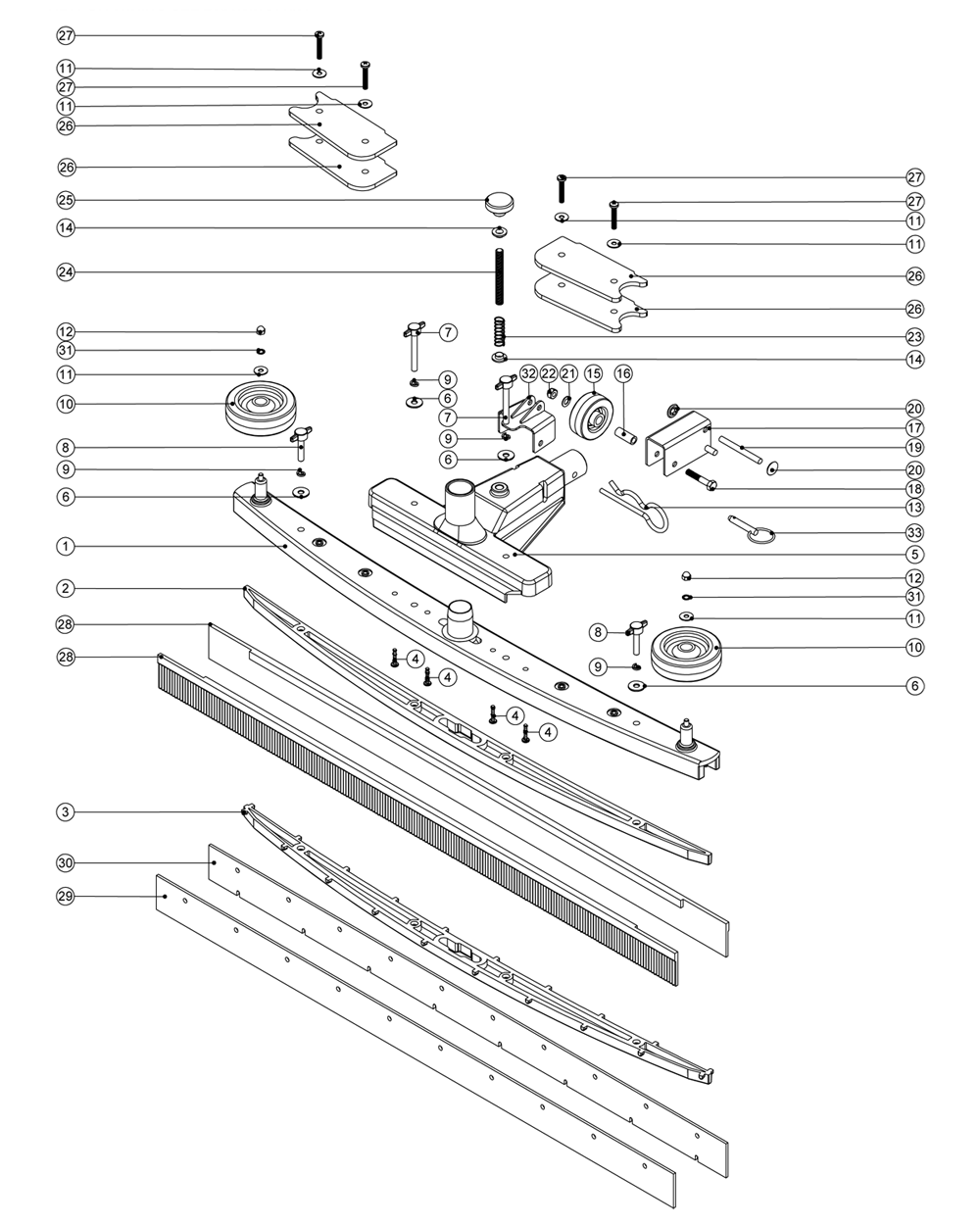

Squeegee Assembly (1310) Serial numbers 1310 and higher

SKU#	Label on drawing	Description	Ask for a price
NA229403000	1	Top moulding tta-90b / tta-91b	Ask for a price
NA229401000	2	Bottom moulding tta-90b / tta-91b	Ask for a price
NA229475000	3	Bottom moulding (with lugs) tt-345 / ttb-345 machine	Ask for a price
NA219568000	4	No8 x 3/4 inch long pozi pan stainless steel screw	Ask for a price
NA229370000	5	Centre moulding + insert	Ask for a price
NA219647000	6	M6 form g stainless steel washer	Ask for a price
NA301195000	7	M6 x 50mm tee knob assembly	Ask for a price
NA301194000	8	M6 x 30mm tee knob assembly	Ask for a price
NA219718000	9	Washer.m6.spring.stainless steel	Ask for a price
NA204068000	10	3 inch grey wheel	Ask for a price
NA219644000	11	M5 form g stainless steel washer	Ask for a price
NA219645000	12	M5 stainless steel dome nut	Ask for a price
NA229295000	13	Retaining pin	Ask for a price
NA219417000	14	Insulator bush	Ask for a price
NA215006000	15	51mm diameter black & grey wheel	Ask for a price
NA204023000	16	24mm long wheel insert	Ask for a price
NA329673000	17	Height adjustor bracket welded assembly	Ask for a price
NA219064000	18	M6 x 35mm long hex bolt	Ask for a price
NA390401000	19	6mm dia x 60mm long stainless steel bar	Ask for a price
NA219402000	20	6mm stainless starlock washer + cap	Ask for a price
NA219007000	21	M6 form b washer	Ask for a price
NA219642000	22	M6 stainless steel nylon insert nut	Ask for a price
NA219312000	23	Compression spring	Ask for a price
NA229283000	24	Height adjustment shaft	Ask for a price
NA215008000	25	Adjusting knob	Ask for a price
NA429067000	26	Weight (painted silver grey) tta-91b / tta-93b	Ask for a price
NA219720000	27	M5 x 30mm long stainless steel pozi pan screw	Ask for a price
NA217349000	28	790mm long fixed floor tool rubber blade tta-90b / tta-91b	Ask for a price
NA217287000	29	790mm long fixed floor tool polyurethane back blade tt-345 / ttb-345 machine	Ask for a price
NA217286000	30	790mm long fixed floor tool polyurethane fron blade tt-345 / ttb-345 machine	Ask for a price
NA219016000	31	M5 shakeproof washer	Ask for a price
NA304448000	32	Etb lifting bracket weld assembly	Ask for a price
NA206953000	33	Detent pins	Ask for a price
