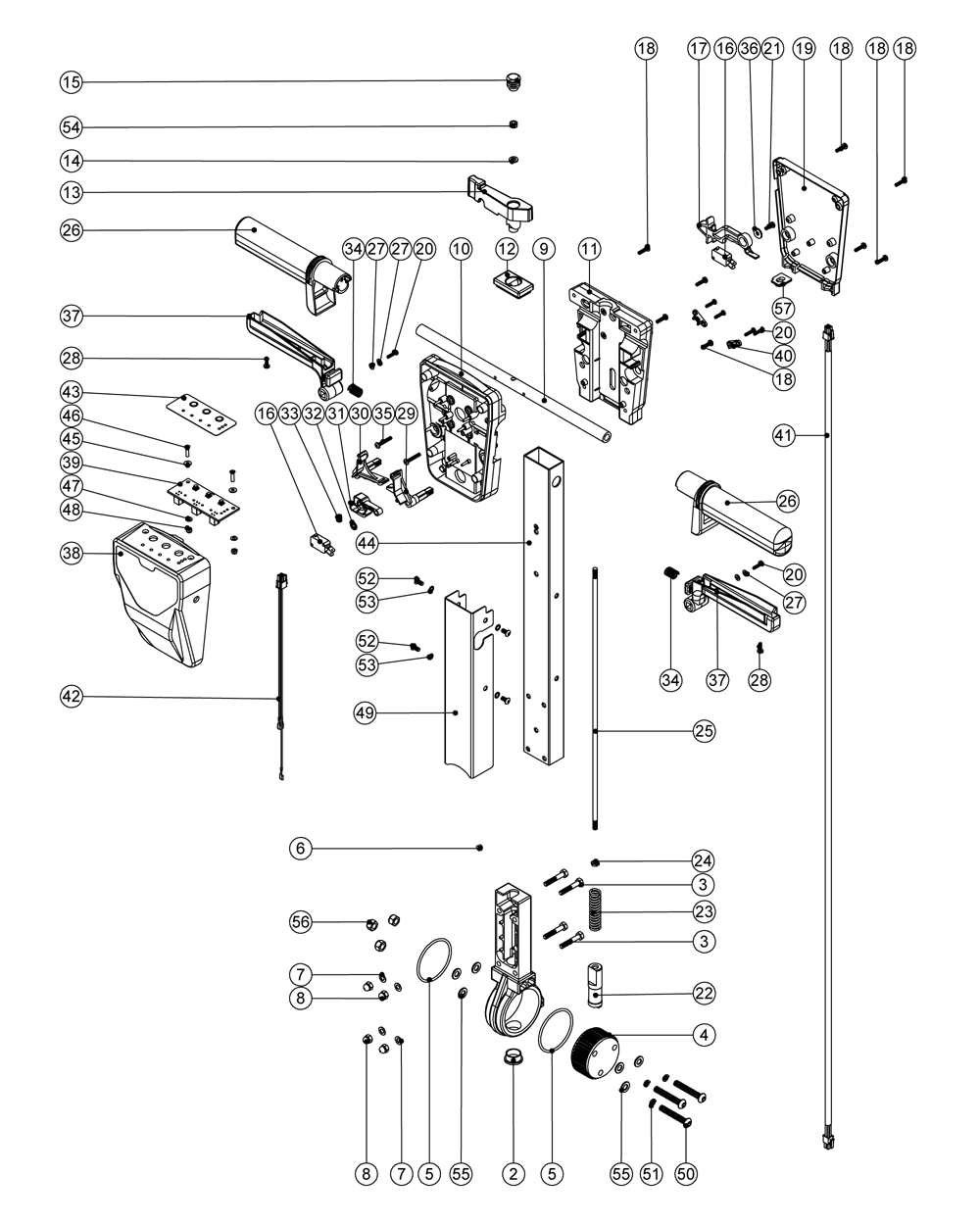

| Image | SKU# | Label on drawing | Description | Ask for a price |
|---|---|---|---|---|
|
NA304437000 | 1 | Processed handle casting | Ask for a price |
|
NA229099000 | 2 | 25mm dia hole plug | Ask for a price |
|
NA219064000 | 3 | M6 x 35mm long hex bolt | Ask for a price |
|
NA229074000 | 4 | Adjustment gear | Ask for a price |
|
NA219254000 | 5 | O ring 3mm dia x 60mm i/d | Ask for a price |
|
NA229009000 | 6 | Blanking plug | Ask for a price |
|
NA219007000 | 7 | M6 form b washer | Ask for a price |
|
NA219080000 | 8 | M6 domenut | Ask for a price |
|
NA338269000 | 9 | Cross tube | Ask for a price |
|
NA229508000 | 10 | Flame retardant front inner half moulding | Ask for a price |
|
NA229509000 | 11 | Flame retardant rear inner half moulding | Ask for a price |
|
NA227582000 | 12 | Handle plug moulding | Ask for a price |
|
NA227583000 | 13 | Adjustment lever moulding | Ask for a price |
|
NA219493000 | 14 | M6 nylon washer | Ask for a price |
|
NA20638V000 | 15 | 19mm black tube end stop | Ask for a price |
|
NA229483000 | 16 | Snap action switch | Ask for a price |
|
NA227584000 | 17 | Interlock lever moulding | Ask for a price |
|
NA219105000 | 18 | No8 X 5/8 INCH LONG POZI PAN PLASTITE SCREW | Ask for a price |
|
NA229546000 | 19 | Battery style flame retardent rear cover moulding | Ask for a price |
|
NA219107000 | 20 | No6 x 5/8 inch long pozi pan plastite screw | Ask for a price |
|
NA219601000 | 21 | No8 X 3/8 INCH LONG POZI PAN PLASTITE SCREW | Ask for a price |
|
NA229073000 | 22 | Gear locking pin | Ask for a price |
|
NA229138000 | 23 | Spring | Ask for a price |
|
NA219099000 | 24 | M6 half nut | Ask for a price |
|
NA229461000 | 25 | 440mm handle locking rod | Ask for a price |
|
NA227580000 | 26 | Hand grip moulding | Ask for a price |
|
NA219206000 | 27 | M4 form a washer | Ask for a price |
|
NA219270000 | 28 | No8 X 1/2 INCH LONG POZI PAN SELF TAP SCREW | Ask for a price |
|
NA227585000 | 29 | Left hand switch operating lever moulding | Ask for a price |
|
NA227586000 | 30 | Right hand switch operating lever moulding | Ask for a price |
|
NA227587000 | 31 | Centre switch operating lever moulding | Ask for a price |
|
NA219805000 | 32 | 4mm spirefix | Ask for a price |
|
NA219804000 | 33 | Switch compression spring | Ask for a price |
|
NA219803000 | 34 | Trigger compression spring | Ask for a price |
|
NA219811000 | 35 | No8 x 1 inch long pozi-pan self tap screw | Ask for a price |
|
NA219005000 | 36 | M5 form g washer | Ask for a price |
|
NA227581000 | 37 | Trigger moulding | Ask for a price |
|
NA237362000 | 38 | Flame retardent front cover moulding (hi/lo) | Ask for a price |
|
NA909612000 | 39 | TTB 1120 PCB KIT | Ask for a price |
|
NA229669000 | 40 | Loline handle cable clamp | Ask for a price |
|
NA208469000 | 41 | Ttb 1840 4 core loom assembly | Ask for a price |
|
NA208486000 | 42 | 3 core handle loom | Ask for a price |
|
NA208622000 | 43 | Control panel overlay hi lo | Ask for a price |
|
NA304406000 | 44 | 430mm handle tube - Nutserted | Ask for a price |
|
NA208521000 | 45 | Nylon washer 10.0 od x 4.1 id x 1.0mm | Ask for a price |
|
NA219407000 | 46 | M4 x 16mm long pozi pan countersunk screw | Ask for a price |
|
NA219688000 | 47 | M4 form a stainless steel washer | Ask for a price |
|
NA219083000 | 48 | M4 nylon insert nut | Ask for a price |
|
NA219922000 | 50 | M8 x 50mm long socket button head stainless steel bolt | Ask for a price |
|
NA219019000 | 51 | M8 coil washer | Ask for a price |
|
NA291004000 | 52 | M5 x 10mm long stainless steel button head screw | Ask for a price |
|
NA219016000 | 53 | M5 shakeproof washer | Ask for a price |
|
NA219642000 | 54 | M6 stainless steel nylon insert nut | Ask for a price |
|
NA219578000 | 55 | M8 form a stainless steel washer | Ask for a price |
|
NA219639000 | 56 | M8 stainless steel nylon insert nut | Ask for a price |
|
NA227666000 | 57 | Blanking plug | Ask for a price |
