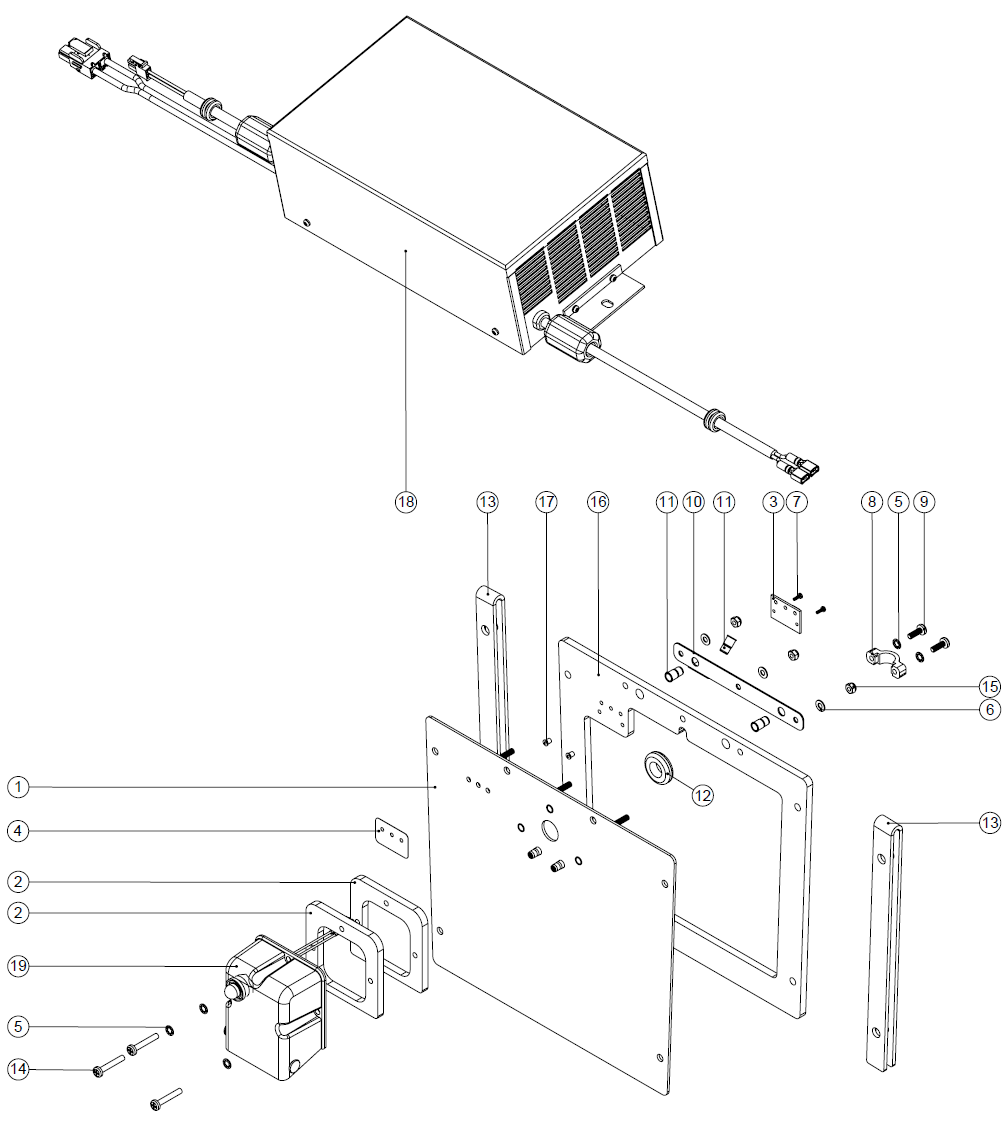

| Image | SKU# | Étiquette schéma | Description | Demander un prix |
|---|---|---|---|---|
|
NA330202000 | 1 | Electronics front cover plate sub assy mentzer (35a) | Demander un prix |
|
|
NA330202000 | 1 | Electronics front cover plate sub assy mentzer (35a) | Demander un prix |
|
NA392459000 | 1 | Electronics front cover plate sub assy nord (10a) | Demander un prix |
|
NA329595000 | 2 | Top socket plate | Demander un prix |
|
NA208805000 | 3 | Led charger display pcb mentzer | Demander un prix |
|
NA280002000 | 3 | Led charger display pcb meanwell | Demander un prix |
|
NA208978000 | 4 | Charger lights overlay mentzer & meanwell only | Demander un prix |
|
NA291145000 | 5 | M4 shakeproof washer stainless steel | Demander un prix |
|
NA219688000 | 6 | M4 form a stainless steel washer | Demander un prix |
|
NA219978000 | 7 | M2 x 6mm long pozi pan screw | Demander un prix |
|
NA227564000 | 8 | Plug location clamp | Demander un prix |
|
NA219890000 | 9 | M4 x 12mm long pozi pan stainless steel screw | Demander un prix |
|
NA392502000 | 10 | Cro earth plate | Demander un prix |
|
NA219558000 | 11 | M5 stainless steel nutsert | Demander un prix |
|
NA219735000 | 12 | Grommet | Demander un prix |
|
NA280008000 | 13 | Front cover plate gasket | Demander un prix |
|
NA291165000 | 14 | M4 x 25mm long pozi screw stainless steel | Demander un prix |
|
NA219687000 | 15 | M4 stainless steel nylon insert nut | Demander un prix |
|
NA392456000 | 16 | Electronics front cover spacer plate | Demander un prix |
|
NA291115000 | 17 | M2 x 4.2mm long tappex (071m2) mentzer & meanwell only | Demander un prix |
|
NA230282000 | 18 | Charger assy mentzer (35a) (230v) | Demander un prix |
|
NA230261000 | 18 | Charger assy meanwell (20a) (100-240v) | Demander un prix |
|
NA323332000 | 18 | Charger assy nord (10a) (230v) | Demander un prix |
|
NA901355000 | 18 | Charger Assembly | Demander un prix |
|
NA280005000 | Air deflector mentzer (35a) | Demander un prix | |
|
NA280006000 | Air deflector meanwell (20a) | Demander un prix | |
|
NA329441000 | 19 | Socket cover assembly (120v) | Demander un prix |
