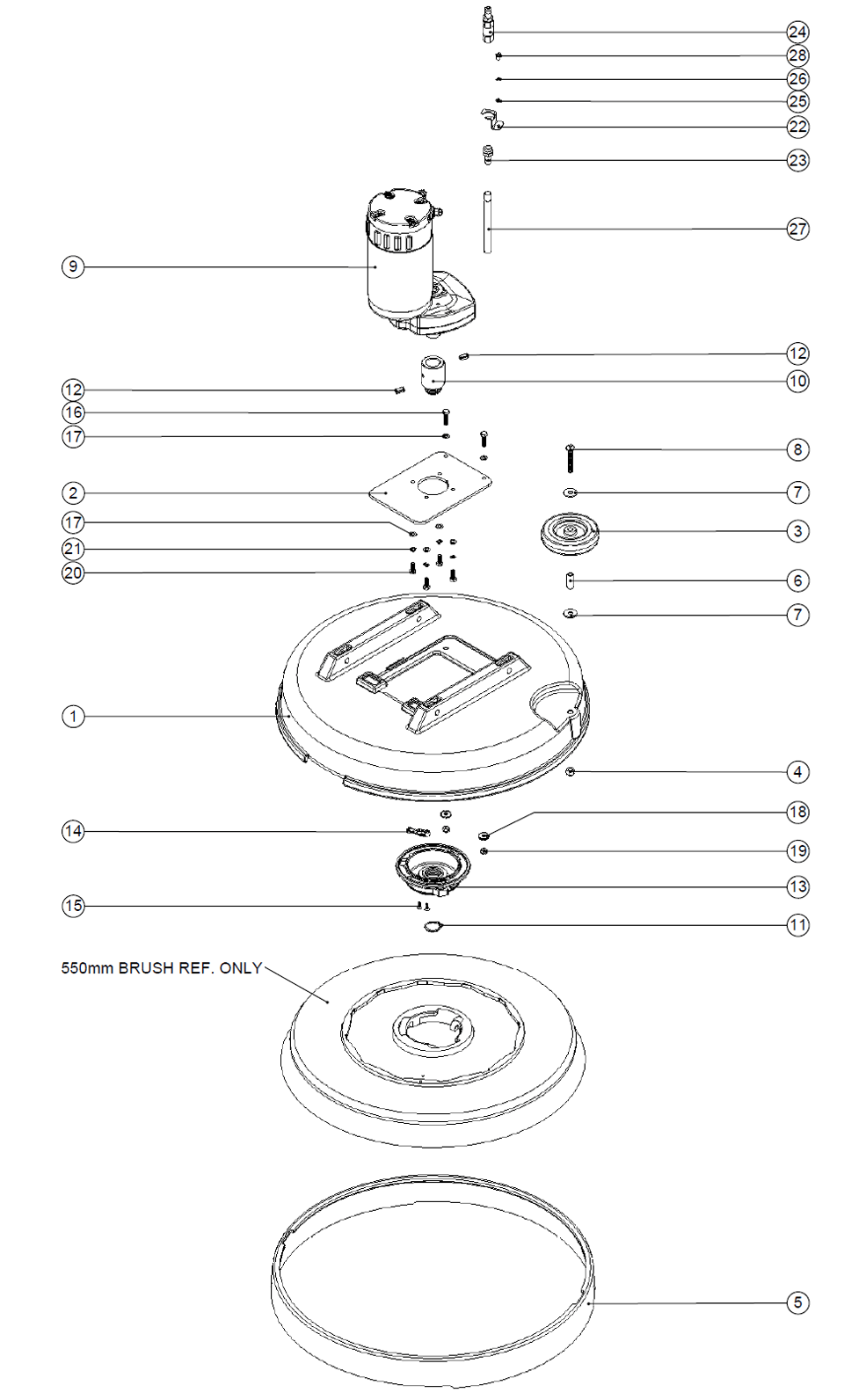

| Image | SKU# | Étiquette schéma | Description | Demander un prix |
|---|---|---|---|---|
|
NA237608000 | 1 | Deck moulding | Demander un prix |
|
NA392404000 | 2 | Motor plate | Demander un prix |
|
NA303942000 | 3 | 100mm dia wheel modified bore (10.1mm diameter) | Demander un prix |
|
NA219639000 | 4 | M8 stainless steel nylon insert nut | Demander un prix |
|
NA237609000 | 5 | 550mm splash skirt | Demander un prix |
|
NA391523000 | 6 | S/s 10mm o/d 8mm i/d x 28mm long | Demander un prix |
|
NA219716000 | 7 | M8 form g stainless steel washer | Demander un prix |
|
NA219922000 | 8 | M8 x 50mm long socket button head stainless steel bolt | Demander un prix |
|
NA205192000 | 9 | Mrp6 ip20 amer motor | Demander un prix |
|
NA208933000 | 10 | Mini ride on drive shaft | Demander un prix |
|
NA230048000 | 11 | 26mm external circlip | Demander un prix |
|
NA291139000 | 12 | 6mm x 16mm stainless steel roll pin | Demander un prix |
|
NA230285000 | 13 | Modified chuck (cro) | Demander un prix |
|
NA237730000 | 14 | Spring clip | Demander un prix |
|
NA219683000 | 15 | No6 x 3/8 inch long pozi pan black countersunk plastite screw | Demander un prix |
|
NA219925000 | 16 | M6 x 25MM LONG STAINLESS STEEL HEX SCREW | Demander un prix |
|
NA219560000 | 17 | M6 form b stainless steel washer | Demander un prix |
|
NA219647000 | 18 | M6 form g stainless steel washer | Demander un prix |
|
NA219642000 | 19 | M6 stainless steel nylon insert nut | Demander un prix |
|
NA219719000 | 20 | M6 x 16mm long hexagonal stainless steel head bolt | Demander un prix |
|
NA219718000 | 21 | Washer.m6.spring.stainless steel | Demander un prix |
|
NA392405000 | 22 | Nrv mounting bracket | Demander un prix |
|
NA208965000 | 23 | 8mm x ¼” bsp male stand pipe nickel plated (17mm a/f) | Demander un prix |
|
NA208966000 | 24 | Non return valve c/w 10mm hose tail nickel plated | Demander un prix |
|
NA219688000 | 25 | M4 form a stainless steel washer | Demander un prix |
|
NA291146000 | 26 | M4 single coil spring washer stainless steel | Demander un prix |
|
NA330206000 | 27 | Motor shaft insert | Demander un prix |
