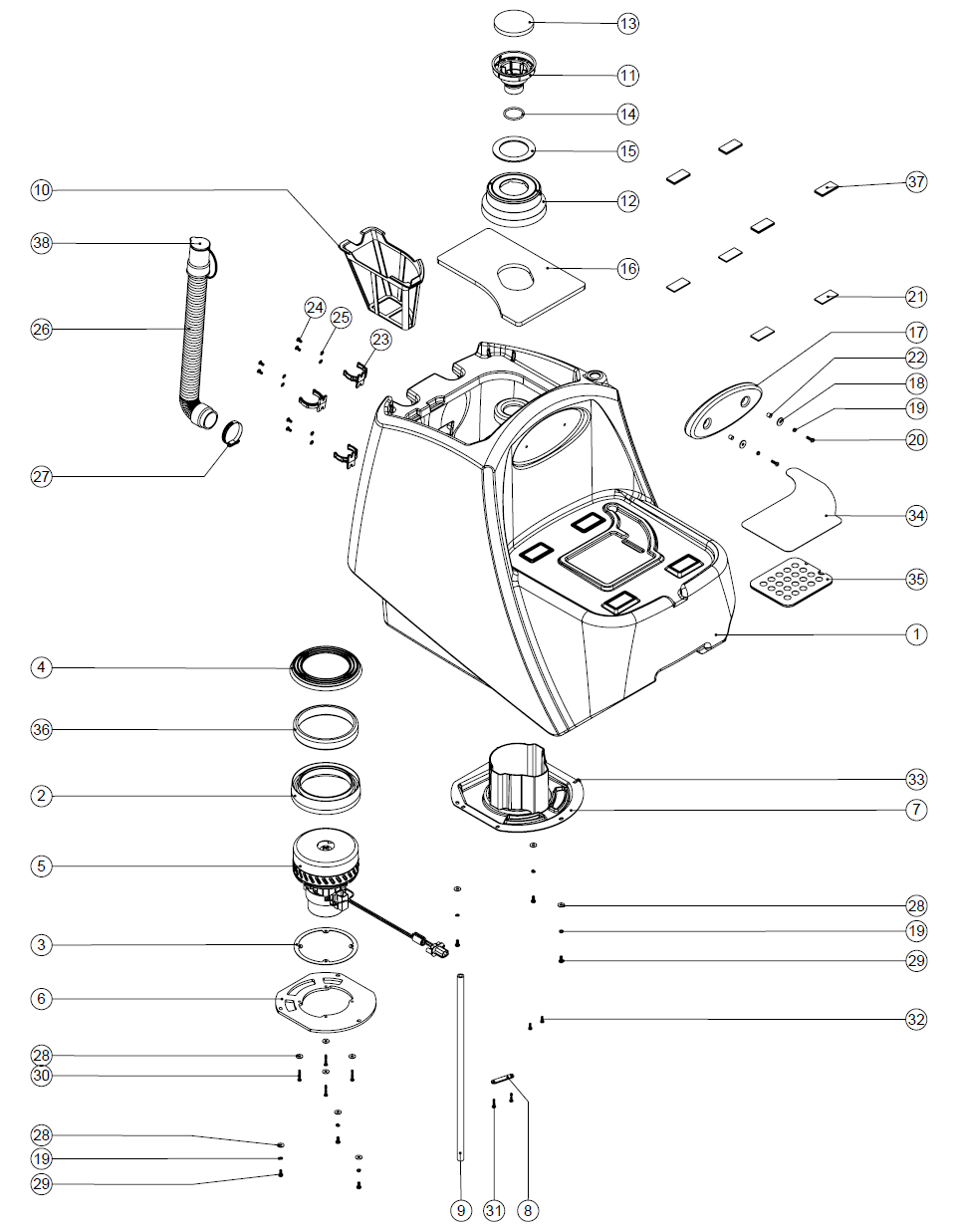

| Image | SKU# | Étiquette schéma | Description | Demander un prix |
|---|---|---|---|---|
|
NA237611000 | 1 | Mini ride on top tank (shelled) | Demander un prix |
|
NA202069000 | 2 | Bottom motor gasket | Demander un prix |
|
NA202139000 | 3 | Motor gasket | Demander un prix |
|
NA202077000 | 4 | Bottom motor gasket | Demander un prix |
|
NA323258000 | 5 | Vac motor 24v with plug and ferrite | Demander un prix |
|
NA392374000 | 6 | Motor mount plate | Demander un prix |
|
NA237620000 | 7 | Exhaust diverter moulding | Demander un prix |
|
NA392496000 | 8 | Wire retainer | Demander un prix |
|
NA207000000 | 10 | Grit filter basket | Demander un prix |
|
NA237618000 | 11 | Air filter moulding | Demander un prix |
|
NA237619000 | 12 | Vac shut off moulding | Demander un prix |
|
NA208861000 | 13 | Air filter | Demander un prix |
|
NA208860000 | 14 | O ring 39mm id x 3.5mm dia. | Demander un prix |
|
NA208858000 | 15 | Lower sealing ring | Demander un prix |
|
NA208980000 | 16 | Cro foam pad | Demander un prix |
|
NA208864000 | 17 | Back pad moulding | Demander un prix |
|
NA291118000 | 18 | M5 stainless steel washer 19mm od | Demander un prix |
|
NA219861000 | 19 | M5 single coil stainless steel washer | Demander un prix |
|
NA219785000 | 20 | M5 x 16mm long button head stainless steel screw | Demander un prix |
|
NA208865000 | 21 | Velcro loop 50 x 25 self adhesive backed | Demander un prix |
|
NA208475000 | 22 | 8mm spacer | Demander un prix |
|
NA237754000 | 23 | 35-38mm hose clip | Demander un prix |
|
NA291004000 | 24 | M5 x 10mm long stainless steel button head screw | Demander un prix |
|
NA291020000 | 25 | M5 stainless steel external shakeproof lock washer | Demander un prix |
|
NA028001700 | 26 | 35mm x 380mm long 3:1 stretch hose c/w cap & strap (short cuff) | Demander un prix |
|
NA219919000 | 27 | 32mm-50mm stainless steel hose clip | Demander un prix |
|
NA219644000 | 28 | M5 form g stainless steel washer | Demander un prix |
|
NA219740000 | 29 | M5 x 12mm long stainless steel pozi pan screw | Demander un prix |
|
NA219369000 | 30 | No8 X 1 INCH LONG POZI PAN STAINLESS STEEL PLASTITE SCREW | Demander un prix |
|
NA219568000 | 31 | No8 x 3/4 inch long pozi pan stainless steel screw | Demander un prix |
|
NA219569000 | 32 | No8.1/2 inch. Lg.pozi-pan.screw.stainless steel.plastite | Demander un prix |
|
NA220007000 | 33 | Black cable tie | Demander un prix |
|
NA208983000 | 34 | Seat switch flexible membrane | Demander un prix |
|
NA323290000 | 35 | Pressure pad | Demander un prix |
|
NA208981000 | 36 | Motor spacer | Demander un prix |
|
NA280003000 | 37 | 50mm x 25mm back to back (hook & loop) | Demander un prix |
|
NA900903000 | 38 | Hose closure replacement kit (35mm-38mm stretch hose) spare part | Demander un prix |
