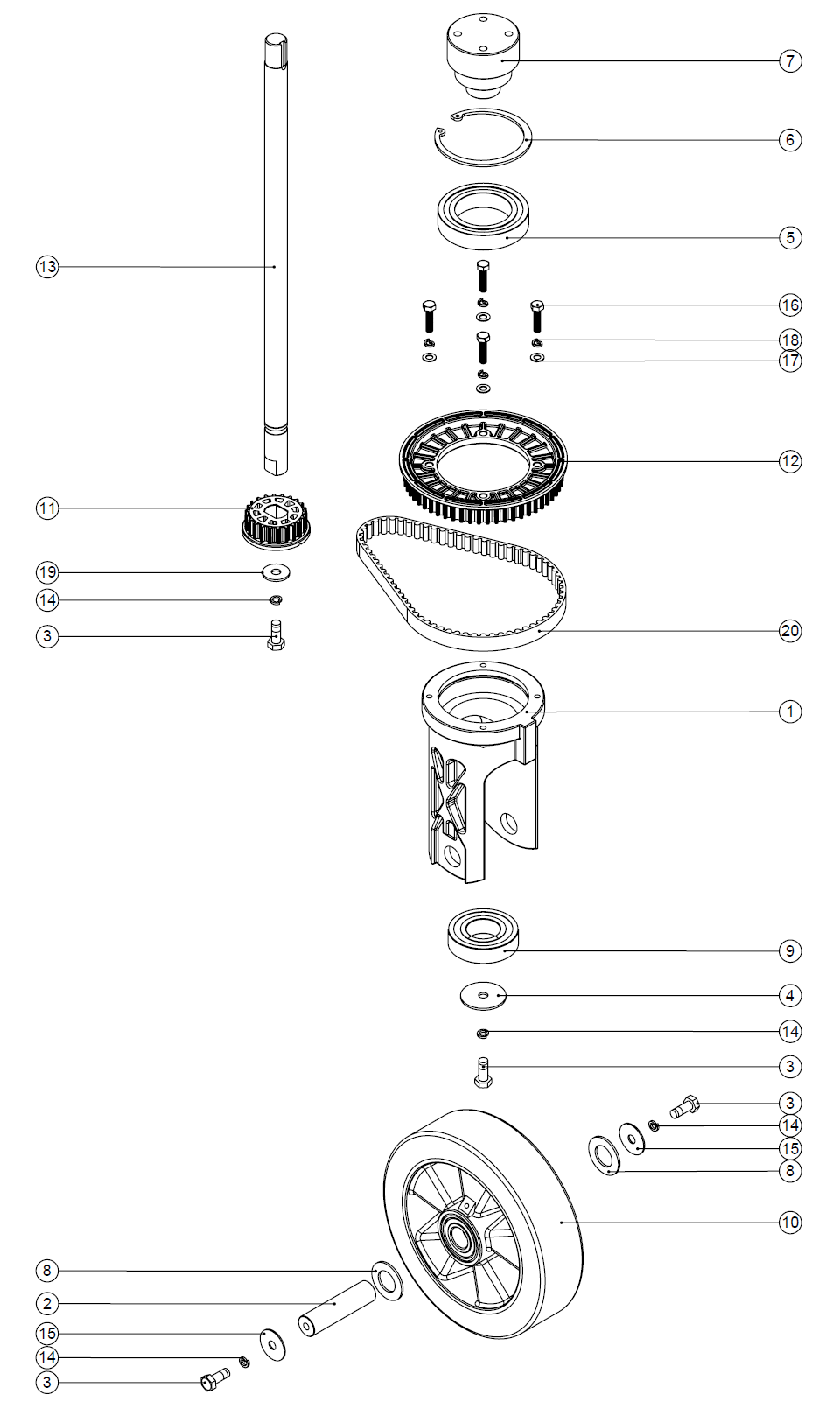

| Image | SKU# | Étiquette schéma | Description | Demander un prix |
|---|---|---|---|---|
|
NA208869000 | 1 | Steering yoke | Demander un prix |
|
NA291110000 | 2 | Axle 20mm od x 77mm long | Demander un prix |
|
NA291140000 | 3 | M8 x 20mm lg hex head screw stainless steel c/w threadlock | Demander un prix |
|
NA392381000 | 4 | Steering washer | Demander un prix |
|
NA208871000 | 5 | Bearing i/d50mm o/d80mm | Demander un prix |
|
NA208872000 | 6 | 80mm internal circlip | Demander un prix |
|
NA291109000 | 7 | Steering spigot | Demander un prix |
|
NA291162000 | 8 | M20 form b stainless steel washer | Demander un prix |
|
NA208878000 | 9 | Bearing i/d30mm o/d62mm | Demander un prix |
|
NA204120000 | 10 | Wicke 200 x 50mm alu wheel | Demander un prix |
|
NA237679000 | 11 | Small pulley 22th | Demander un prix |
|
NA237680000 | 12 | Large pulley 56th | Demander un prix |
|
NA291108000 | 13 | Lower steering shaft | Demander un prix |
|
NA219898000 | 14 | M8 single coil stainless steel washer | Demander un prix |
|
NA219877000 | 15 | M8 x 30 stainless steel washer | Demander un prix |
|
NA219925000 | 16 | M6 x 25MM LONG STAINLESS STEEL HEX SCREW | Demander un prix |
|
NA219560000 | 17 | M6 form b stainless steel washer | Demander un prix |
|
NA219718000 | 18 | Washer.m6.spring.stainless steel | Demander un prix |
|
NA219716000 | 19 | M8 form g stainless steel washer | Demander un prix |
|
NA208897000 | 20 | Belt (gates-gt3 560 8mgt 15mm) | Demander un prix |
