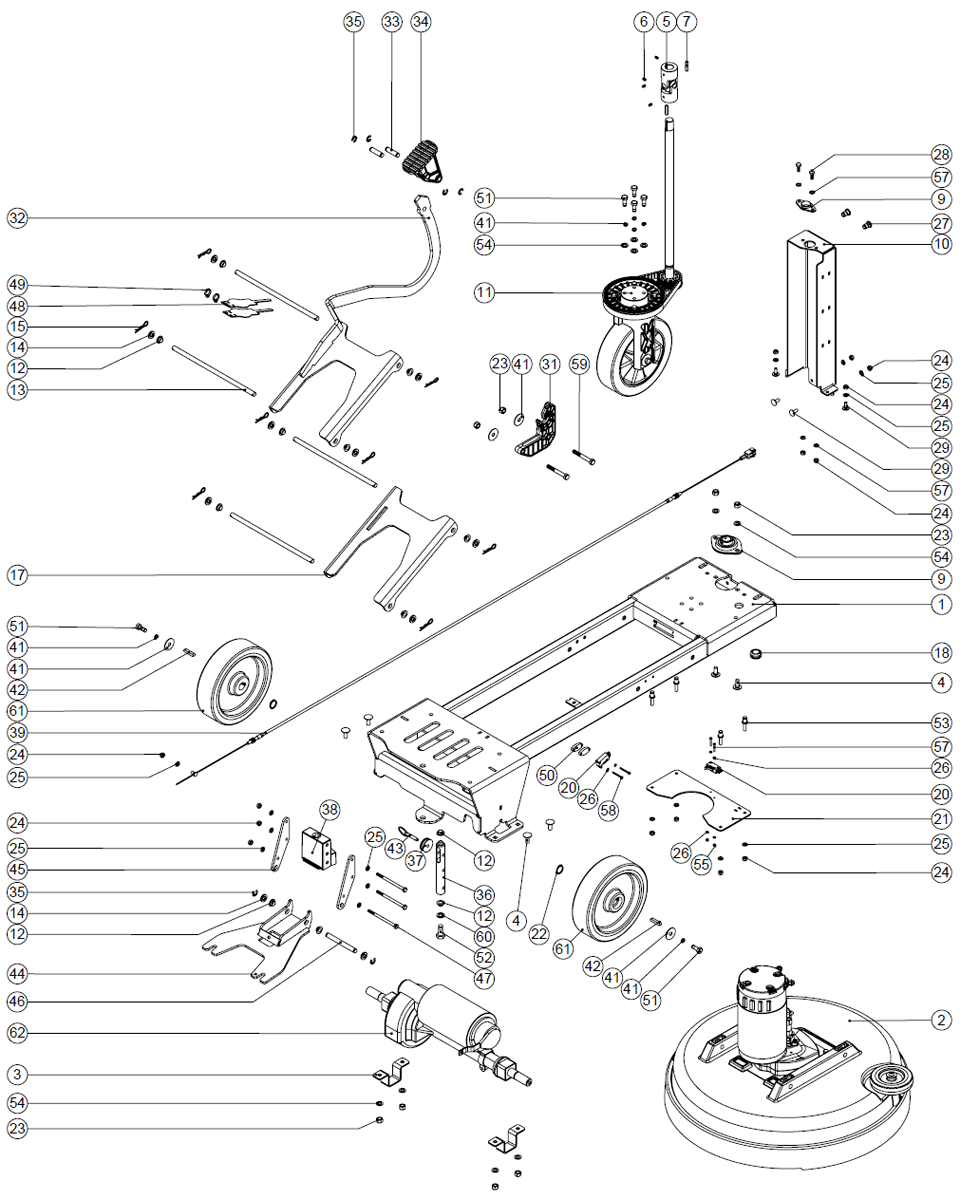

| Image | SKU# | Étiquette schéma | Description | Demander un prix |
|---|---|---|---|---|
|
NA304515000 | 1 | Mini ride on chassis weld assembly | Demander un prix |
|
NA599468000 | 2 | Mini ride on deck assembly | Demander un prix |
|
NA329780000 | 3 | Transaxle clamp | Demander un prix |
|
NA291104000 | 4 | M8 x 20 coach bolt s/s | Demander un prix |
|
NA206936000 | 5 | Universal joint | Demander un prix |
|
NA219784000 | 6 | M5 x 8mm long blackodised grub screw | Demander un prix |
|
NA208884000 | 9 | 2 part pressed flange bearing | Demander un prix |
|
NA208110000 | 9 | Igus (r) 2 bolt plain bearing 20mm i/d | Demander un prix |
|
NA392418000 | 10 | Steering column support brkt | Demander un prix |
|
NA208330000 | 12 | Igus bearing (gfm 101206) | Demander un prix |
|
NA291101000 | 13 | Pivot rod | Demander un prix |
|
NA219964000 | 14 | Nylon washer (18mm o/d x 10.4mm i/d x 3mm thick) | Demander un prix |
|
NA291102000 | 15 | Small r pin (s masters 89100 ss) | Demander un prix |
|
NA392393000 | 17 | Deck link arm | Demander un prix |
|
NA208143000 | 18 | 20mm grommet x 6mm panel thickness | Demander un prix |
|
NA208986000 | 20 | Ip rated microswitch with roller | Demander un prix |
|
NA392398000 | 21 | Switch plate | Demander un prix |
|
NA219889000 | 22 | 19mm heavy duty circlip | Demander un prix |
|
NA219639000 | 23 | M8 stainless steel nylon insert nut | Demander un prix |
|
NA219642000 | 24 | M6 stainless steel nylon insert nut | Demander un prix |
|
NA219870000 | 25 | M6 form a washer stainless steel | Demander un prix |
|
NA219501000 | 26 | M3 form a stainless steel washer | Demander un prix |
|
NA219750000 | 27 | M8 headed nutsert | Demander un prix |
|
NA219719000 | 28 | M6 x 16mm long hexagonal stainless steel head bolt | Demander un prix |
|
NA291103000 | 29 | M6 x 16 coach bolt s/s | Demander un prix |
|
NA237677000 | 31 | Latch moulding | Demander un prix |
|
NA304513000 | 32 | Deck link & pedal arm weld assy | Demander un prix |
|
NA291097000 | 33 | 38 x10mm bar (e type clip) | Demander un prix |
|
NA237678-000 | 34 | Pedal moulding | Demander un prix |
|
NA291107000 | 35 | E type clip (to suit 10mm bar) | Demander un prix |
|
NA291100000 | 36 | Squeegee pivot bar | Demander un prix |
|
NA208898000 | 37 | Nylon pulley 32mm od | Demander un prix |
|
NA237676000 | 38 | Multi block moulding | Demander un prix |
|
NA291099000 | 39 | Cro 8055 sq. Lift cable | Demander un prix |
|
NA219877000 | 41 | M8 x 30 stainless steel washer | Demander un prix |
|
NA219898000 | 41 | M8 single coil stainless steel washer | Demander un prix |
|
NA206744000 | 42 | 6mm x 6mm x 32mm feather key | Demander un prix |
|
NA206953000 | 43 | Detent pins | Demander un prix |
|
NA304516000 | 44 | Moose plate weld assembly | Demander un prix |
|
NA392436000 | 45 | Pivot side plate | Demander un prix |
|
NA291098000 | 46 | 94 x10mm bar (e type clip) | Demander un prix |
|
NA291021000 | 47 | M6 x 90mm long stainless steel hexagonal head bolt | Demander un prix |
|
NA392497000 | 48 | Switch spring plate | Demander un prix |
|
NA220007000 | 49 | Black cable tie | Demander un prix |
|
NA392498000 | 50 | 6mm switch spacer | Demander un prix |
|
NA291140000 | 51 | M8 x 20mm lg hex head screw stainless steel c/w threadlock | Demander un prix |
|
NA291141000 | 52 | M10 x 25mm lg hex head screw stainless steel c/w threadlock | Demander un prix |
|
NA291116000 | 53 | M6 x 25 rivet stud | Demander un prix |
|
NA219578000 | 54 | M8 form a stainless steel washer | Demander un prix |
|
NA291154000 | 55 | M3 nylon insert nut stainless steel | Demander un prix |
|
NA291155000 | 57 | M3 x 20mm long pozi pan screw stainless steel | Demander un prix |
|
NA219560000 | 57 | M6 form b stainless steel washer | Demander un prix |
|
NA291156000 | 58 | M3 x 30mm long pozi pan screw stainless steel | Demander un prix |
|
NA291157000 | 59 | M8 x 60mm long hex bolt stainless steel | Demander un prix |
|
NA291163000 | 60 | Nylon washer 18mm o/d x 10.5mm i/d x 2mm | Demander un prix |
|
NA901209000 | 61 | 200 x 50 traction wheel (plastic) | Demander un prix |
|
NA323254000 | 62 | 530mm asi transaxle 21:1 high speed (mk400) 310070 chain tail brake kit | Demander un prix |
