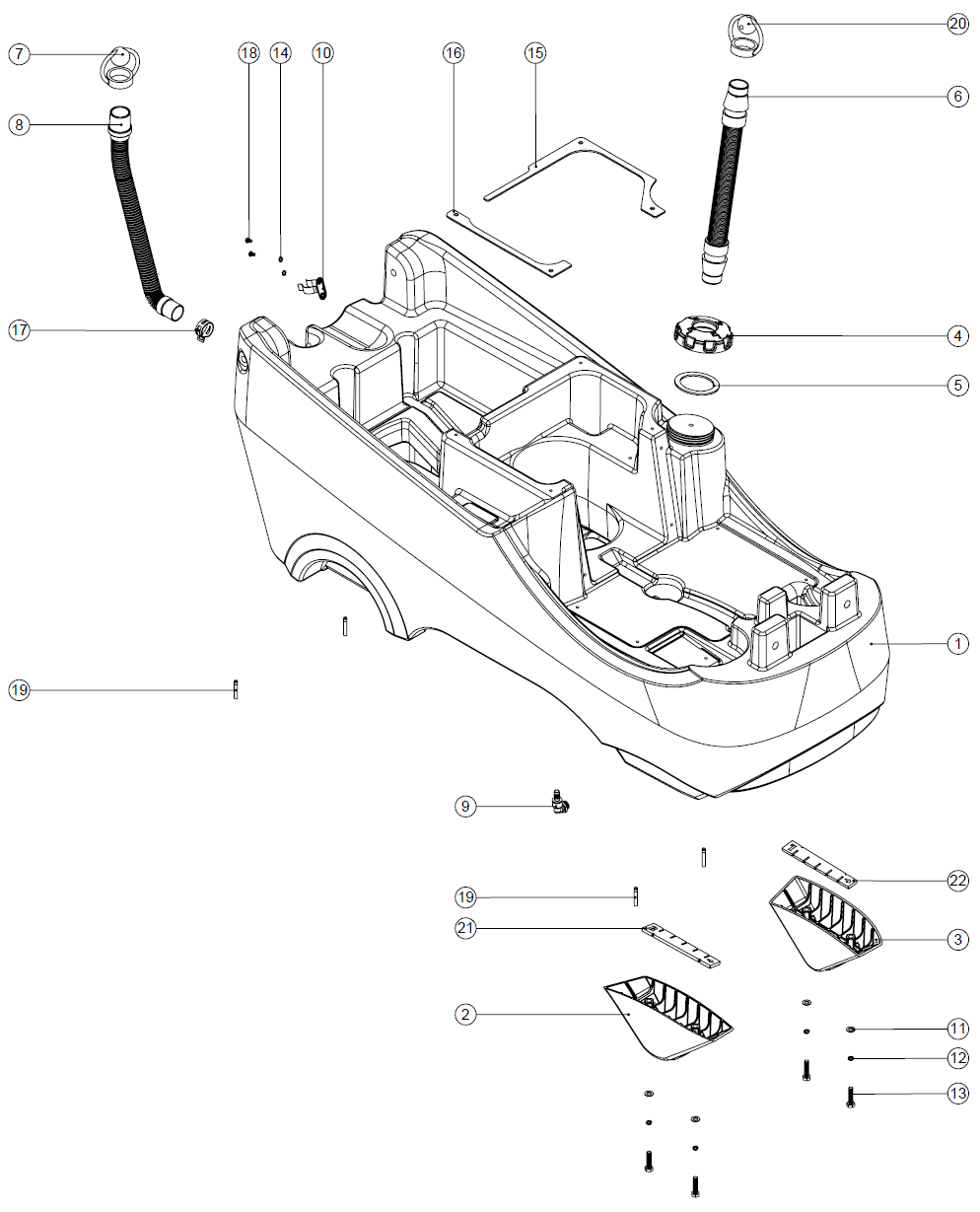

| Image | SKU# | Étiquette schéma | Description | Demander un prix |
|---|---|---|---|---|
|
NA237682000 | 1 | Mini ride on bottom tank | Demander un prix |
|
NA237684000 | 2 | Bottom tank scuff moulding rhs | Demander un prix |
|
NA237685000 | 3 | Bottom tank scuff moulding lhs | Demander un prix |
|
NA237174000 | 4 | Filler cap with filler hose hole | Demander un prix |
|
NA208564000 | 5 | Filler cap sealing ring | Demander un prix |
|
NA206842000 | 6 | 420mm long black stretch hose c/w cuffs | Demander un prix |
|
NA206111000 | 7 | Hose closure | Demander un prix |
|
NA208938000 | 8 | 25mm x 455mm lg dump hose | Demander un prix |
|
NA219578000 | 11 | M8 form a stainless steel washer | Demander un prix |
|
NA219898000 | 12 | M8 single coil stainless steel washer | Demander un prix |
|
NA291112000 | 13 | M8 x 40 long hex bolt stainless steel | Demander un prix |
|
NA291020000 | 14 | M5 stainless steel external shakeproof lock washer | Demander un prix |
|
NA203027000 | 15 | Cro pump plate gasket lh | Demander un prix |
|
NA203028000 | 16 | Cro pump plate gasket rh | Demander un prix |
|
NA208471000 | 17 | Constant tension clip | Demander un prix |
|
NA291004000 | 18 | M5 x 10mm long stainless steel button head screw | Demander un prix |
|
NA291158000 | 19 | M6 x 40mm long grub screw stainless steel c/w threadlock | Demander un prix |
|
NA304439000 | 20 | Processed hose closure | Demander un prix |
|
NA392464000 | 21 | Rhs scuff moulding spacer | Demander un prix |
|
NA392465000 | 22 | Lhs scuff moulding spacer | Demander un prix |
