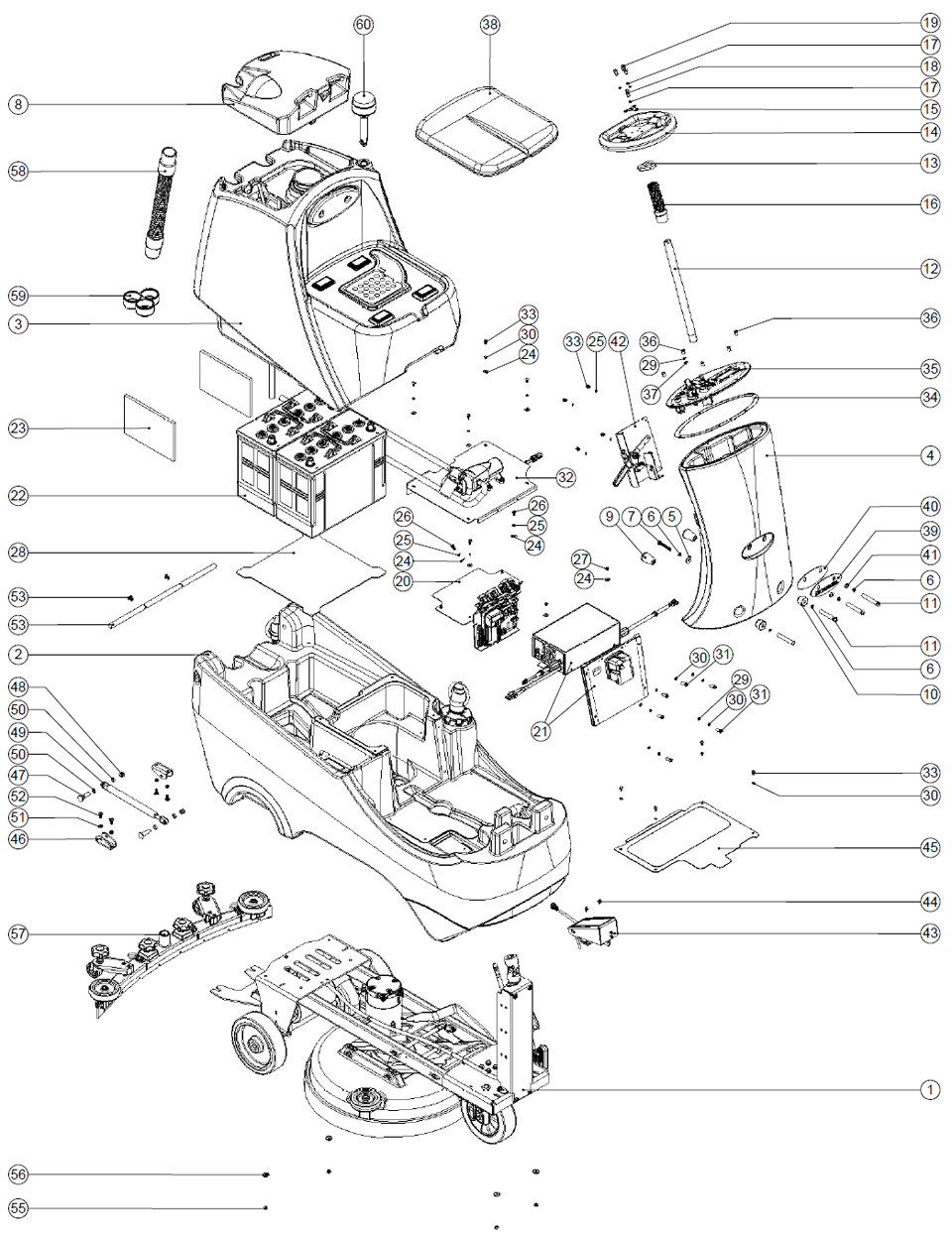

| Image | SKU# | Étiquette schéma | Description | Demander un prix |
|---|---|---|---|---|
|
NA599530000 | 1 | Mini ride on chassis general assembly see drw-15518 | Demander un prix |
|
NA599464000 | 3 | Mini ride on top tank assembly see drw-15376 | Demander un prix |
|
NA237683000 | 4 | Mini ride on steering column | Demander un prix |
|
NA219716000 | 5 | M8 form g stainless steel washer | Demander un prix |
|
NA219898000 | 6 | M8 single coil stainless steel washer | Demander un prix |
|
NA219922000 | 7 | M8 x 50mm long socket button head stainless steel bolt | Demander un prix |
|
NA208903000 | 9 | Tapered bush (tapped) | Demander un prix |
|
NA208904000 | 10 | Tapered bush (clearance) | Demander un prix |
|
NA291142000 | 11 | M8 x 70mm lg socket button head screw stainless steel | Demander un prix |
|
NA208901000 | 12 | Upper steering shaft | Demander un prix |
|
NA404214000 | 13 | Steering wheel plate | Demander un prix |
|
NA208900000 | 14 | Gsl 255mm steeering wheel | Demander un prix |
|
NA392500000 | 15 | Steering wheel top plate | Demander un prix |
|
NA380000000 | 16 | Steering shaft cover hose 135mm long 208466 cut to length | Demander un prix |
|
NA219718000 | 17 | Washer.m6.spring.stainless steel | Demander un prix |
|
NA291144000 | 18 | M6 x 20mm lg hex head screw stainless steel c/w threadlock | Demander un prix |
|
NA291143000 | 19 | M6 x 16mm lg socket button head screw stainless steel c/w threadlock | Demander un prix |
|
NA230262000 | 22 | Sonnenschein 120ah battery cro 8055/120t | Demander un prix |
|
NA205112000 | 100 amp/hour replacement battery (c/w packaging for 230138 battery) 100ah version | Demander un prix | |
|
NA208645000 | 23 | Foam battery spacer | Demander un prix |
|
NA219644000 | 24 | M5 form g stainless steel washer | Demander un prix |
|
NA219861000 | 25 | M5 single coil stainless steel washer | Demander un prix |
|
NA219740000 | 26 | M5 x 12mm long stainless steel pozi pan screw | Demander un prix |
|
NA219633000 | 27 | M5 stainless steel nylon insert nut | Demander un prix |
|
NA392501000 | 28 | Battery plate | Demander un prix |
|
NA219355000 | 29 | M5 form a stainless steel washer | Demander un prix |
|
NA291084000 | 30 | Washer.m5.shakeproof.stainless steel | Demander un prix |
|
NA291168000 | 31 | M5 x 20mm long socket button head stainless steel screw | Demander un prix |
|
NA291004000 | 33 | M5 x 10mm long stainless steel button head screw | Demander un prix |
|
NA203040000 | 34 | Cro control panel gasket (lower) | Demander un prix |
|
NA291160000 | 36 | M5 x 12mm long stainless steel button head screw | Demander un prix |
|
NA219462000 | 37 | Rubber washer | Demander un prix |
|
NA208862000 | 38 | Seat moulding | Demander un prix |
|
NA392433000 | 39 | Numatic name plate | Demander un prix |
|
NA392432000 | 40 | Black name plate spacer | Demander un prix |
|
NA219578000 | 41 | M8 form a stainless steel washer | Demander un prix |
|
NA330211000 | 43 | Accelerator pedal assy (edac connector) see drw-18638 | Demander un prix |
|
NA291135000 | 44 | M5 x 10mm long stainless steel pozi pan sems screw | Demander un prix |
|
NA392455000 | 46 | Gas strut bracket - carriage bolt | Demander un prix |
|
NA291120000 | 47 | M8 x 40 carriage bolt s/s | Demander un prix |
|
NA219639000 | 48 | M8 stainless steel nylon insert nut | Demander un prix |
|
NA208907000 | 49 | Gas strut c/w end fittings 100nm | Demander un prix |
|
NA291121000 | 50 | Nylon spacer i/d 8.2mm x o/d 12mm x 5mm lg | Demander un prix |
|
NA219870000 | 51 | M6 form a washer stainless steel | Demander un prix |
|
NA219646000 | 52 | M6 x 16mm long pozi pan stainless steel screw traction machines only | Demander un prix |
|
NA208902000 | 53 | Mini ride on pivot bar | Demander un prix |
|
NA208072000 | 53 | Plastic fixing ring | Demander un prix |
|
NA219642000 | 55 | M6 stainless steel nylon insert nut | Demander un prix |
|
NA219647000 | 56 | M6 form g stainless steel washer | Demander un prix |
|
NA599469000 | 57 | 650 twintec aluminium floor tool (38mm hose) | Demander un prix |
|
NA021306100 | 58 | Suction hose 1330mm x ø38mm | Demander un prix |
|
NA237718000 | 59 | Hose guide | Demander un prix |
